Road Stream Crossing Site GTBAY_LEE042
West Bay Shoreline & Tributaries Watershed, Unnamed
M-22
Suttons Bay Twp,
Leelanau County
Information collected by:
Site Location
GPS Coordinates: 44.97698723
, -85.65129437
T30N
R11W
Sec 28
Owned by Local Government
Private
Private
Fish Passability 0.9
Total Erosion: 0.006 tons/year
Severity: Minor
Year Inventoried: 2020

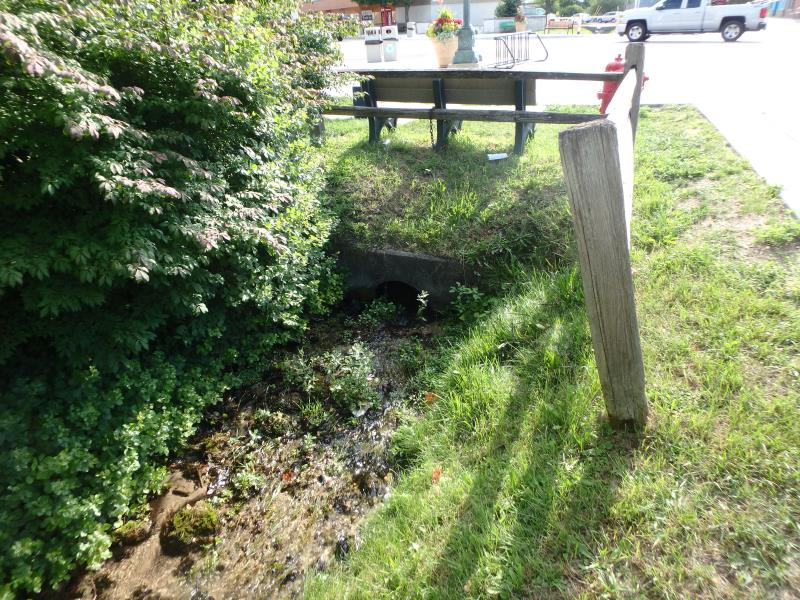

Inlet

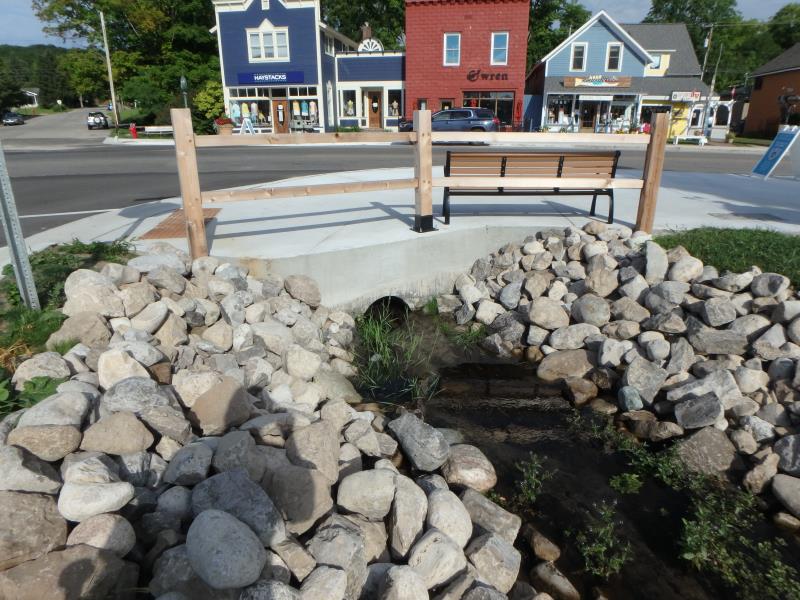

Outlet

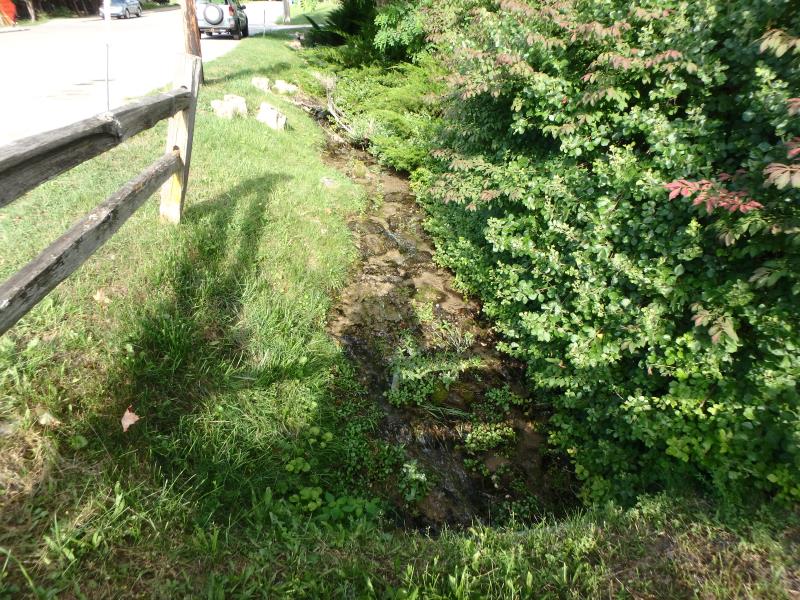

Upstream Conditions

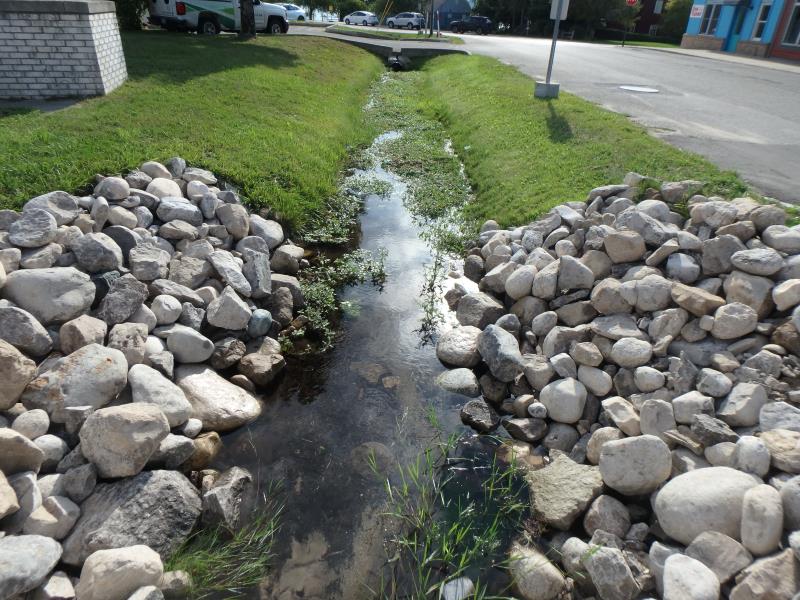

Downstream Conditions

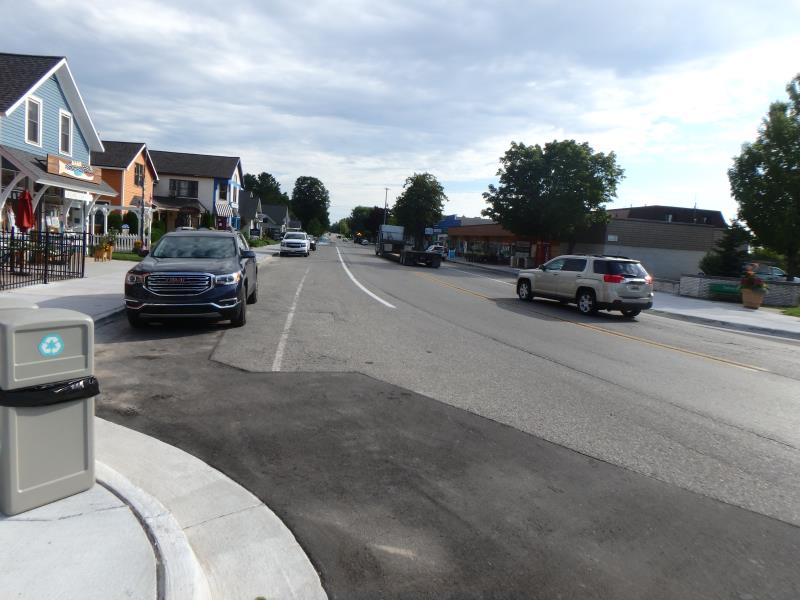

Road Approach - Left

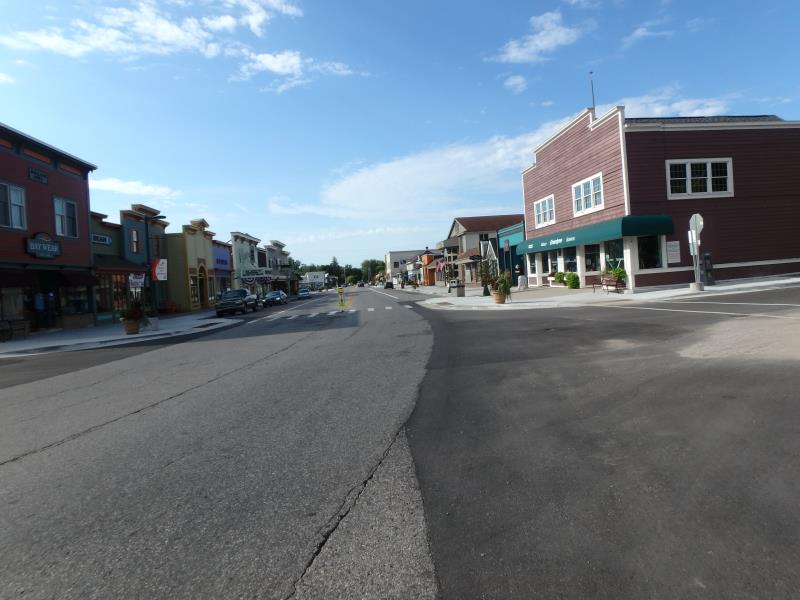

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Headwall
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 117 ft.
, Width 2 ft.
, Height 2 ft.
Structure Inlet
Water Depth: 0.4 ft.
Embedded Depth of Structure: 0.6 ft.
Water Velocity*: 1.6 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0.8 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 4.5 ft.
Wetted Width: 2 ft.
Water Velocity: 0.5 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
State Road
Road Condition: Good
Road Width at Culvert: 72.7 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2 ft.
Slope: 1:1.5
Downstream
Fill Depth: 2.9 ft.
Slope: Vertical
Approaches
Left Approach
Length: 25 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.003 tons/year
Right Approach
Length: 25 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.003 tons/year
Erosion Information
Total Erosion at Crossing: 0.006 tons/year
Summary Information
Fish Passability 0.9
