Road Stream Crossing Site GTBAY_LEE077
West Bay Shoreline & Tributaries Watershed, Lee Creek
Lee Point Rd
Bingham Twp,
Leelanau County
Information collected by:
Site Location
GPS Coordinates: 44.93360946
, -85.60799137
T29N
R11W
Sec 11
Owned by Private
Fish Passability 0.5
Total Erosion: 0.187 tons/year
Severity: Moderate
Year Inventoried: 2020

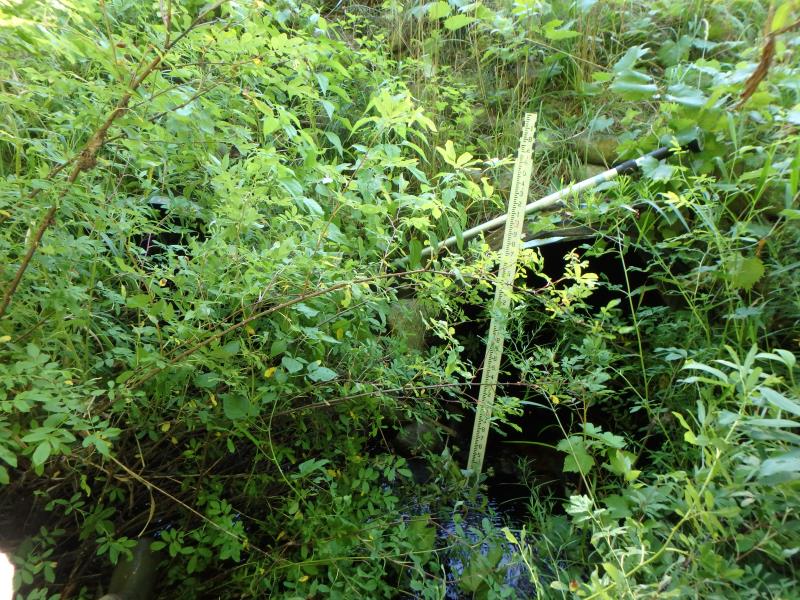

Inlet

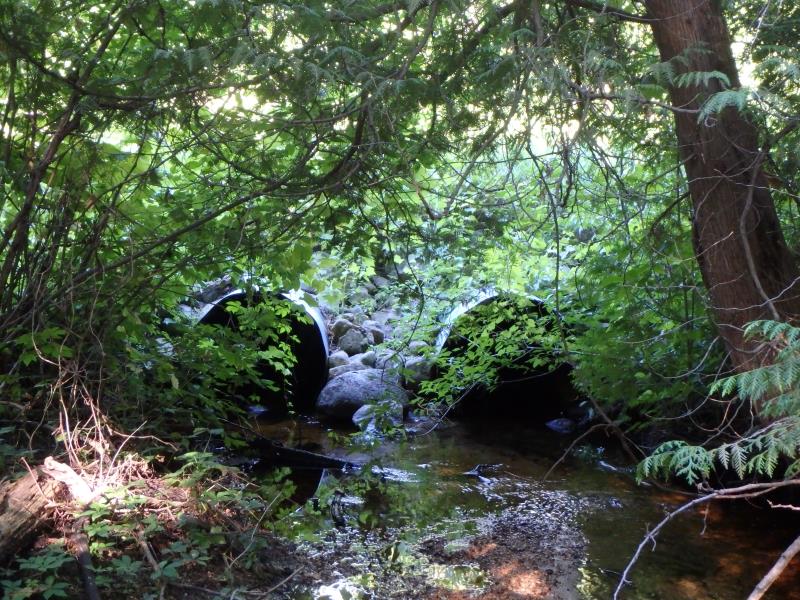

Outlet

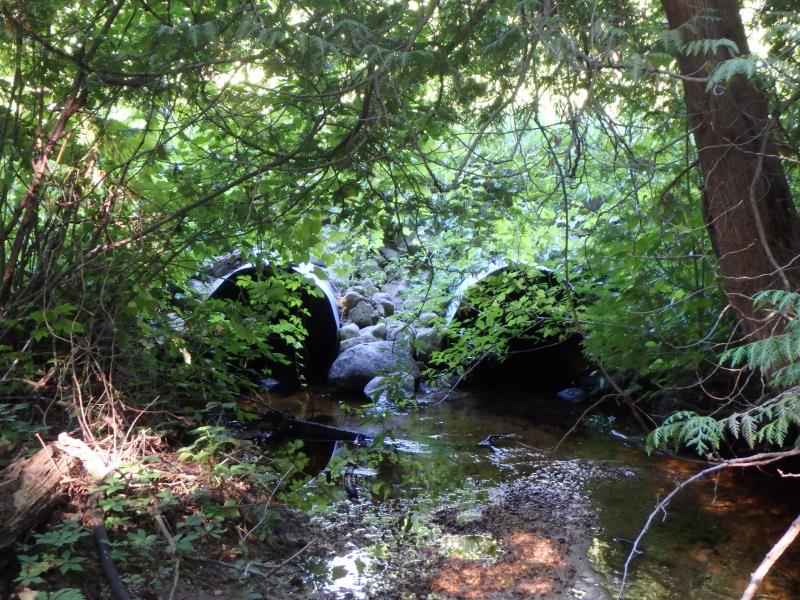

Outlet

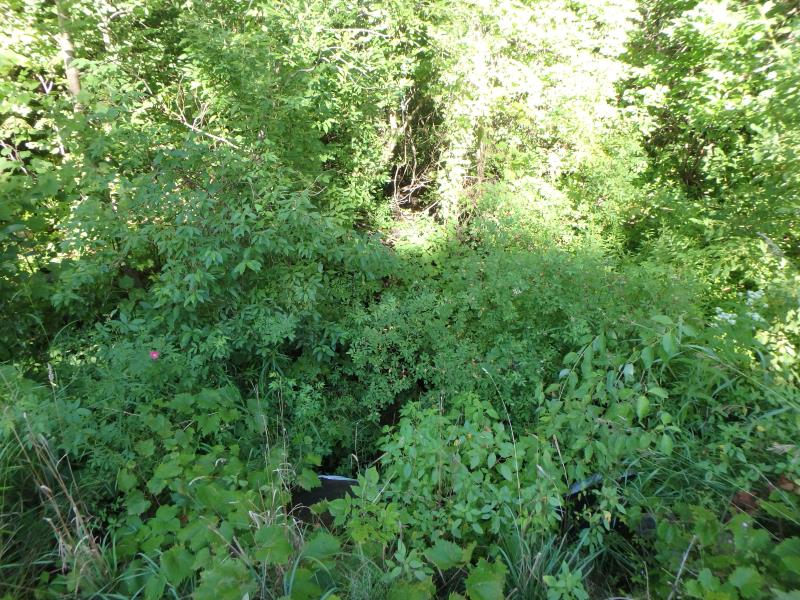

Upstream Conditions

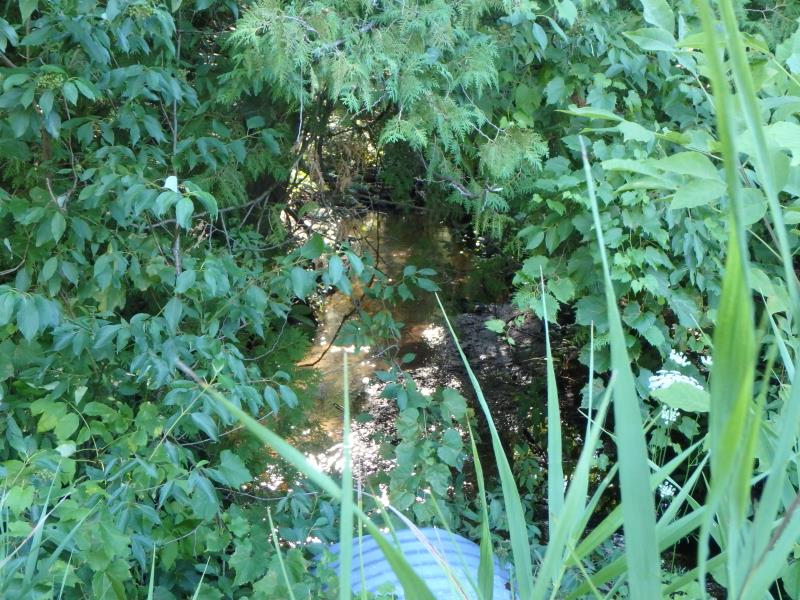

Downstream Conditions

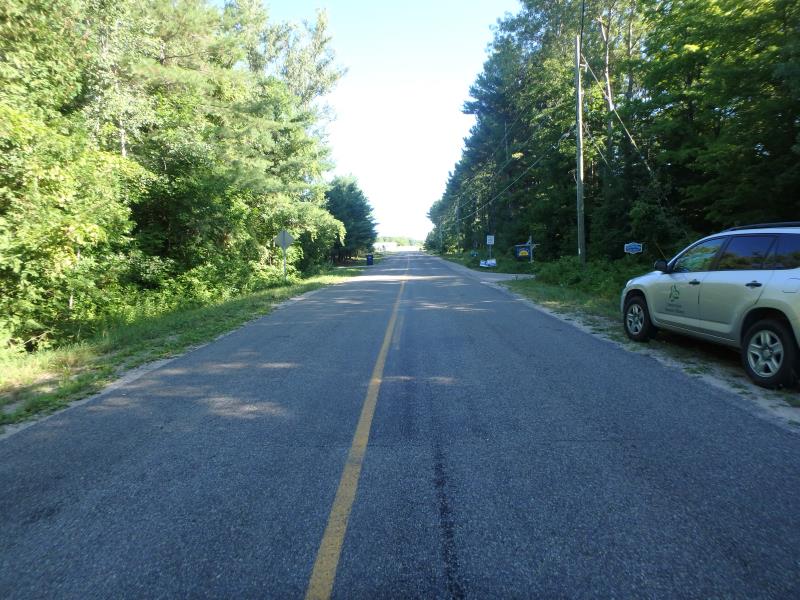

Road Approach - Left

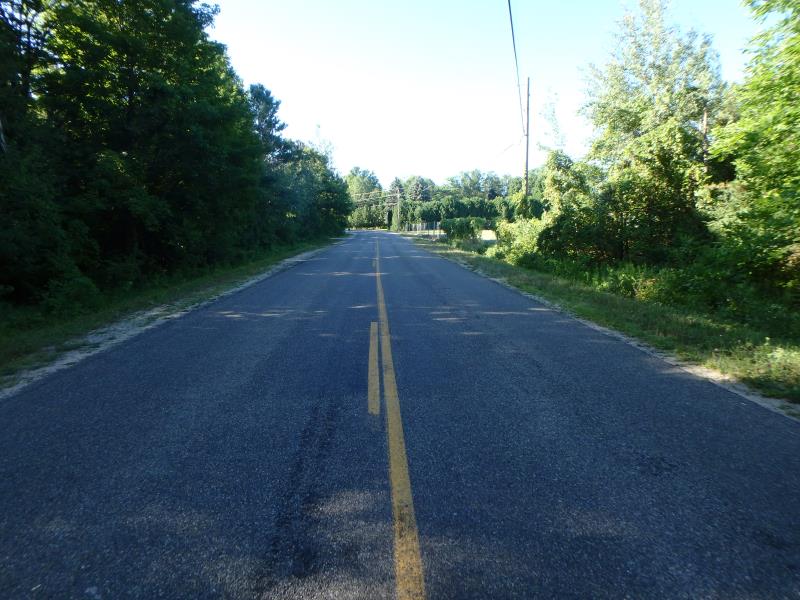

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: New
Multiple Culverts/Spans | ||||
Culvert/Span | Width | Length | Height | Material |
1 |
3 ft. |
49.9 ft. |
3 ft. |
Metal |
2 |
3 ft. |
49.5 ft. |
3 ft. |
Metal |
Structure Interior: corrugated
Dimensions of Structure: Length 50 ft.
, Width 3 ft.
, Height 3 ft.
Structure Inlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.4 ft./sec.
Structure Outlet
Water Depth: 0.5 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.5 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface
(with Meter)
Additional Comments
Water depth and velocity recoreded for culvert #2
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 12.1 ft.
Wetted Width: 5.6 ft.
Water Velocity: 1 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved
Town Road
Road Condition: Fair
Road Width at Culvert: 22.4 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 3.2 ft.
Slope: 1:1.5
Downstream
Fill Depth: 2.1 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1851 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0019 tons/year
Erosion Information
Total Erosion at Crossing: 0.187 tons/year
Summary Information
Fish Passability 0.5
Fish Passage is an area of concern for this site.
No flow
These non-native species were observerd at this site: Spotted Knapweed, Queen Anne's Lace
