Road Stream Crossing Site GTBAY_MCT032

Mitchell Creek Watershed, Unnamed Tributary to Mitchell Creek
Woodcreek Blvd
Acme Twp, Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.73146 , -85.564105
T27N R10W Sec 18
Owned by Private
Total Erosion: 0.0055 tons/year
Severity: Minor
Year Inventoried: 2020

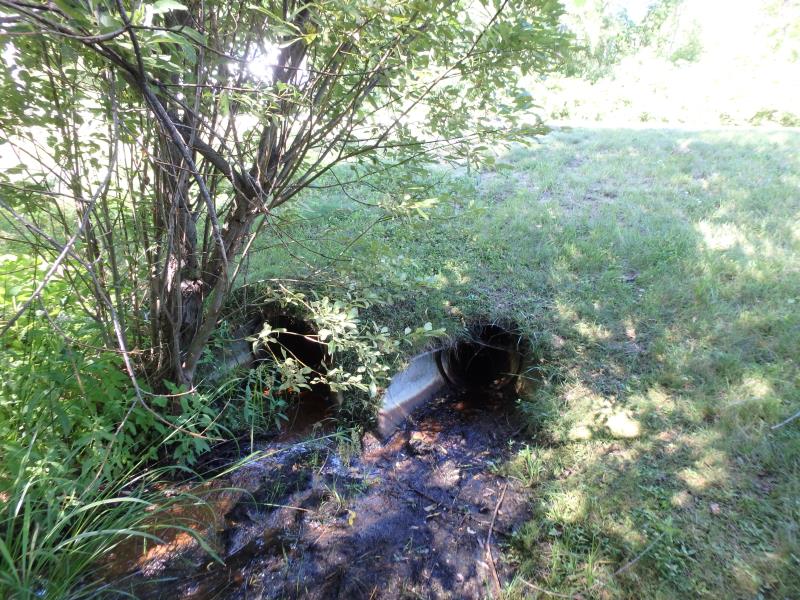

Inlet

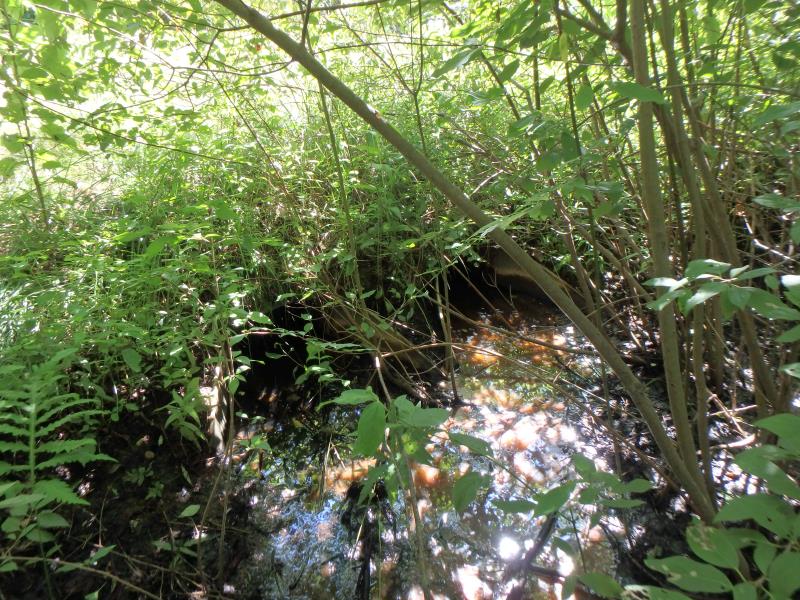

Outlet

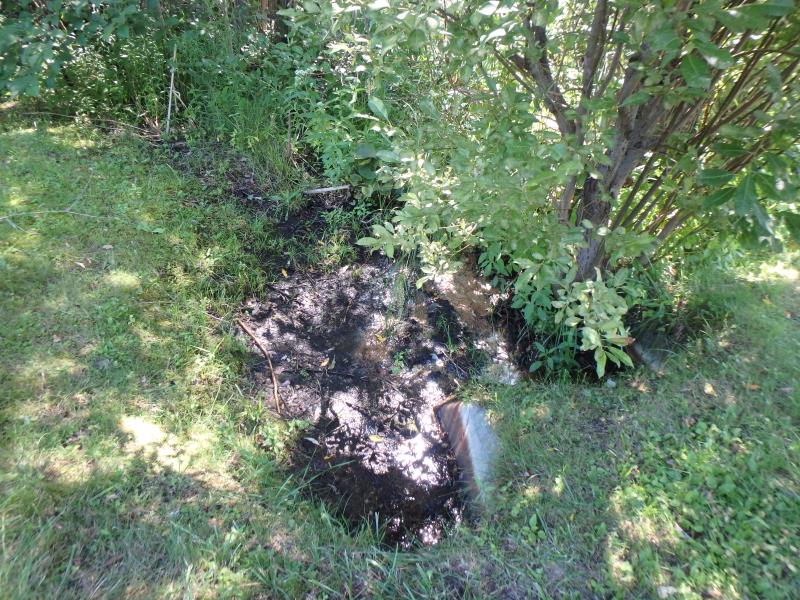

Upstream Conditions

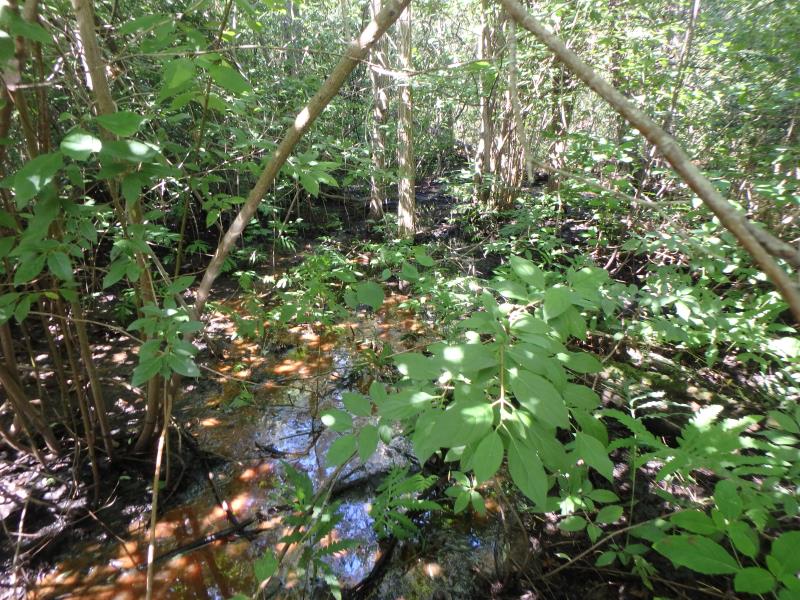

Downstream Conditions

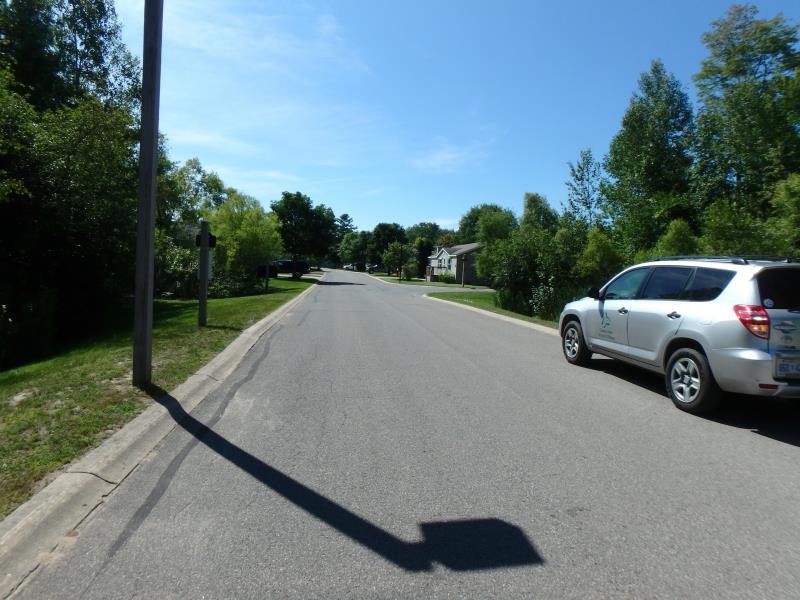

Road Approach - Left

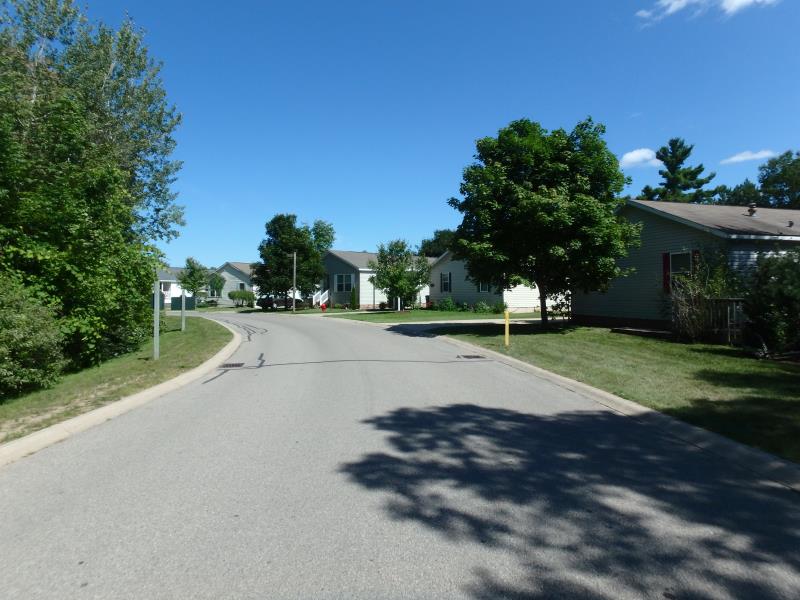

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Apron
Outlet Type: Outlet Apron
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Fair
Multiple Culverts/Spans
Culvert/Span
Width
Length
Height
Material
1
1.3 ft.
51 ft.
1.3 ft.
Metal
2
1.3 ft.
51 ft.
1.3 ft.
Metal
Structure Interior: corrugated
Dimensions of Structure: Length 51 ft. , Width 1.3 ft. , Height 1.3 ft.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Structure Outlet
Water Depth: 0.1 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0 ft./sec.
*Water Velocities were measured at the Surface (with Meter)
Stream Information
Stream Flow: None
Dominant Substrate: Organics
Road Information
Paved Private Road
Road Condition: Good
Road Width at Culvert: 22 ft.
Location of Low Point: Other
Runoff Path: Roadway
Embankments
Upstream
Fill Depth: 2.9 ft.
Slope: Less than 1:2
Downstream
Fill Depth: 3 ft.
Slope: Less than 1:2
Approaches
Left Approach
Length: 25 ft.
Slope: 1% to 5%
Vegetation: Partial
LS Factor: 0.25
Erosion: 0.0045 tons/year
Right Approach
Length: 25 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0009 tons/year
Erosion Information
Total Erosion at Crossing: 0.0055 tons/year
