Road Stream Crossing Site GTBAY_S418

Boardman River Watershed, Twenty-Two Creek
Mayfield Rd
Union Twp, Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.62769 , -85.38701
T26N R9W Sec 27
Owned by State
Fish Passability 0.9
Total Erosion: 0.376 tons/year
Severity: Minor
Year Inventoried: 2020

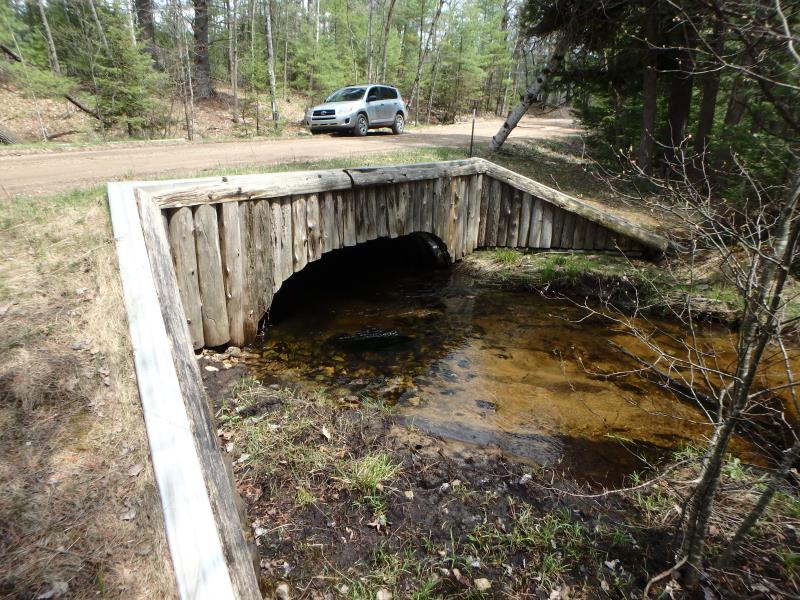

Inlet

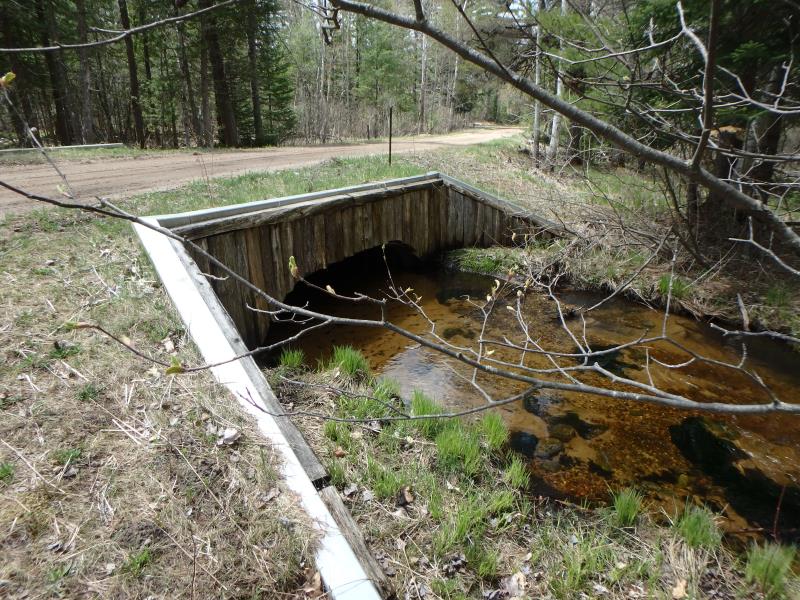

Outlet

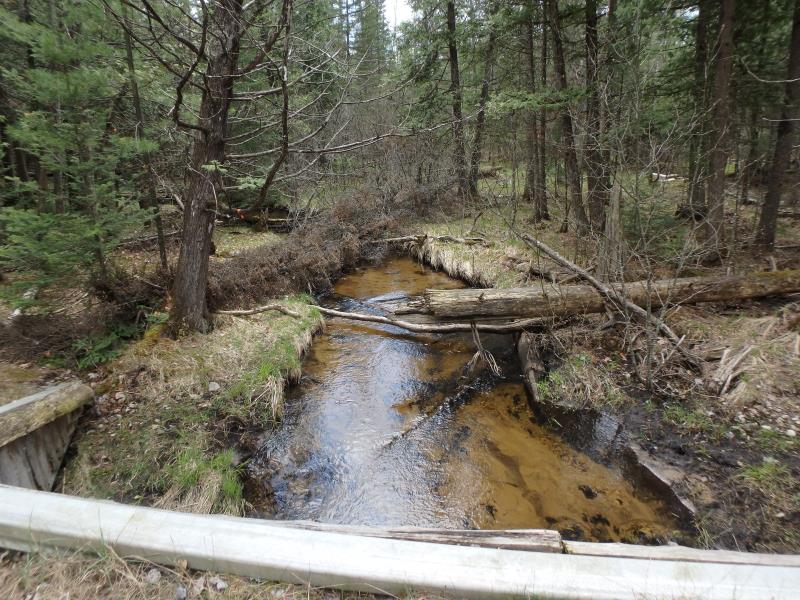

Upstream Conditions

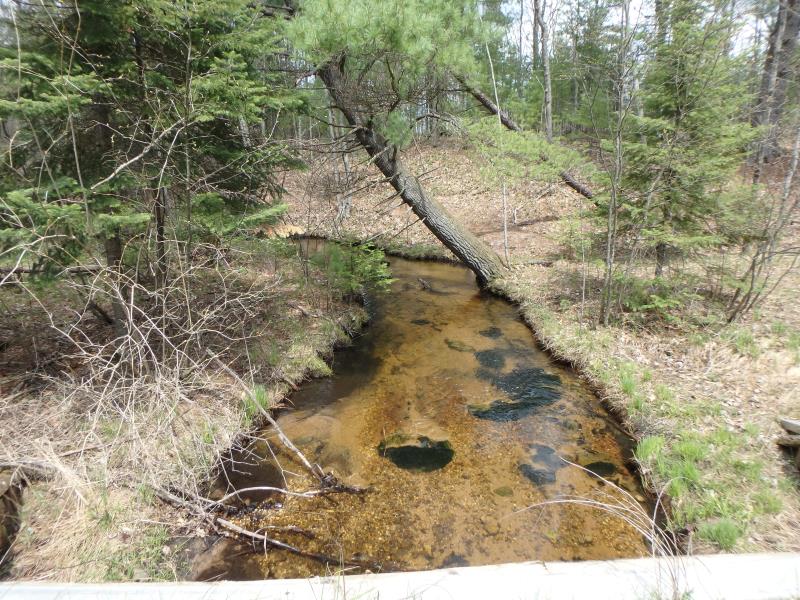

Downstream Conditions

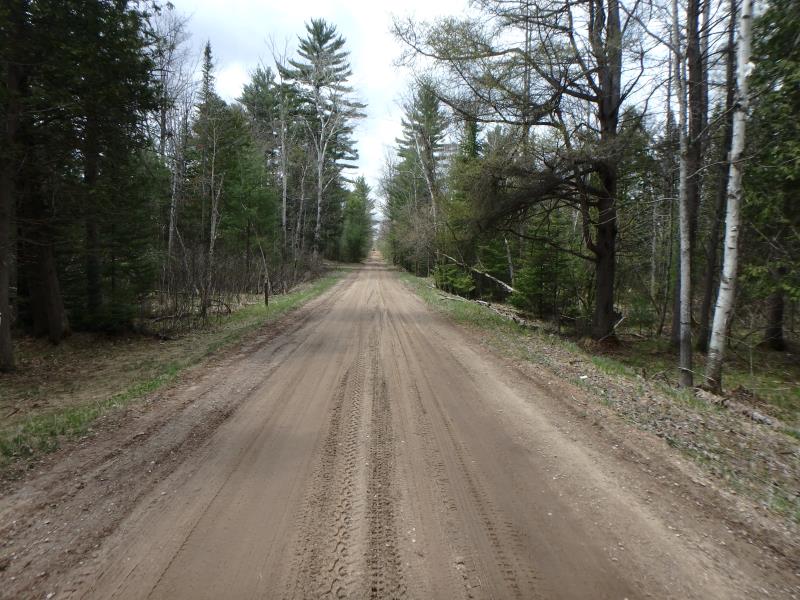

Road Approach - Left

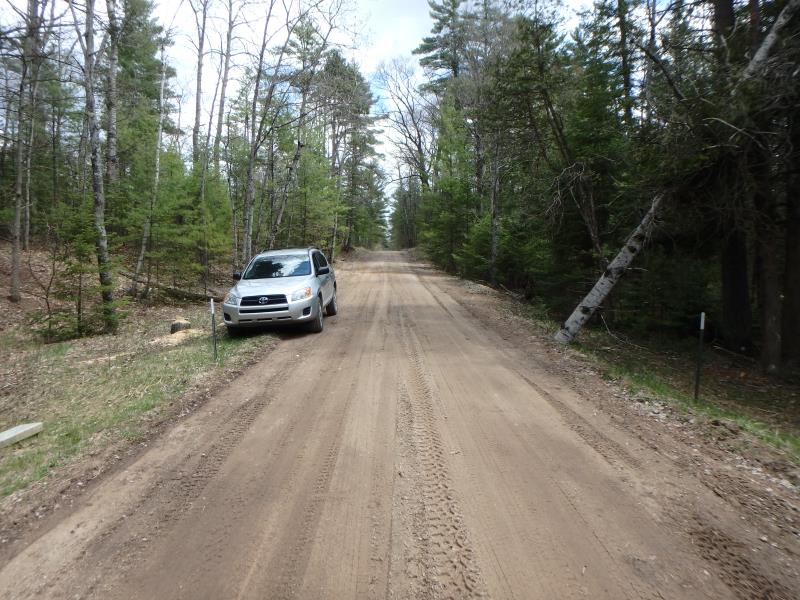

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Open Bottom Arch
Inlet Type: Wingwall 30-70 Degree
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 26 ft. , Width 10.5 ft. , Height 2.6 ft.
Structure Inlet
Water Depth: 0.9 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.6 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.2 ft./sec.
*Water Velocities were measured 0.3 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.9 ft.
Bankfull Width: 8 ft.
Wetted Width: 7 ft.
Water Velocity: 1 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand County Road
Road Condition: Poor
Road Width at Culvert: 15 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 2 ft.
Slope: Vertical
Downstream
Fill Depth: 2 ft.
Slope: Vertical
Approaches
Left Approach
Length: 100 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0207 tons/year
Right Approach
Length: 200 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.43
Erosion: 0.3554 tons/year
Erosion Information
Total Erosion at Crossing: 0.376 tons/year
Summary Information
Fish Passability 0.9
