Road Stream Crossing Site GTBAY_S424

Boardman River Watershed, Jackson Creek
M-113
Paradise Twp, Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.58461 , -85.48171
T25N R10W Sec 02
Owned by Private
Fish Passability 0.5
Total Erosion: 0.3372 tons/year
Severity: Moderate
Year Inventoried: 2020
Inlet

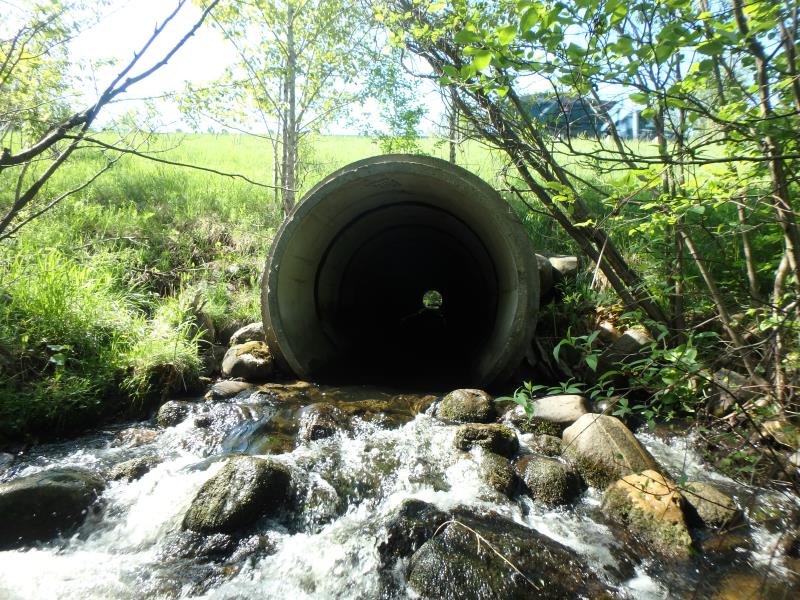

Outlet

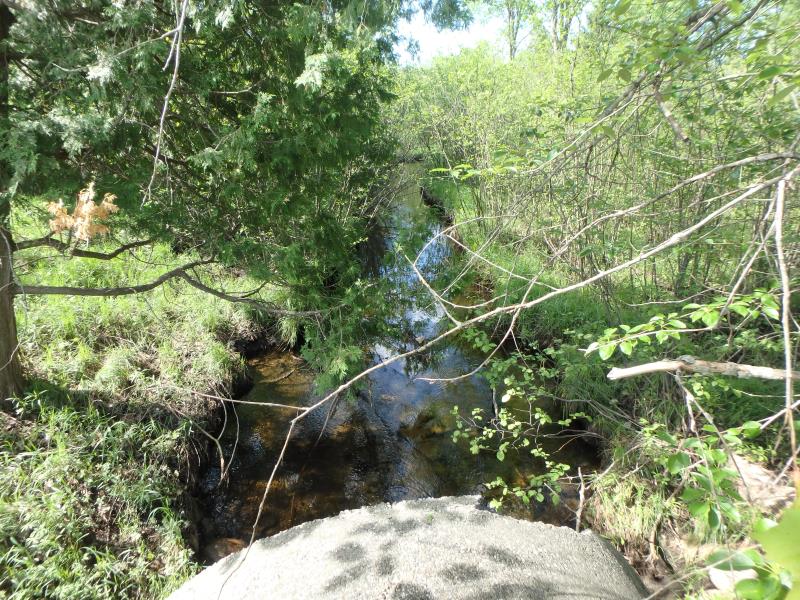

Upstream Conditions

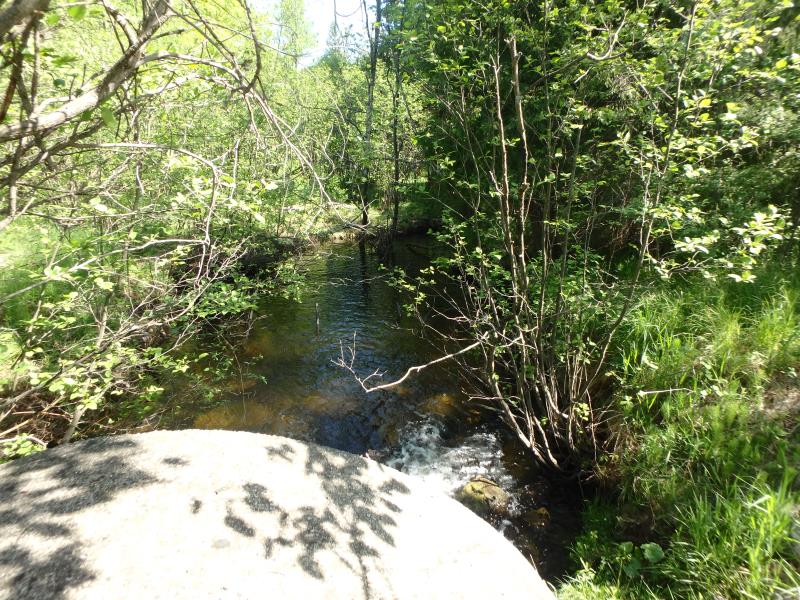

Downstream Conditions

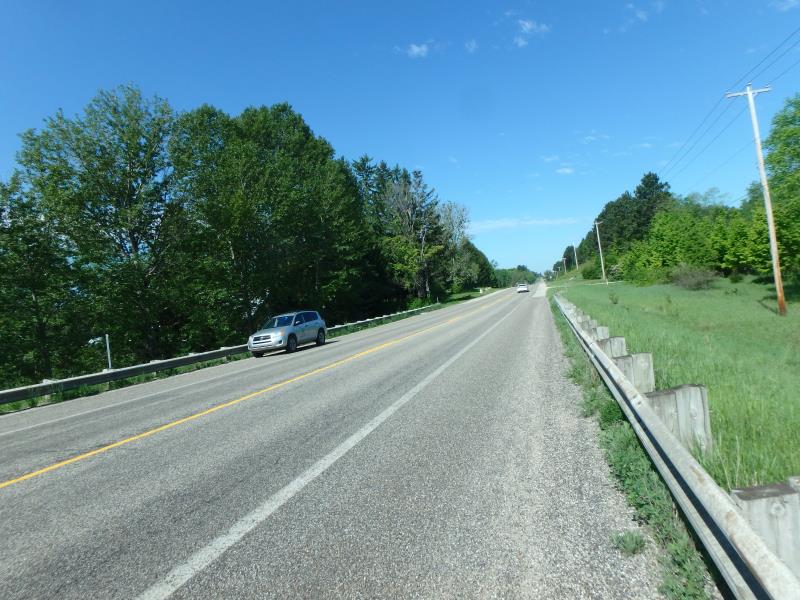

Road Approach - Left

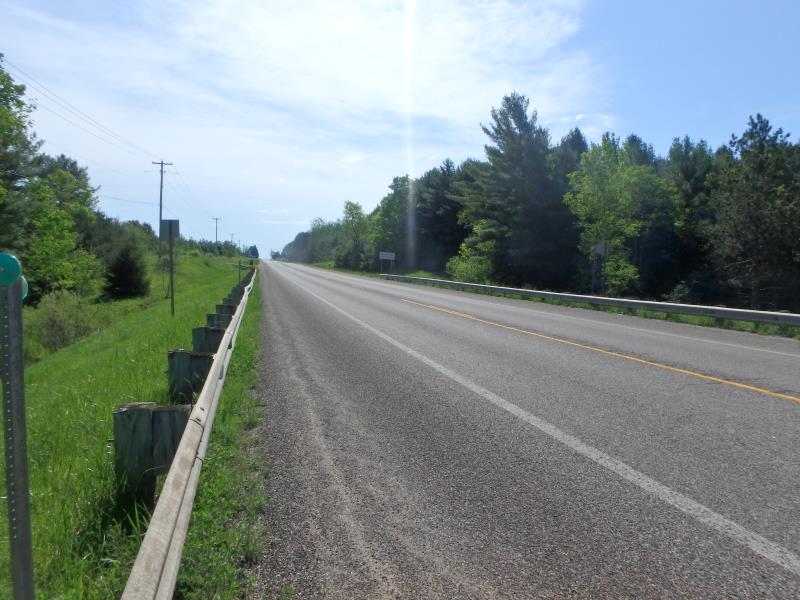

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: Cascade over Riprap
Structure Material: Concrete
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 145 ft. , Width 6 ft. , Height 6 ft.
Structure Inlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.7 ft./sec.
Structure Outlet
Water Depth: 0.7 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.9 ft./sec.
*Water Velocities were measured 0.4 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1.1 ft.
Bankfull Width: 10.5 ft.
Wetted Width: 9.5 ft.
Water Velocity: 0.8 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved State Road
Road Condition: Good
Road Width at Culvert: 40 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 15 ft.
Slope: More than 1:2
Downstream
Fill Depth: 15 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 100 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0066 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.3306 tons/year
Erosion Information
Total Erosion at Crossing: 0.3372 tons/year
Summary Information
Fish Passability 0.5
