Road Stream Crossing Site GTBAY_S431

Boardman River Watershed, Jackson Creek
Voice Rd
Paradise Twp, Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.60614 , -85.48612
T26N R10W Sec 35
Owned by Private
Fish Passability 0.9
Severity: Minor
Year Inventoried: 2020

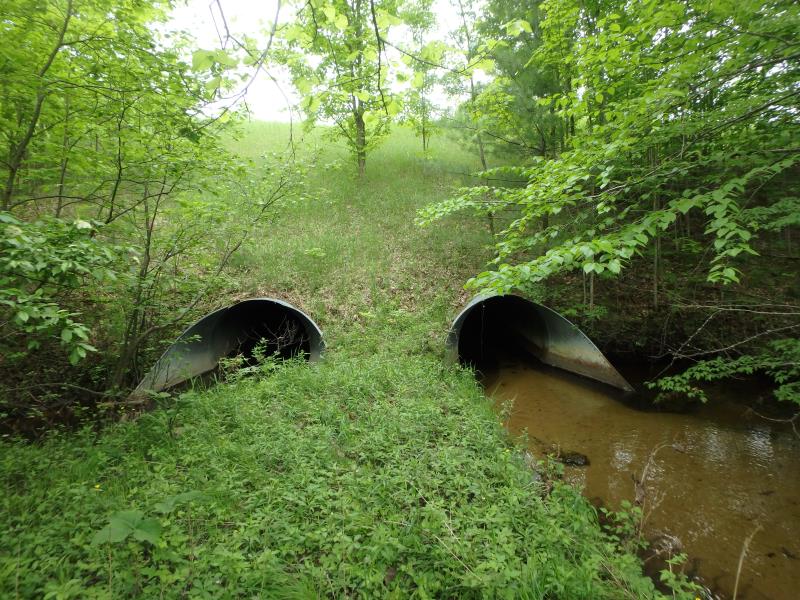

Inlet

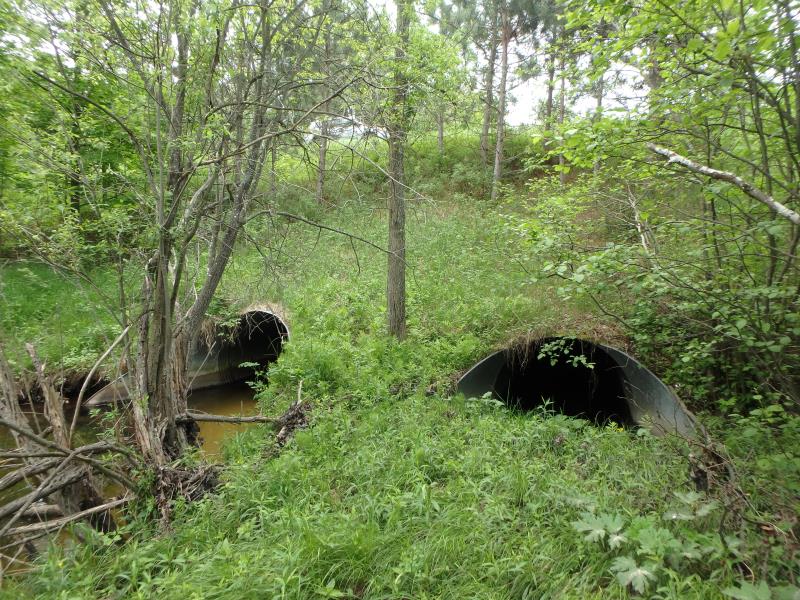

Outlet

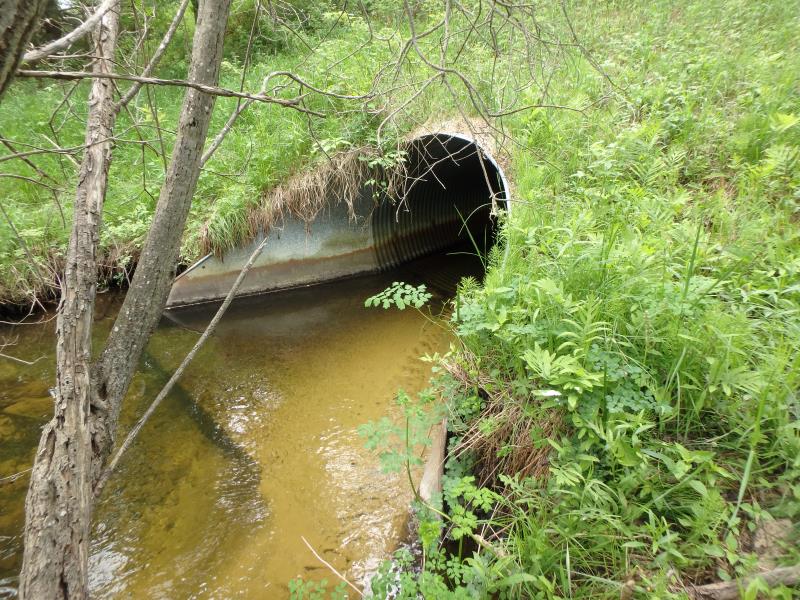

Outlet

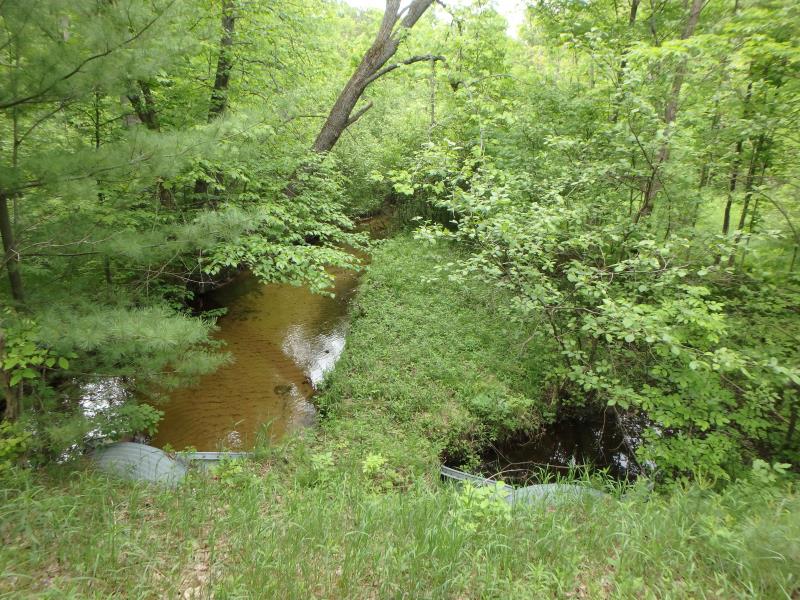

Upstream Conditions

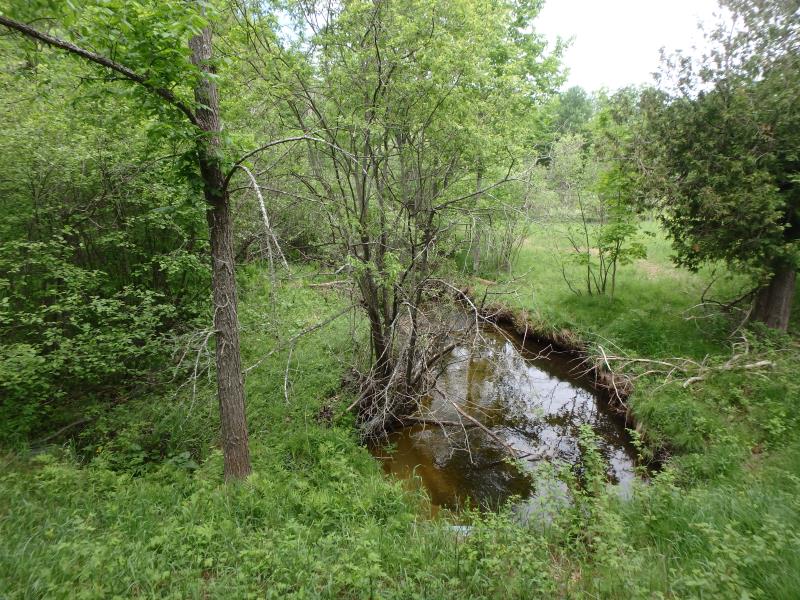

Downstream Conditions

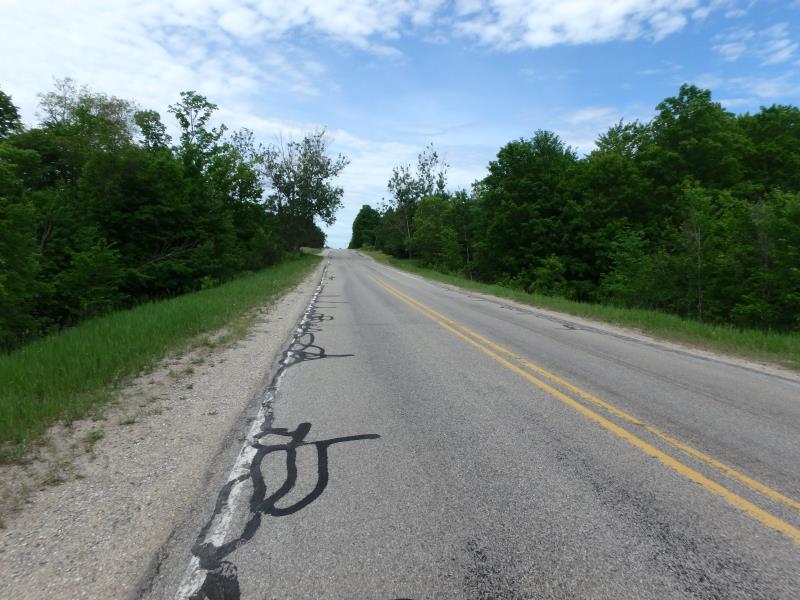

Road Approach - Left
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 2
Structure Shape: Round
Inlet Type: Apron
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Multiple Culverts/Spans
Culvert/Span
Width
Length
Height
Material
1
6 ft.
124 ft.
6 ft.
Metal
2
6 ft.
124 ft.
6 ft.
Metal
Structure Interior: corrugated
Dimensions of Structure: Length 124 ft. , Width 6 ft. , Height 6 ft.
Percentage Plugged: Inlet: 26% to 50% Outlet: 26% to 50%
Structure Inlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.1 ft./sec.
Structure Outlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.4 ft./sec.
*Water Velocities were measured 0.9 ft. below Surface (with Meter)
Additional Comments
Water depth and velocity measurements recorded for culvert #2
Stream Information
Stream Flow: Less than 1/2 Bankfull
Riffle Information
Water Depth: 0.9 ft.
Bankfull Width: 13.5 ft.
Wetted Width: 11.5 ft.
Water Velocity: 1.1 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Fair
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 25 ft.
Slope: 1:1.5
Downstream
Fill Depth: 25 ft.
Slope: 1:1.5
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
Erosion Information
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Autumn Olive
