Road Stream Crossing Site GTBAY_S710
Boardman River Watershed, Twenty-Two Creek
Fife Lake Rd
Union Twp,
Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.61945
, -85.35322
T26N
R9W
Sec 25
Owned by Private
Fish Passability 0.5
Total Erosion: 0.1812 tons/year
Severity: Moderate
Year Inventoried: 2020
Inlet

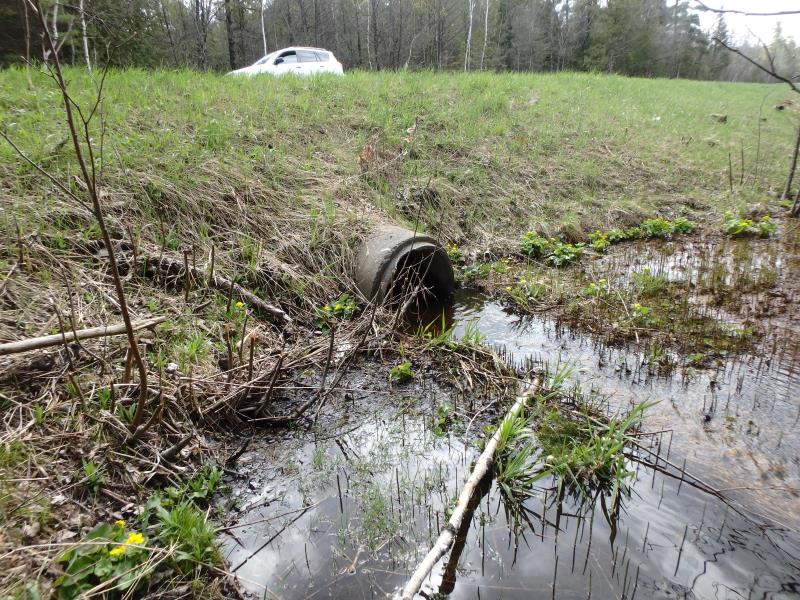

Outlet
Upstream Conditions

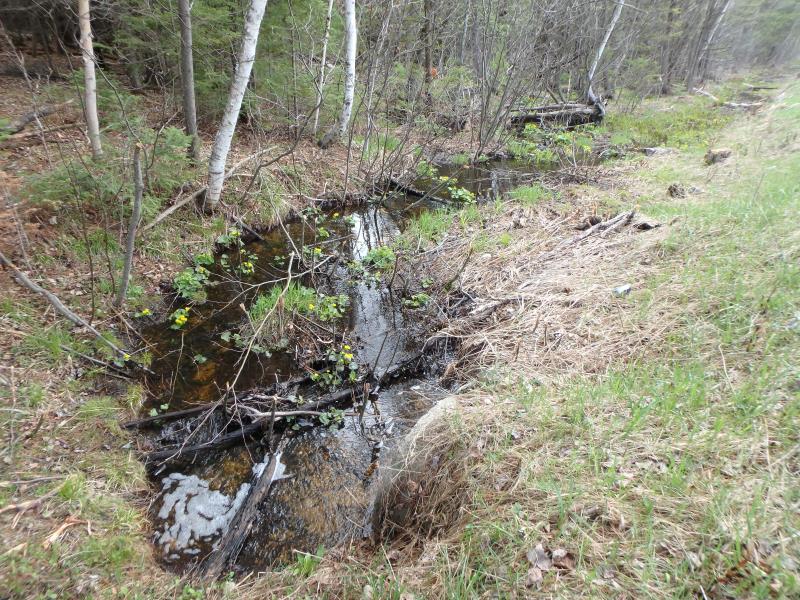

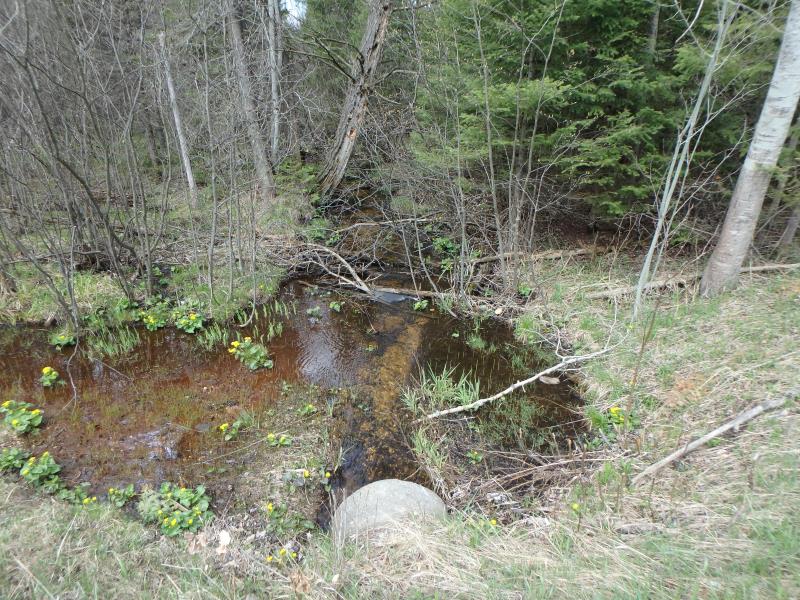

Downstream Conditions

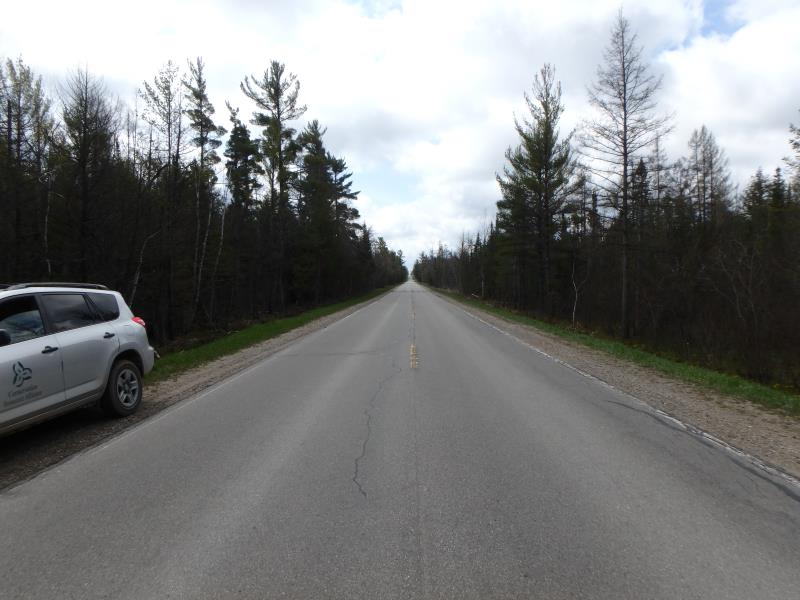

Road Approach - Left

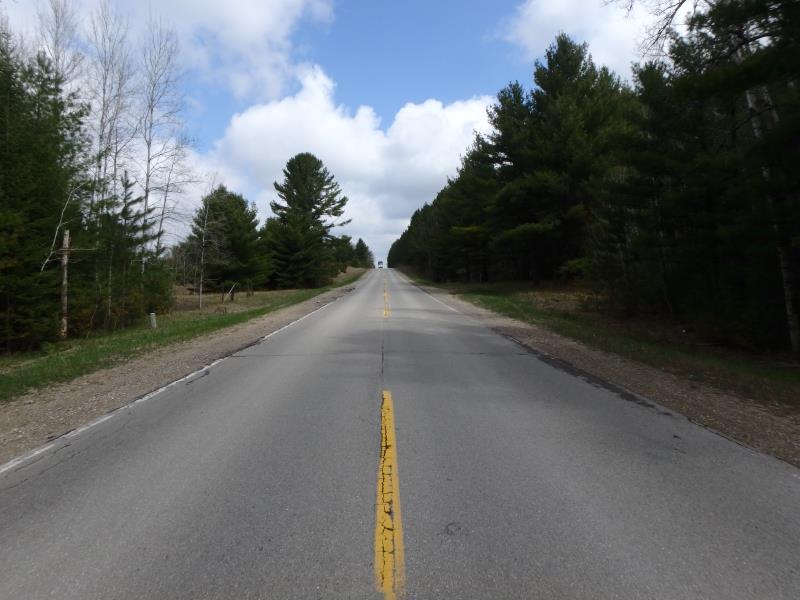

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: None
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 54 ft.
, Width 2 ft.
, Height 2 ft.
Structure Inlet
Water Depth: 0.2 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 1.2 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.2 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.4 ft.
Bankfull Width: 7 ft.
Wetted Width: 4 ft.
Water Velocity: 0.3 ft./sec.
(Measured with Meter)
Dominant Substrate: Organics
Road Information
Paved
County Road
Road Condition: Good
Road Width at Culvert: 21.5 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 4 ft.
Slope: More than 1:2
Downstream
Fill Depth: 5 ft.
Slope: 1:1.5
Approaches
Left Approach
Length: 100 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0036 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1777 tons/year
Erosion Information
Total Erosion at Crossing: 0.1812 tons/year
Summary Information
Fish Passability 0.5
