Road Stream Crossing Site GTBAY_S737

Boardman River Watershed, Taylor Creek
ORV Trail
Boardman Twp, Kalkaska County
Information collected by:
Site Location
GPS Coordinates: 44.669569 , -85.29704
T26N R8W Sec 08
Owned by State
Fish Passability 0.9
Total Erosion: 0.011 tons/year
Severity: Minor
Year Inventoried: 2020

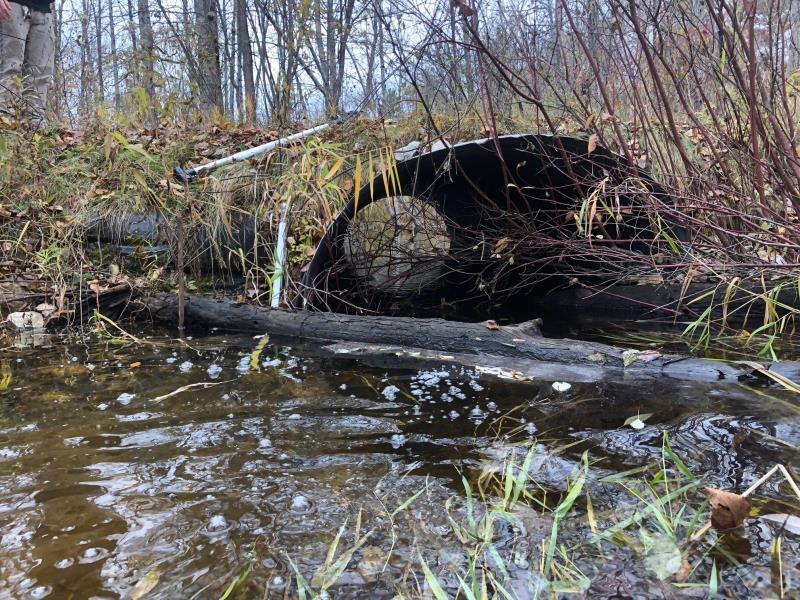

Inlet

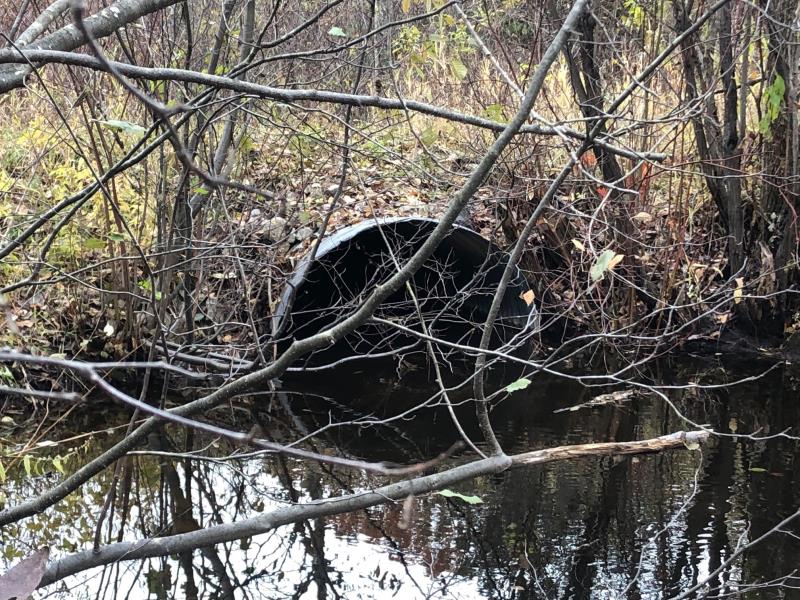

Outlet

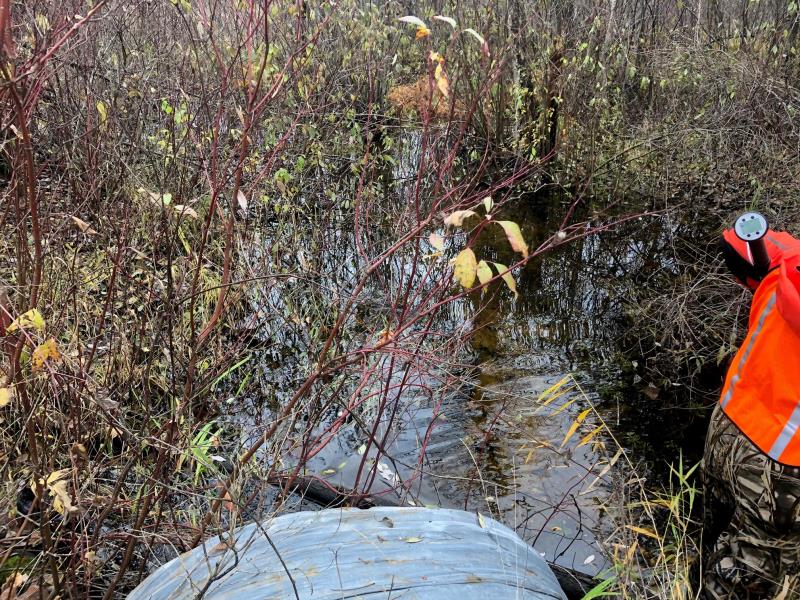

Upstream Conditions

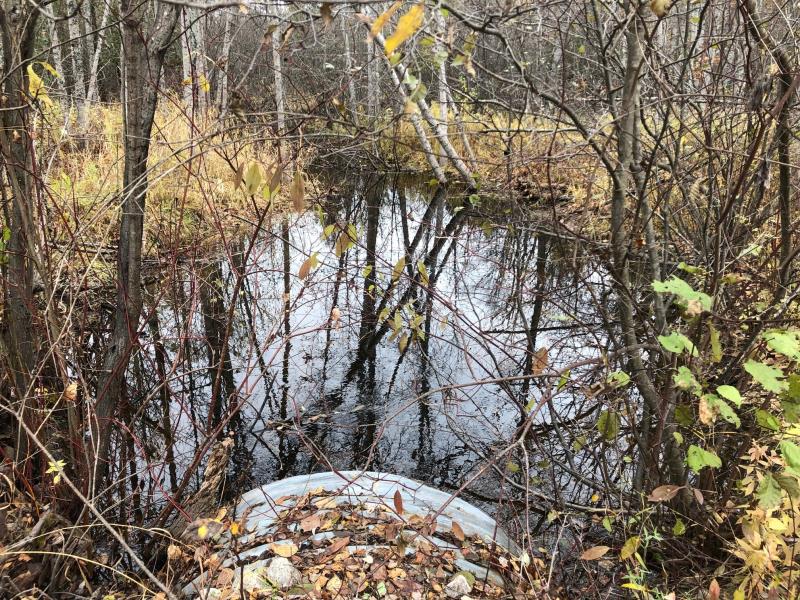

Downstream Conditions

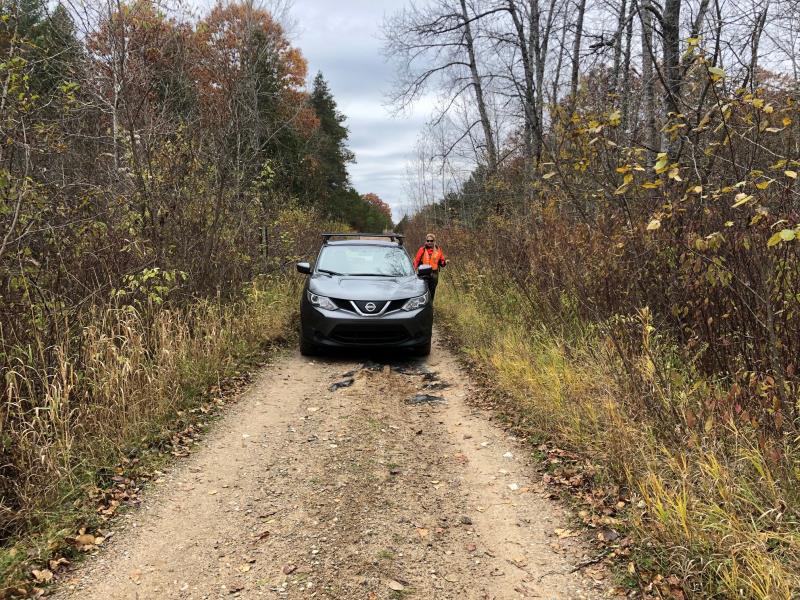

Road Approach - Left

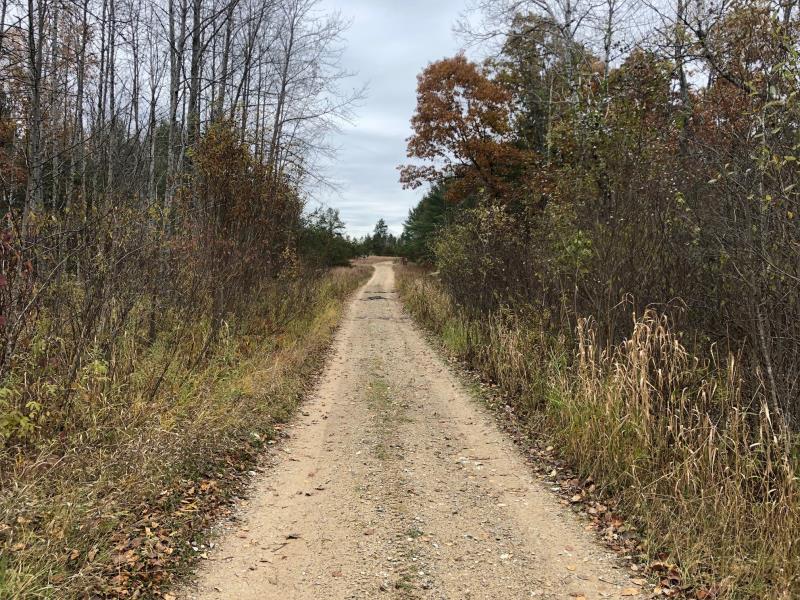

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: None
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 22 ft. , Width 4.8 ft. , Height 3.8 ft.
Structure Inlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.3 ft./sec.
Structure Outlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0.4 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 1.3 ft.
Bankfull Width: 14 ft.
Wetted Width: 12 ft.
Water Velocity: 0.2 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel State Road
Road Condition: Fair
Road Width at Culvert: 8 ft.
Location of Low Point: Other
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1 ft.
Slope: 1:1.5
Downstream
Fill Depth: 1 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0055 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0055 tons/year
Erosion Information
Total Erosion at Crossing: 0.011 tons/year
Summary Information
Fish Passability 0.9
