Road Stream Crossing Site GTBAY_S738
Boardman River Watershed, Taylor Creek
S Branch Rd
Boardman Twp,
Kalkaska County
Information collected by:
Site Location
GPS Coordinates: 44.674666
, -85.323729
T26N
R8W
Sec 06
Owned by State
Fish Passability 0.9
Total Erosion: 0.0152 tons/year
Severity: Minor
Year Inventoried: 2020

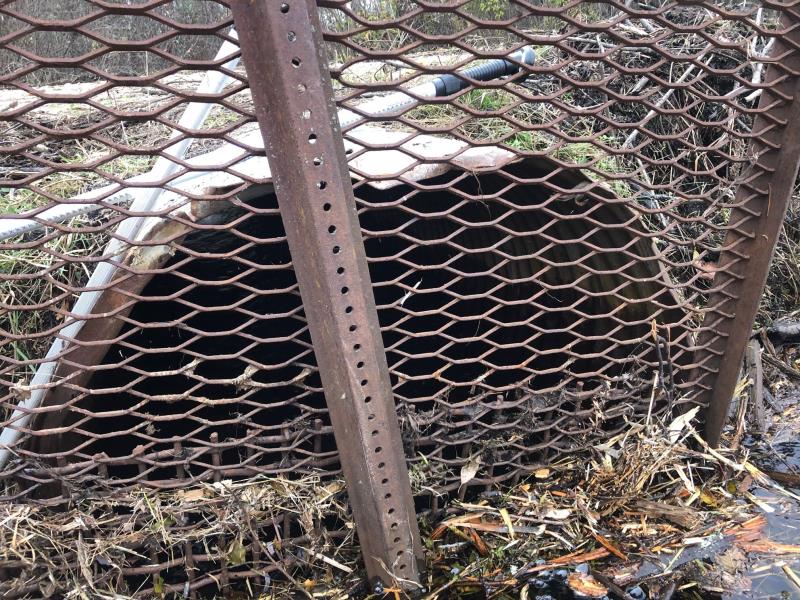

Inlet

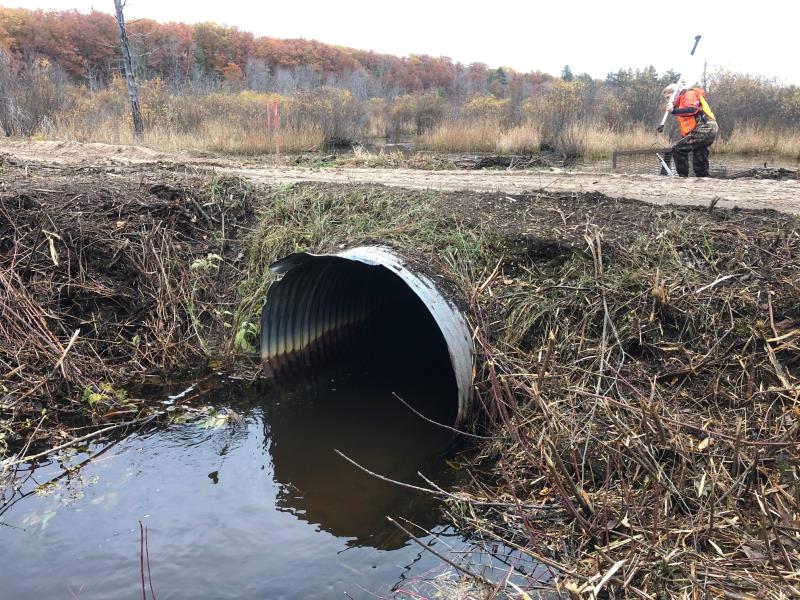

Outlet

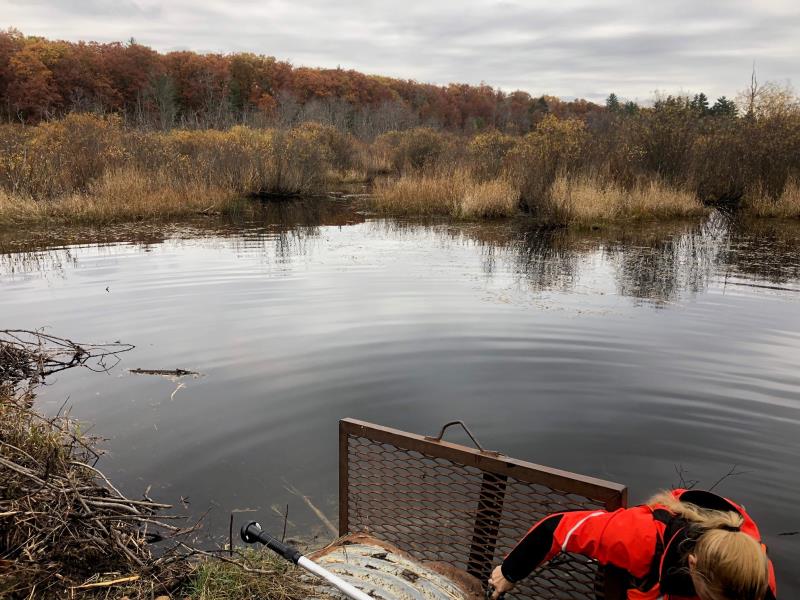

Upstream Conditions

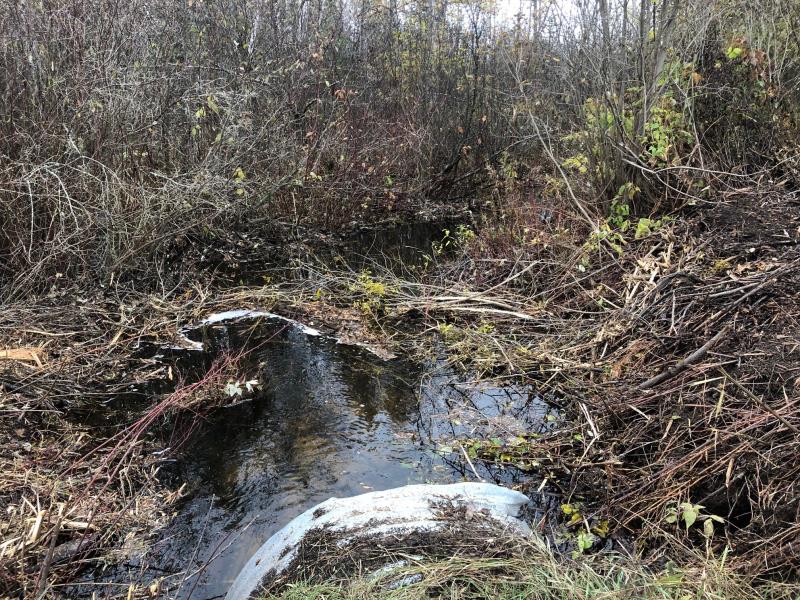

Downstream Conditions

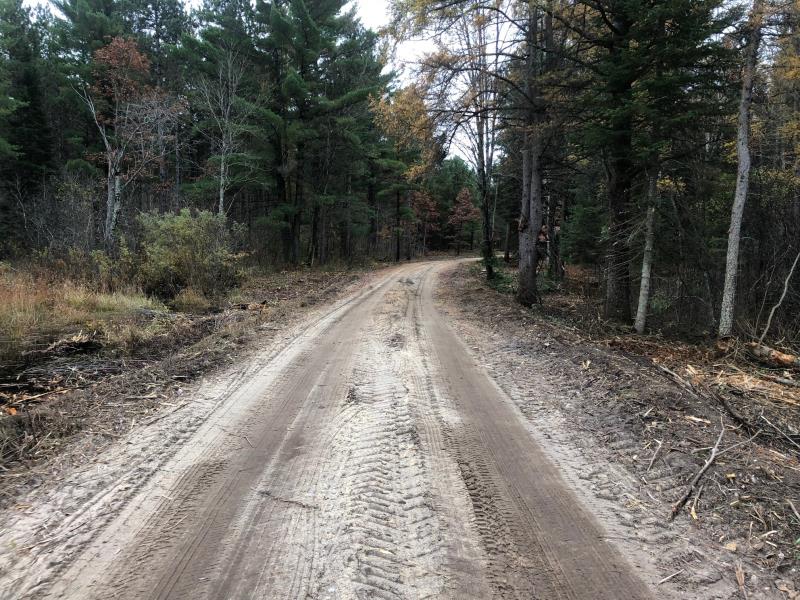

Road Approach - Left

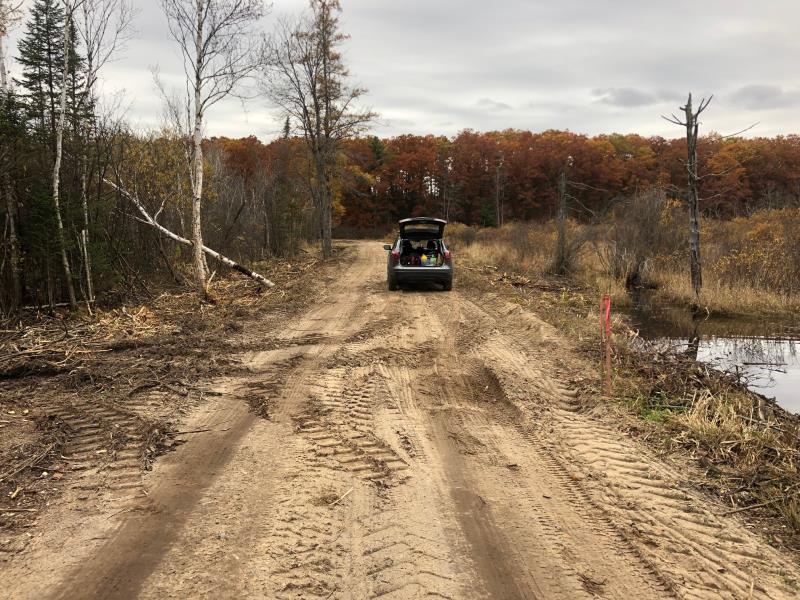

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Number of Structures: 1
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: corrugated
Dimensions of Structure: Length 24 ft.
, Width 3.8 ft.
, Height 3.8 ft.
Structure Inlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1 ft./sec.
Structure Outlet
Water Depth: 1.3 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.9 ft./sec.
*Water Velocities were measured 0.5 ft. below Surface
(with Meter)
Stream Information
Stream Flow: Bankfull
Riffle Information
Water Depth: 0.6 ft.
Bankfull Width: 12 ft.
Wetted Width: 12 ft.
Water Velocity: 0.4 ft./sec.
(Measured with Meter)
Dominant Substrate: Sand
Road Information
Sand
County Road
Road Condition: Poor
Road Width at Culvert: 11 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 0.5 ft.
Slope: Vertical
Downstream
Fill Depth: 0.5 ft.
Slope: Vertical
Approaches
Left Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: None
LS Factor: 0.05
Erosion: 0.0076 tons/year
Right Approach
Length: 50 ft.
Slope: Less Than 1%
Vegetation: Partial
LS Factor: 0.05
Erosion: 0.0076 tons/year
Erosion Information
Total Erosion at Crossing: 0.0152 tons/year
Summary Information
Fish Passability 0.9
