Road Stream Crossing Site GTBAY_S752

Boardman River Watershed, Jackson Creek
Wood Road
Paradise Twp, Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.556869 , -85.475764
T25N R10W Sec 13
Owned by Private
Fish Passability 0.9
Total Erosion: 0.0207 tons/year
Severity: Minor
Year Inventoried: 2020

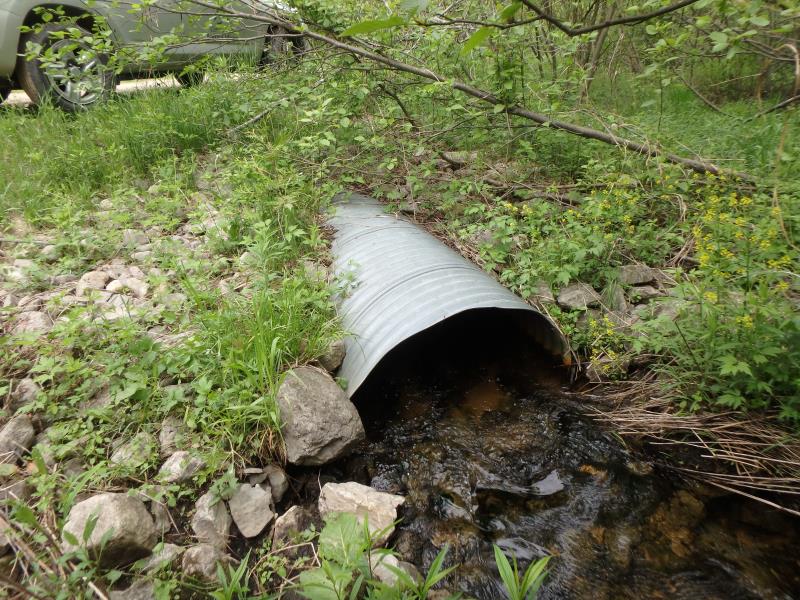

Inlet

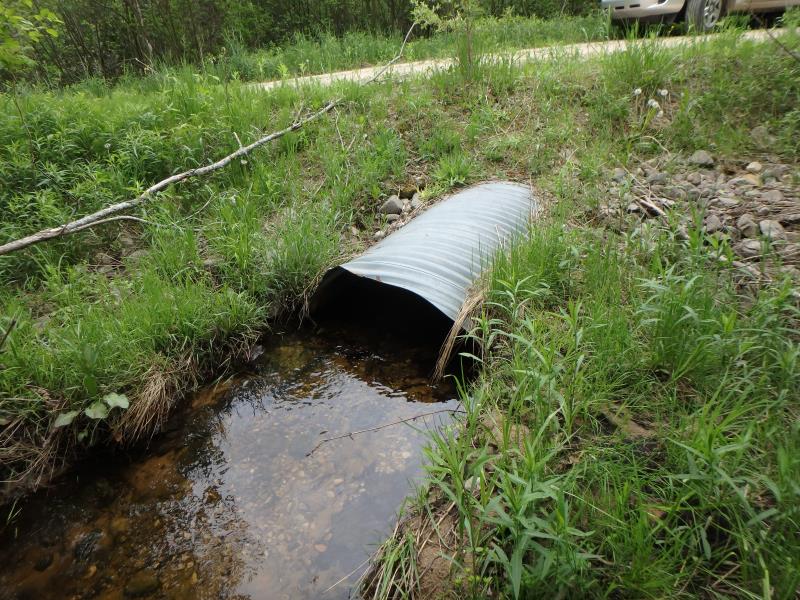

Outlet

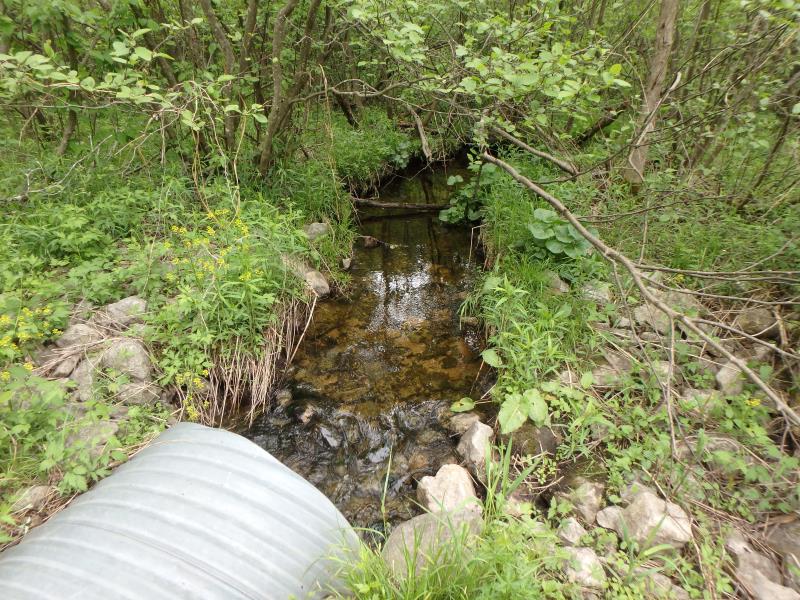

Upstream Conditions

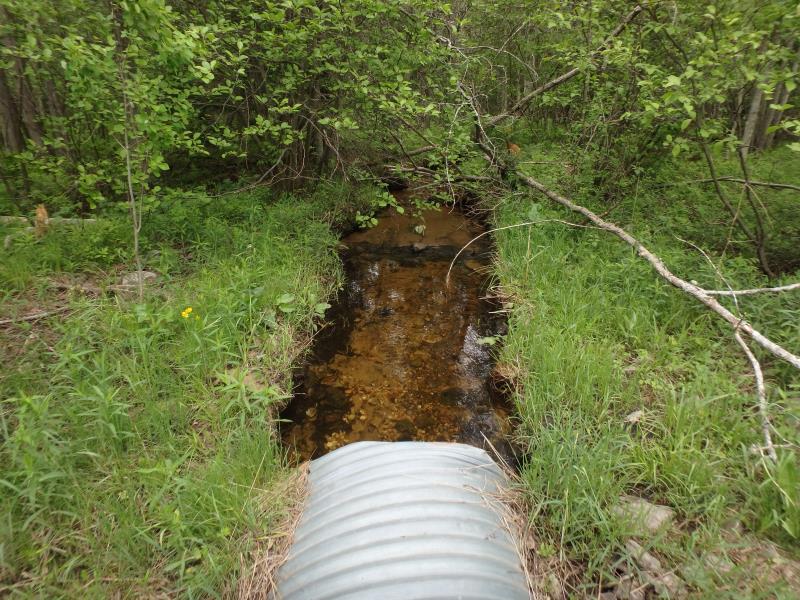

Downstream Conditions

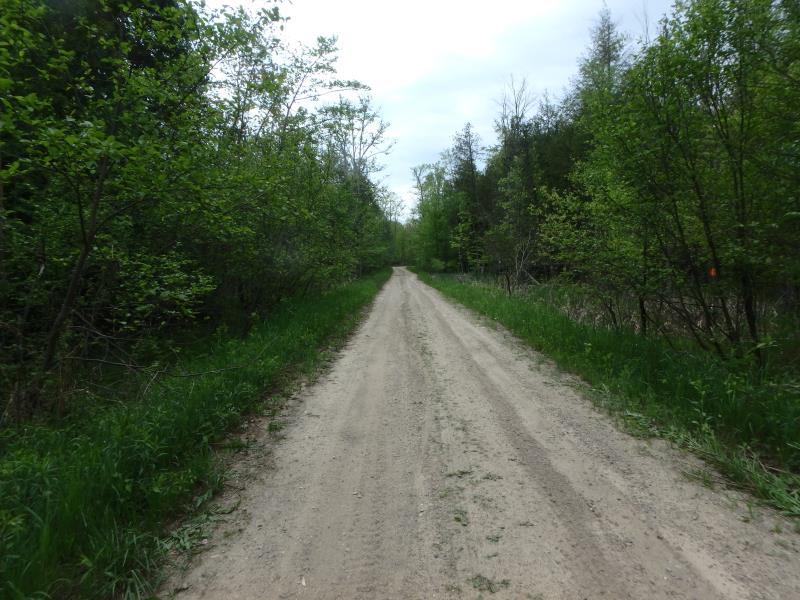

Road Approach - Left

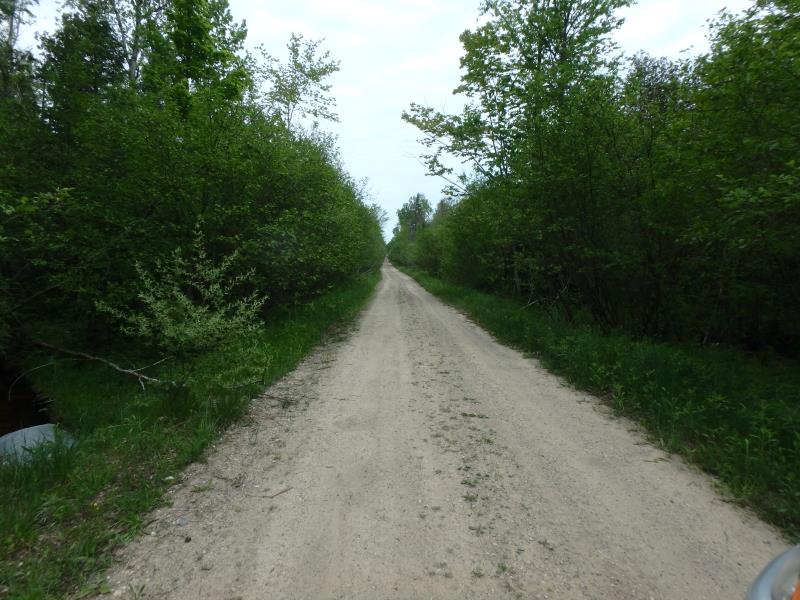

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Ellipse
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Metal
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: corrugated
Dimensions of Structure: Length 45 ft. , Width 3.5 ft. , Height 2 ft.
Structure Inlet
Water Depth: 0.3 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 1.1 ft./sec.
Structure Outlet
Water Depth: 0.6 ft.
Embedded Depth of Structure: 0.2 ft.
Water Velocity*: 0.6 ft./sec.
*Water Velocities were measured 0.1 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Riffle Information
Water Depth: 0.3 ft.
Bankfull Width: 4.2 ft.
Wetted Width: 4.2 ft.
Water Velocity: 1.1 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Gravel County Road
Road Condition: Poor
Road Width at Culvert: 10 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.5 ft.
Slope: More than 1:2
Downstream
Fill Depth: 1.5 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 75 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0103 tons/year
Right Approach
Length: 75 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0103 tons/year
Erosion Information
Total Erosion at Crossing: 0.0207 tons/year
Summary Information
Fish Passability 0.9
These non-native species were observerd at this site: Autumn Olive
