Road Stream Crossing Site GTBAY_TC015

Tobeco Creek Watershed, Tobeco Creek
Cram Rd
Whitewater Twp, Grand Traverse County
Information collected by:
Site Location
GPS Coordinates: 44.780175 , -85.402994
T28N R9W Sec 33
Owned by Private
Total Erosion: 0.2822 tons/year
Severity: Minor
Year Inventoried: 2020

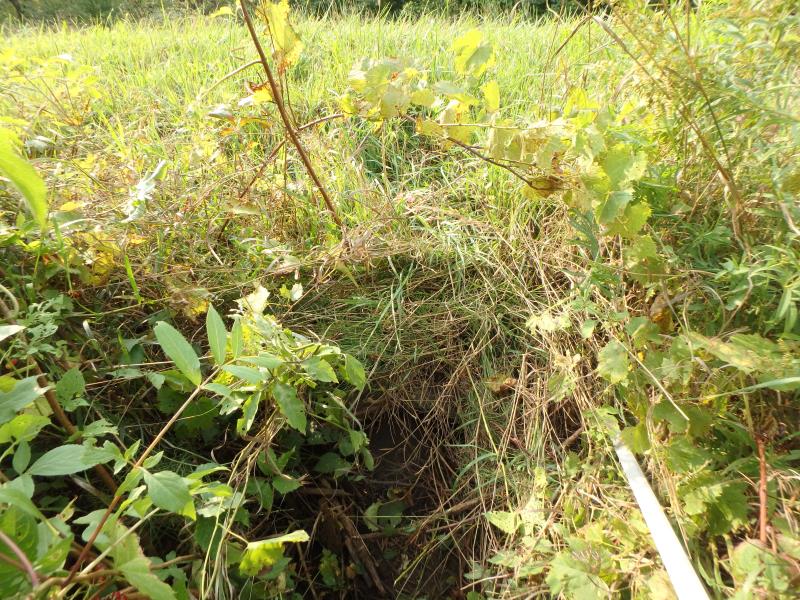

Outlet

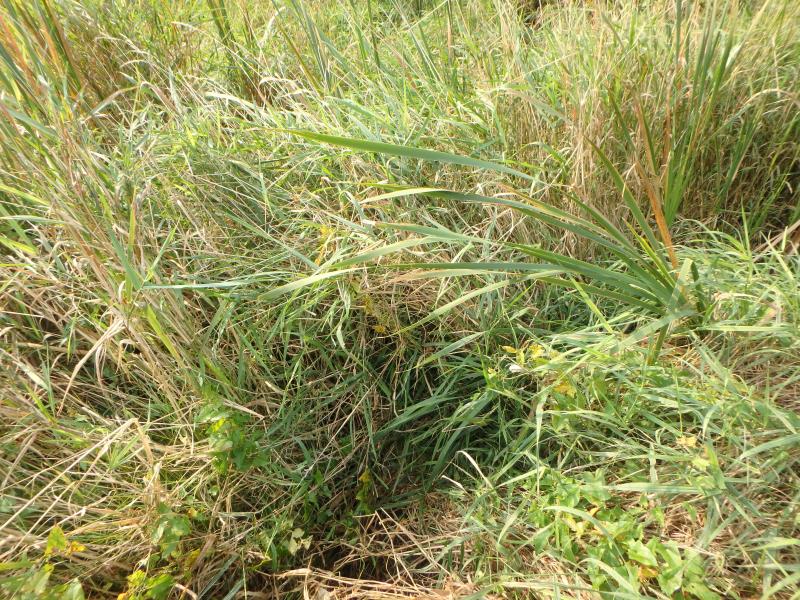

Upstream Conditions

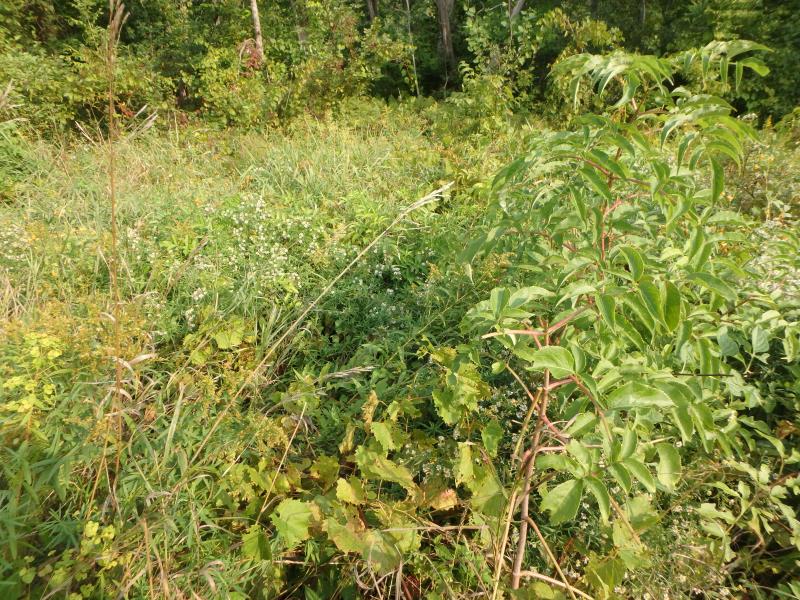

Downstream Conditions

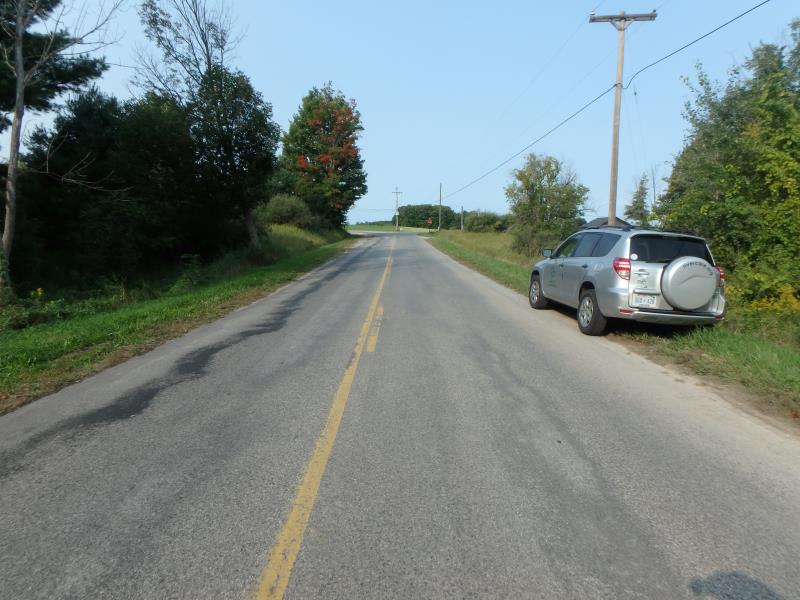

Road Approach - Left

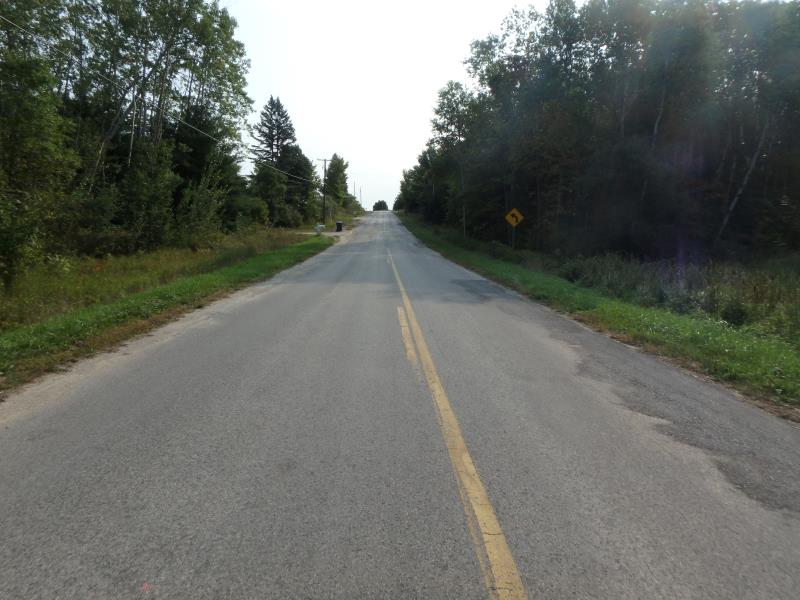

Road Approach - Right
Crossing Information
Type of Crossing: culvert(s)
Structure Shape: Round
Inlet Type: Projecting
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Sand
General Conditions: Fair
Structure Interior: smooth
Dimensions of Structure: Length 45 ft. , Width 1.3 ft. , Height 1.3 ft.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Water Depth: 0 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 0 ft./sec.
Stream Information
Stream Flow: None
Road Information
Paved County Road
Road Condition: Fair
Road Width at Culvert: 22 ft.
Location of Low Point: At Stream
Runoff Path: Ditch
Embankments
Upstream
Fill Depth: 1.7 ft.
Slope: More than 1:2
Downstream
Fill Depth: 2.8 ft.
Slope: More than 1:2
Approaches
Left Approach
Length: 300 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.46
Erosion: 0.1004 tons/year
Right Approach
Length: 500 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.5
Erosion: 0.1818 tons/year
Erosion Information
Total Erosion at Crossing: 0.2822 tons/year
Summary Information
These non-native species were observerd at this site: Queen Anne's Lace
