Road Stream Crossing Site BEAR_BC052

Bear Creek Watershed, Big Bear Creek
9 Mile Rd/Co Rd 598
Maple Grove Twp, Manistee County
Information collected by:
Site Location
GPS Coordinates: 44.37042 , -86.04216
T23N R14W Sec 19
Owned by Private
Structure is NOT Perched
Total Erosion: 0.7583 tons/year
Severity: Moderate
Year Inventoried: 2011

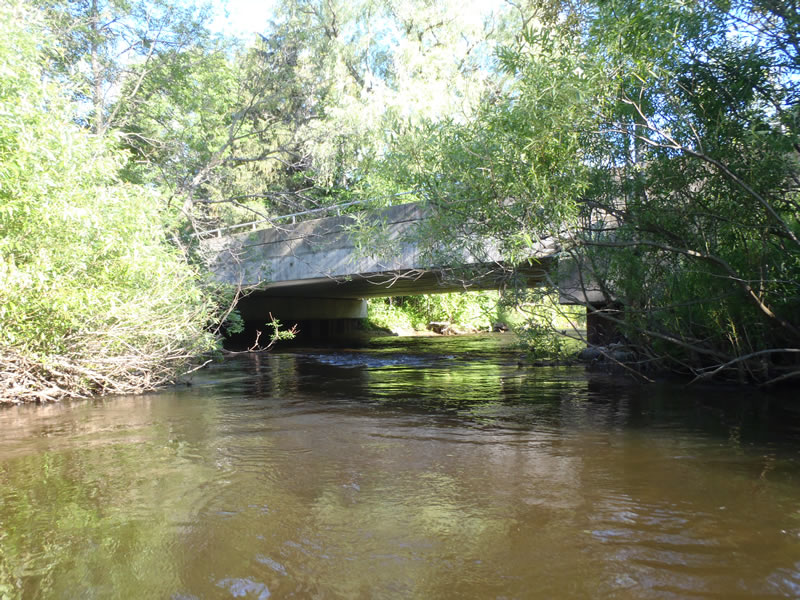

Inlet

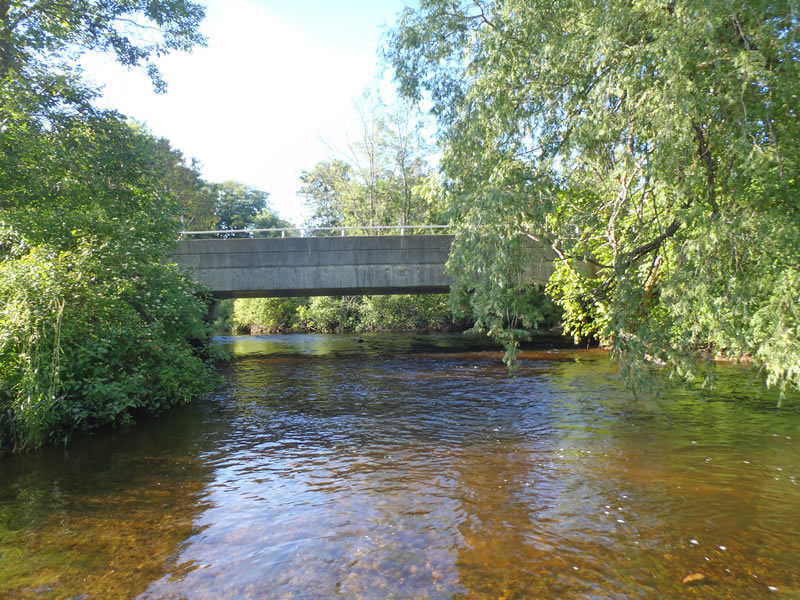

Outlet

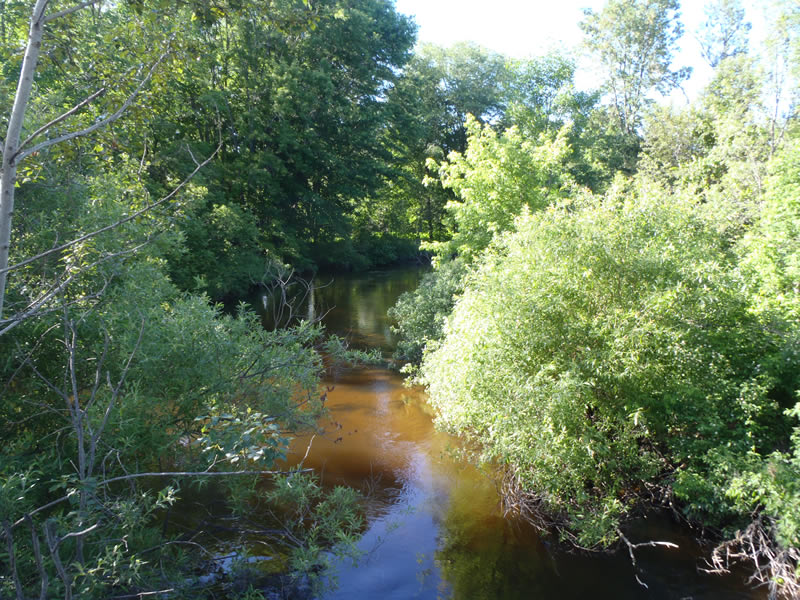

Upstream Conditions

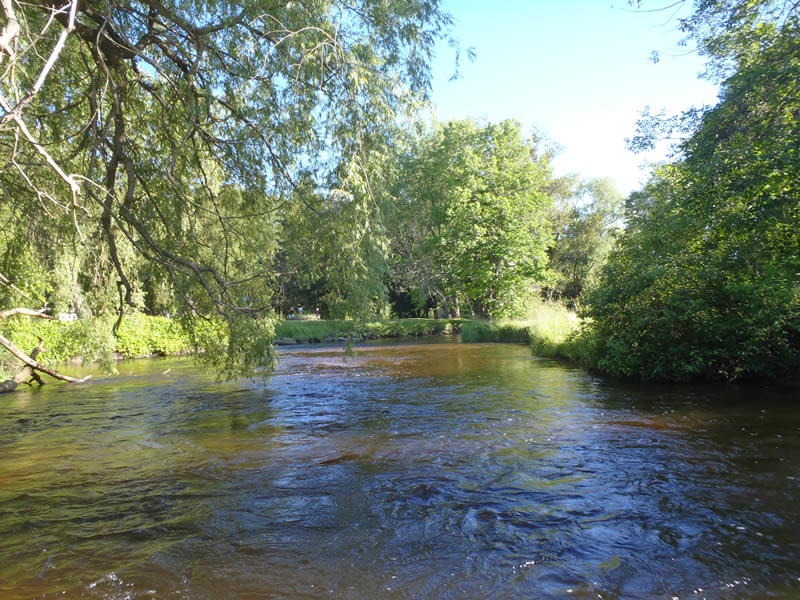

Downstream Conditions

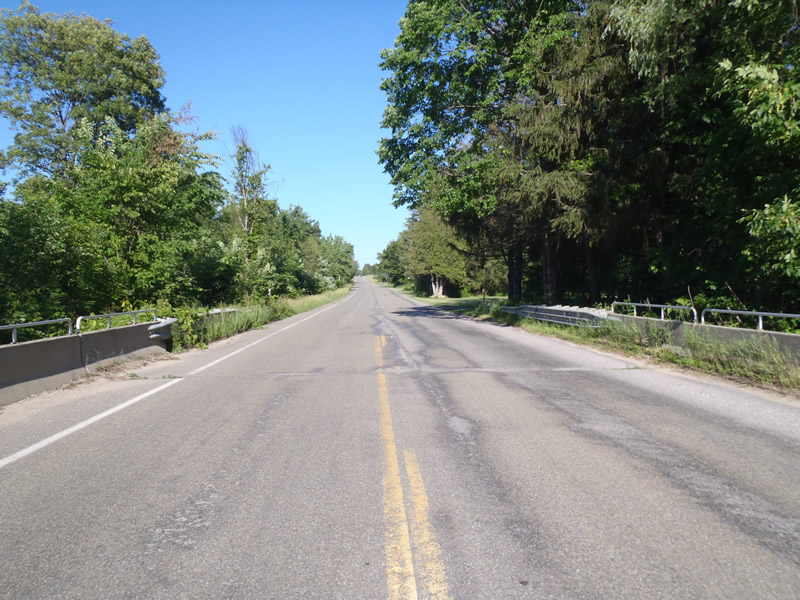

Road Approach - Left

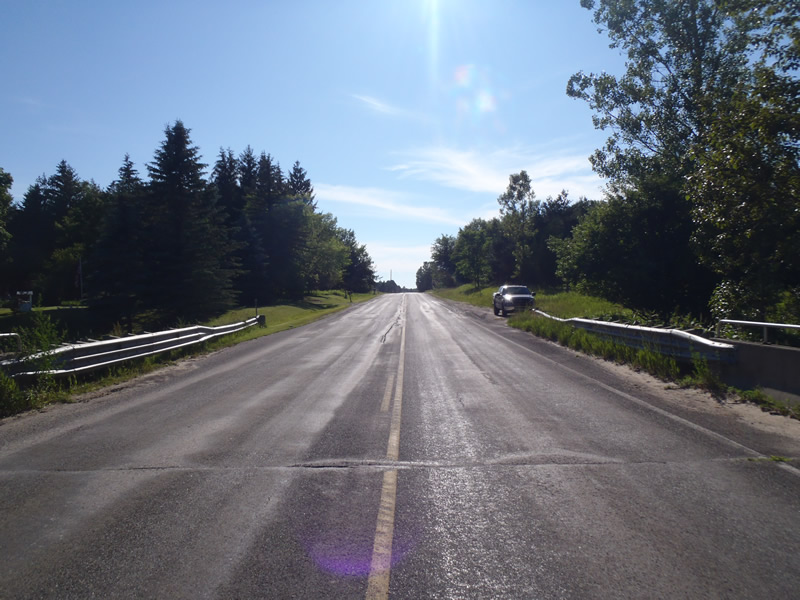

Road Approach - Right
Crossing Information
Type of Crossing: Bridge
Structure Shape: Open Bottom Square/Rectangle
Inlet Type: Other
Outlet Type: At Stream Grade
Structure Material: Concrete
Structure Substrate: Mixture
General Conditions: Good
Structure Interior: smooth
Dimensions of Structure: Length 35 ft. , Width 60 ft. , Height 8 ft.
Structure is NOT Perched
Structure Inlet
Water Depth: 1.6 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.6 ft./sec.
Structure Outlet
Water Depth: 1.8 ft.
Embedded Depth of Structure: 0 ft.
Water Velocity*: 2.8 ft./sec.
*Water Velocities were measured 0.96 ft. below Surface (with Meter)
Stream Information
Stream Flow: Less than Bankfull
Scour Pool: Length 20 ft. , Width 30 ft. , Depth 3 ft.
Riffle Information
Water Depth: 1.2 ft.
Bankfull Width: 62 ft.
Wetted Width: 60 ft.
Water Velocity: 3.5 ft./sec. (Measured with Meter)
Dominant Substrate: Sand
Road Information
Paved County Road
Road Condition: Good
Road Width at Culvert: 33 ft.
Location of Low Point: Other
Runoff Path: Ditch
Fill Depth: 0 ft.
Slope: Vertical
Fill Depth: 0 ft.
Slope: Vertical
Approaches
Left Approach
Length: 0 ft.
Slope: Less Than 1%
Vegetation: Heavy
LS Factor: 0.05
Erosion: 0.0612 tons/year
Right Approach
Length: 650 ft.
Slope: 1% to 5%
Vegetation: Heavy
LS Factor: 0.57
Erosion: 0.6972 tons/year
Erosion Information
Total Erosion at Crossing: 0.7583 tons/year
Extent of Erosion: Moderate
Summary Information
Erosion is an area of concern for this site.
