Road Stream Crossing Site PLT-I-7

Platte River Watershed, Stanley Creek
Lamb Rd
Inland Twp, Benzie County
Information collected by:
GPS Coordinates: 44.66127 , -85.87849
T26 R13 Sec 9
Adjacent Land Owned by Private
Severity: Moderate
Cost: $0.00
Site Location

Inlet
Outlet

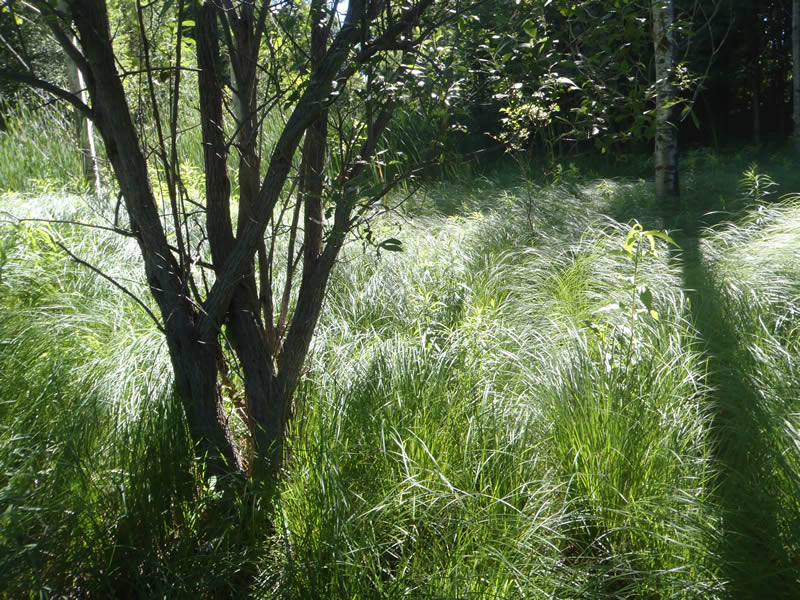

Upstream Conditions
Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Road Width at Culvert: 30 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Comments: Stream was dry at the time of data collection
Approaches
Left Approach
Length: 300 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 500 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 60 ft.
Diameter: 1.3 ft.
Material: galvanized
Condition :fair
Flow: clear
Embankments
Upstream
Fill Depth: 25 ft.
Embankment Slope: vertical
Downstream
Fill Depth: 22 ft.
Embankment Slope: vertical
Stream Information
Upstream
Stream Width: 1 ft.
Stream Depth: 0.2 in.
Stream Current: none
Stream Substrate: muck
Downstream
Stream Width: 1 ft.
Stream Depth: 0.2 in.
Stream Current: none
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Pave Left Approach: 0 Lineal Feet
Pave Right Approach: 0 Lineal Feet
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Extend culvert(s)? no
Lineal feet to extend: 0

Total Points:0
Severity:Moderate
