Road Stream Crossing Site PLT-H-1

Platte River Watershed, Carter Creek
North Thompsonville Rd
Homestead Twp, Benzie County
Information collected by:
GPS Coordinates: 44.62909 , -85.93763
T26 R14 Sec 25
Adjacent Land Owned by Private
Severity: Moderate
Cost: $0.00
Site Location

Inlet

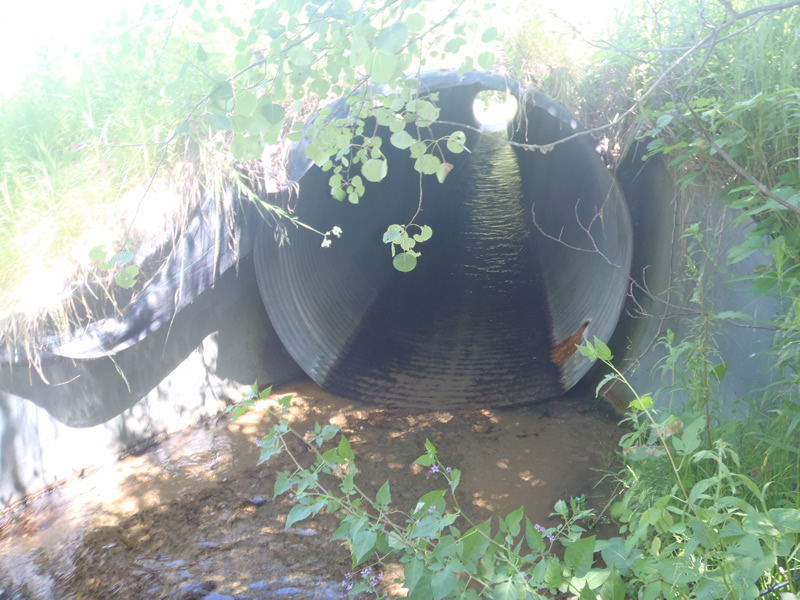

Outlet
Upstream Conditions
Downstream Conditions
Road Approach - Left
Road Approach - Right
Crossing Information
Road Width at Culvert: 26 ft.
Road Surface: Paved
Maintenance: year around
Low Point: Other
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 500 ft.
Slope: 6-10%
Vegetation: heavy
Right Approach
Length: 200 ft.
Slope: 1-5%
Vegetation: partial
Culvert Information
Length: 60 ft.
Diameter: 5.3 ft.
Material: galvanized
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 9 ft.
Embankment Slope: 1:1
Downstream
Fill Depth: 10 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 4 ft.
Stream Depth: 1 in.
Stream Current: fast
Stream Substrate: sand
Downstream
Stream Width: 7 ft.
Stream Depth: 0.8 in.
Stream Current: fast
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Pave Left Approach: 0 Lineal Feet
Pave Right Approach: 0 Lineal Feet
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Extend culvert(s)? no
Lineal feet to extend: 0

Total Points:0
Severity:Moderate
