Road Stream Crossing Site PLT-H-2

Platte River Watershed, Platte River
US 31
Homestead Twp, Benzie County
Information collected by:
GPS Coordinates: 44.65941 , -85.94408
T26 R14 Sec 13
Adjacent Land Owned by Private
Severity: Moderate
Cost: $0.00
Site Location

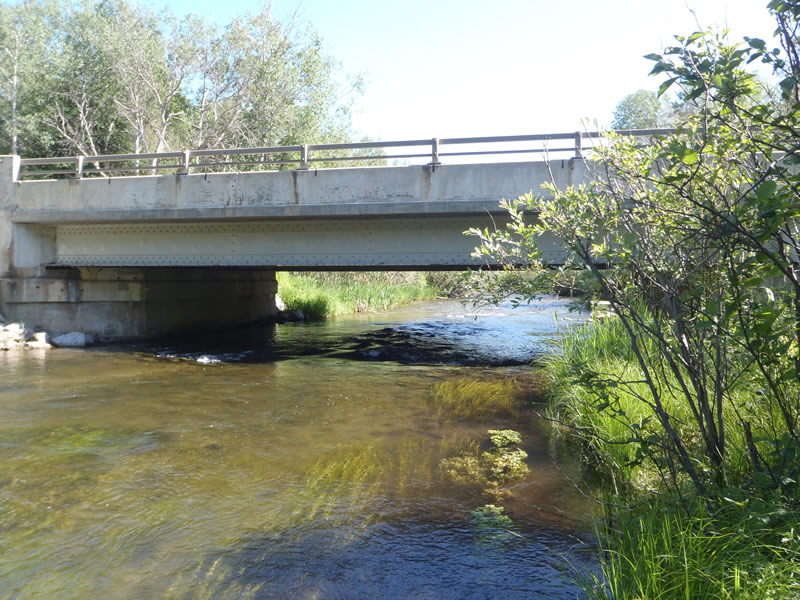

Inlet

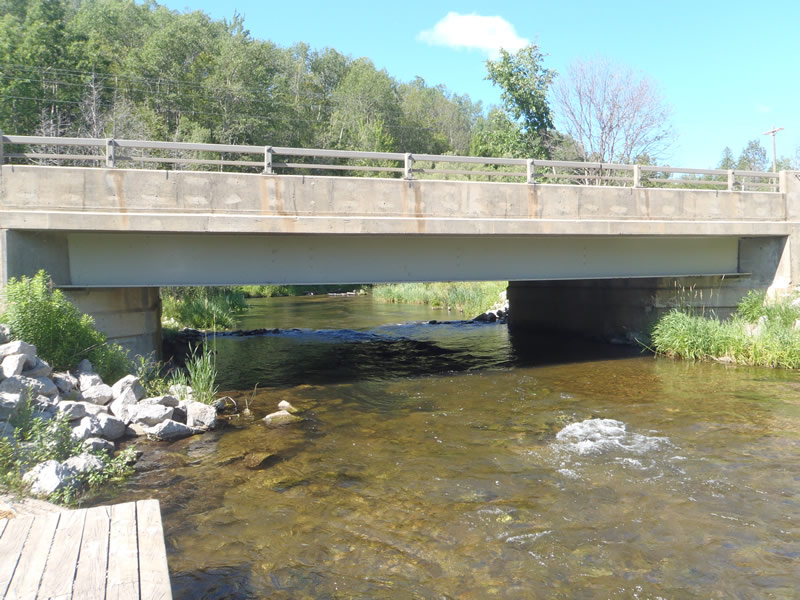

Outlet

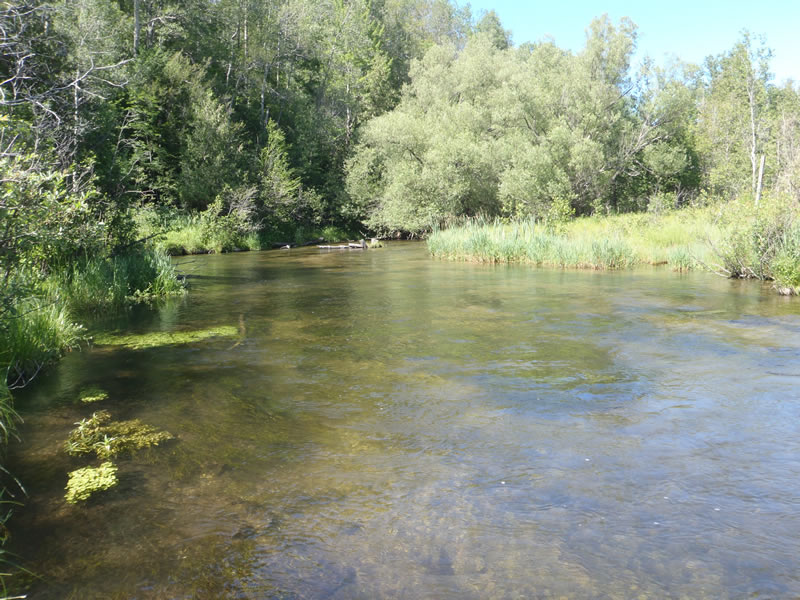

Upstream Conditions

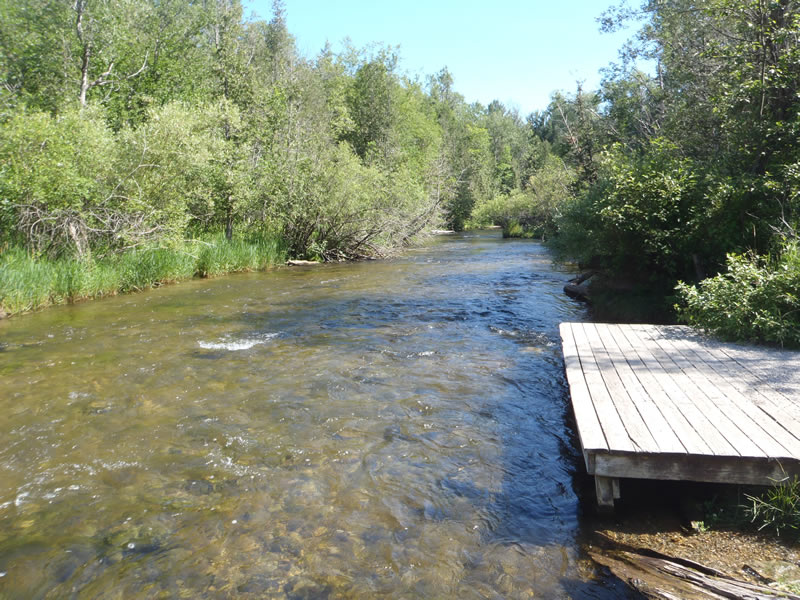

Downstream Conditions

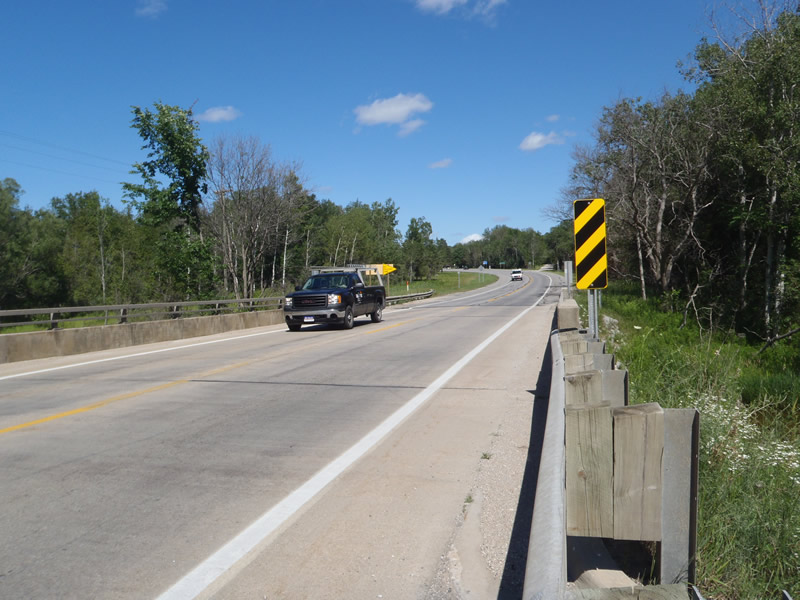

Road Approach - Left

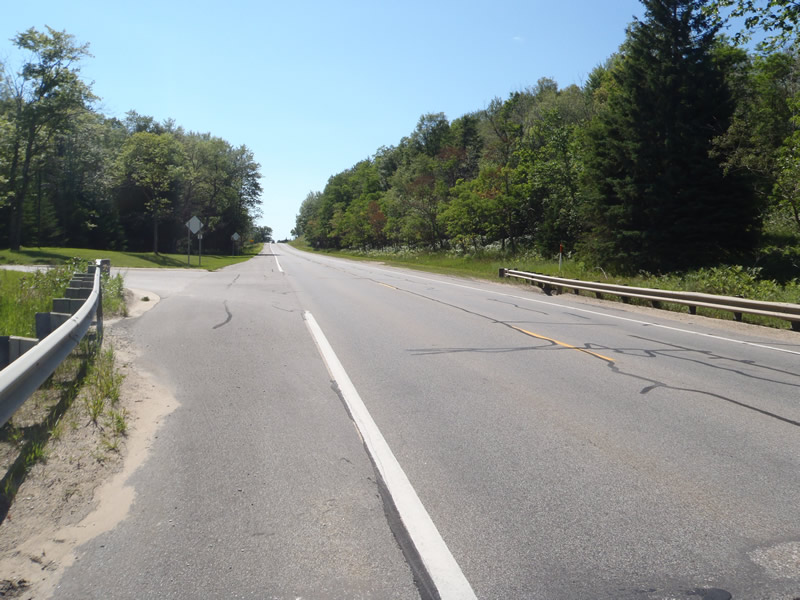

Road Approach - Right
Crossing Information
Road Width at Culvert: 32 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: Bridge
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 300 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 500 ft.
Slope: 1-5%
Vegetation: partial
Culvert Information
Length: 34 ft.
Diameter: 35 ft.
Material: concrete
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 10 ft.
Embankment Slope: 1:1
Downstream
Fill Depth: 10 ft.
Embankment Slope: 1:1
Stream Information
Upstream
Stream Width: 35 ft.
Stream Depth: 2.5 in.
Stream Current: moderate
Stream Substrate: sand,gravel
Downstream
Stream Width: 35 ft.
Stream Depth: 2 in.
Stream Current: fast
Stream Substrate: gravel
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Pave Left Approach: 0 Lineal Feet
Pave Right Approach: 0 Lineal Feet
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Extend culvert(s)? no
Lineal feet to extend: 0

Total Points:0
Severity:Moderate
This page last updated on 2/9/2022.
