Road Stream Crossing Site B-024

Betsie River Watershed, Peppermint Creek tributary
Lindy Rd
Weldon Twp, Benzie County
Information collected by:
GPS Coordinates: 44.52048279 , -85.94002025
T25N R14W Sec 36
Adjacent Land Owned by Local Government
Severity: Minor
Cost: $0.00
Site Location

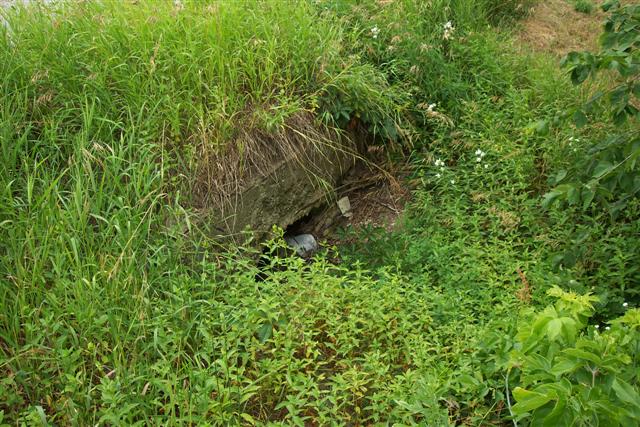

Inlet

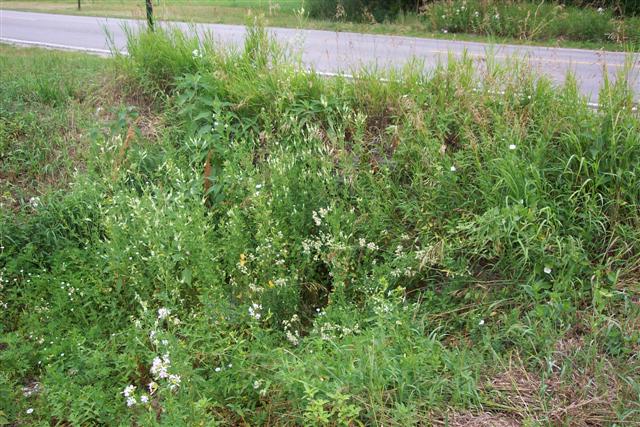

Outlet

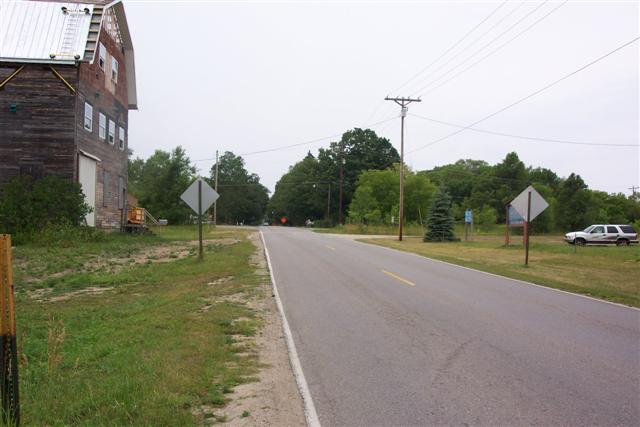

Road Approach - Left

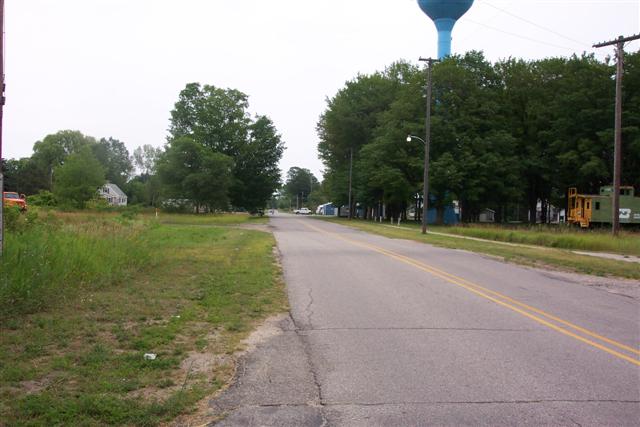

Road Approach - Right
Crossing Information
Road Width at Culvert: 20 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (twin culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Comments: Stream is dry.
Approaches
Left Approach
Length: 250 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 500 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 30 ft.
Diameter: 15, 17 ft.
Material: galvanized
Condition :poor
Flow: clear
Embankments
Upstream
Fill Depth: 4 ft.
Embankment Slope: vertical
Downstream
Fill Depth: 4 ft.
Embankment Slope: vertical
Stream Information
Upstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Stream Substrate: muck
Downstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: Culverts are rusting out.

Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 1
Extend culvert(s)? no
Lineal feet to extend: 1

Severity:Minor
This page last updated on 10/16/2014.
