Road Stream Crossing Site B-027

Betsie River Watershed, Peppermint Creek
Railroadgrade off Lindy Rd
Weldon Twp, Benzie County
Information collected by:
GPS Coordinates: 44.51806015 , -85.94043897
T25N R14W Sec 36
Severity: Moderate
Cost: $1,400.00
Site Location

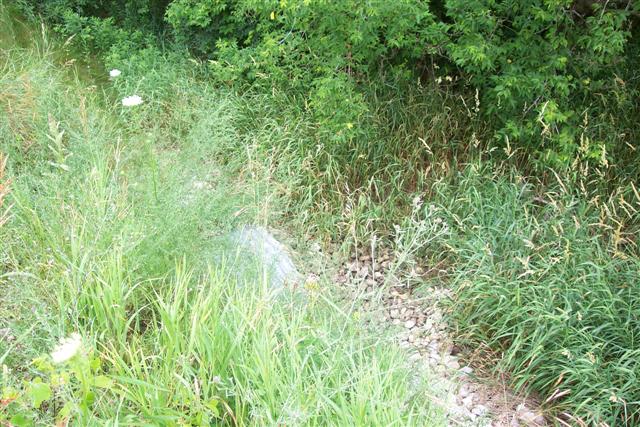

Inlet

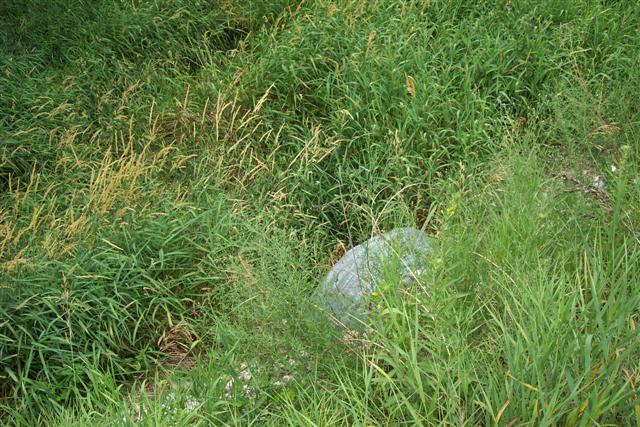

Outlet

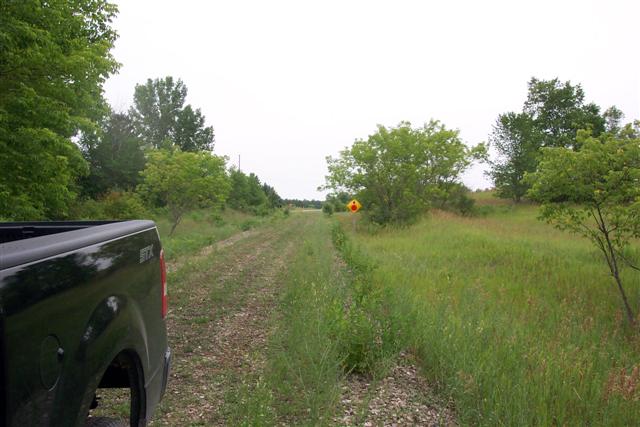

Road Approach - Left

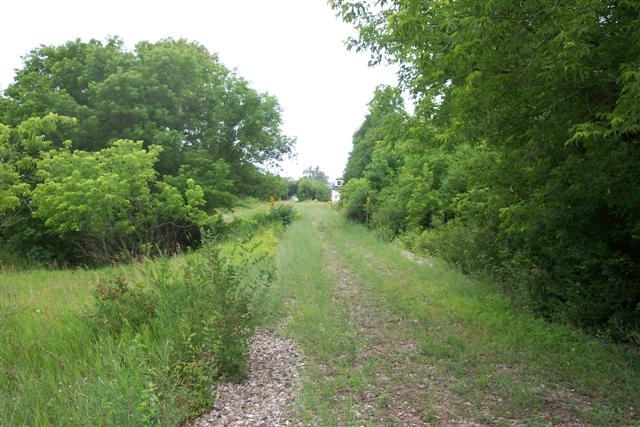

Road Approach - Right
Crossing Information
Road Width at Culvert: 11 ft.
Road Surface: Gravel
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Is this crossing constricted? no
Are there adjacent wetlands? no
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Culvert Information
Flow: clear
Embankments
Upstream
Fill Depth: 0 ft.
Embankment Slope: 1:1
Downstream
Fill Depth: 0 ft.
Embankment Slope: 1:1
Stream Information
Upstream
Stream Width: 6 ft.
Stream Depth: 1 in.
Stream Current: slow
Stream Substrate: sand
Downstream
Stream Width: 6 ft.
Stream Depth: 1 in.
Stream Current: slow
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? yes
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: moderate
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: Rock riprap, revegetate bank. Garbage clean-up.

Severity:Moderate
This page last updated on 10/16/2014.
