Road Stream Crossing Site B-031

Betsie River Watershed, Peppermint Creek
Wells Rd
Weldon Twp, Benzie County
Information collected by:
GPS Coordinates: 44.51593372 , -85.94417351
T25N R14W Sec 36
Severity: Minor
Cost: $0.00
Site Location

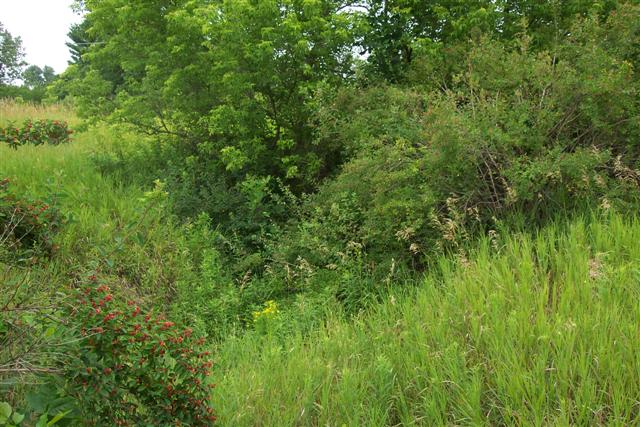

Inlet

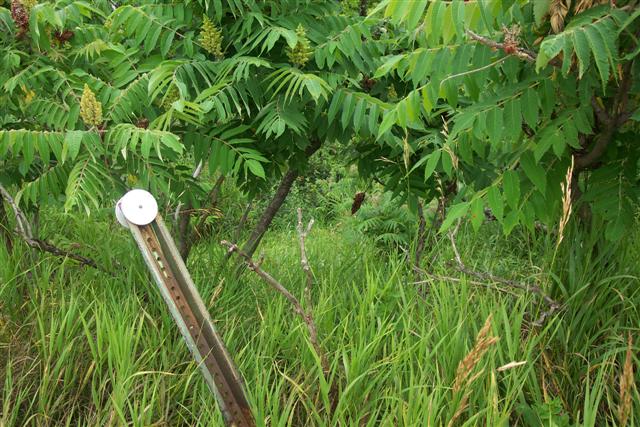

Outlet

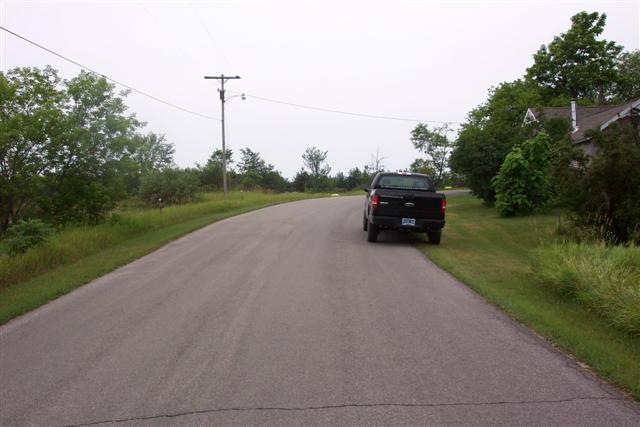

Road Approach - Left

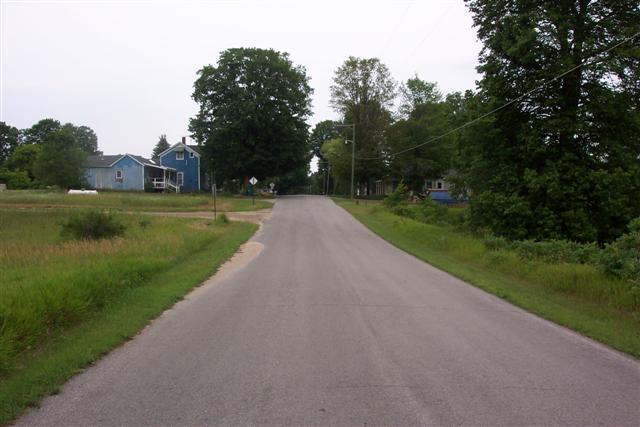

Road Approach - Right
Crossing Information
Road Width at Culvert: 22 ft.
Road Surface: Paved
Maintenance: year around
Low Point: 50 ft. on right approach
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Comments: Stream is dry.
Approaches
Left Approach
Length: 300 ft.
Slope: 6-10%
Vegetation: heavy
Right Approach
Length: 270 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 55 ft.
Diameter: 24 ft.
Material: galvanized
Condition :fair
Flow: clear
Embankments
Upstream
Fill Depth: 8 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 10 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Downstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Comments: Stream is dry.

Severity:Minor
This page last updated on 10/16/2014.
