Road Stream Crossing Site B-056
Betsie River Watershed, Betsie River tributary
North County Line Rd
Weldon Twp,
Benzie County
Information collected by:
GPS Coordinates: 44.5147713
, -86.0592264
T24N
R14W
Sec 6
Adjacent Land Owned by Private
Severity: Moderate
Cost: $10,000.00
Site Location
Crossing Information
Road Width at Culvert: 33 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches

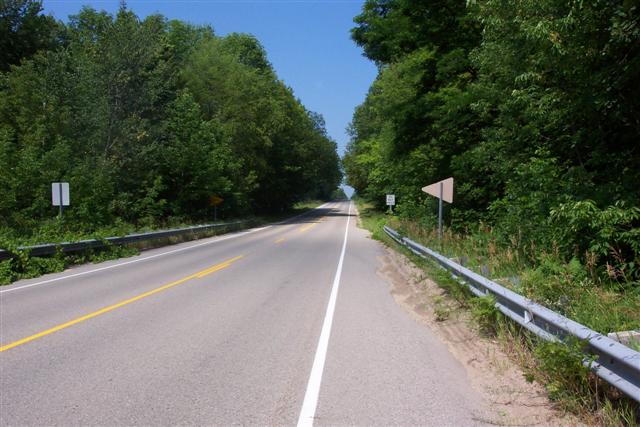

Left Approach
Length: 925 ft.
Slope: 0%
Vegetation: partial

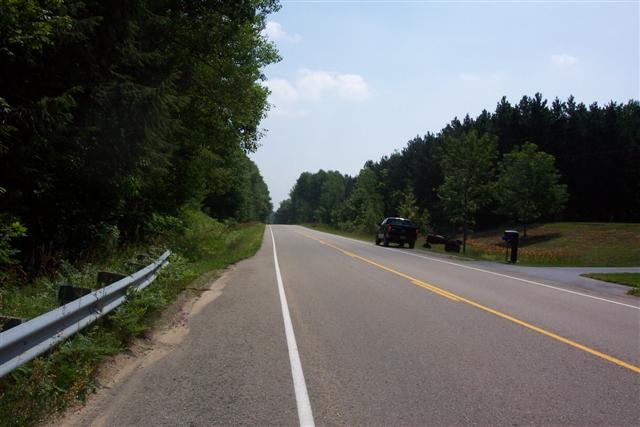

Right Approach
Length: 1000 ft.
Slope: 1-5%
Vegetation: partial

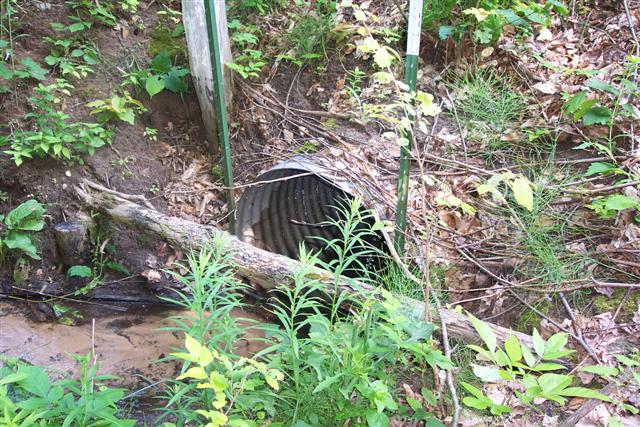

Culvert Information
Length: 80 ft.
Diameter: 30 ft.
Material: galvanized
Condition :fair
Flow: fish passage problem
Embankments
Upstream
Fill Depth: 30 ft.
Embankment Slope: 1:1
Downstream
Fill Depth: 40 ft.
Embankment Slope: 1:1
Stream Information
Upstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: moderate
Stream Substrate: sand
Downstream
Stream Width: 4 ft.
Stream Depth: 0.5 in.
Stream Current: moderate
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no

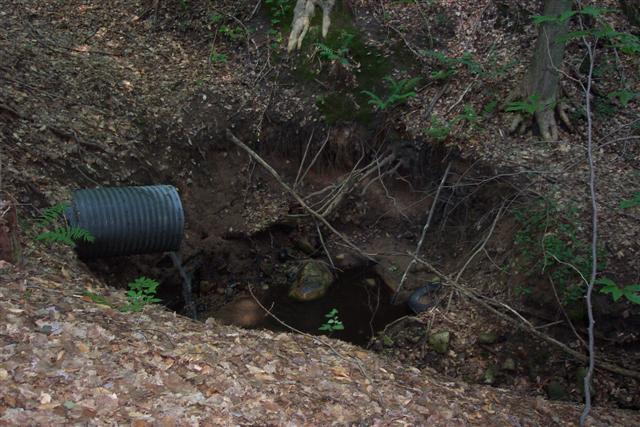

Is there erosion at the culvert outlet? yes
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? yes
Is there sand over the crossing? no
Other Conditions: Perched culvert.
Extent of Erosion: moderate
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 1
Extend culvert(s)? no
Lineal feet to extend: 0
Severity:Moderate
This page last updated on 2/9/2022.
