Road Stream Crossing Site B-063

Betsie River Watershed, Betsie River
M-115
Weldon Twp, Benzie County
Information collected by:
GPS Coordinates: 44.55726818 , -86.05343027
T25N R14W Sec 19
Adjacent Land Owned by Private
Severity: Moderate
Cost: $0.00
Site Location

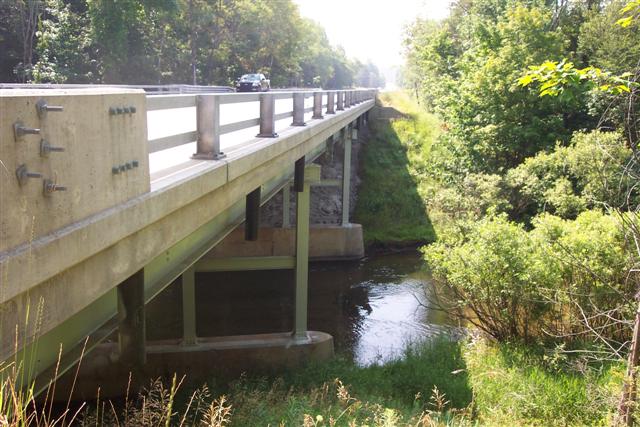

Inlet

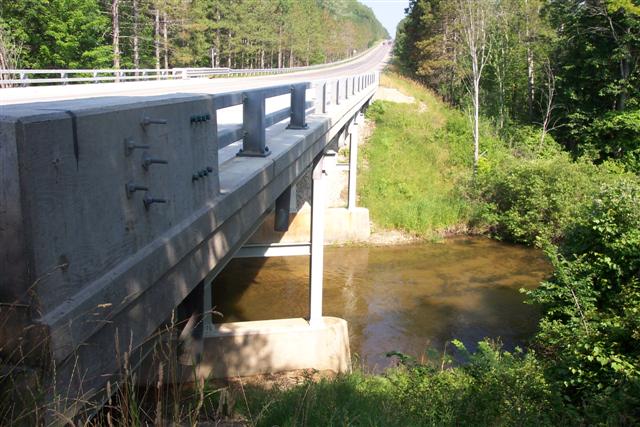

Outlet

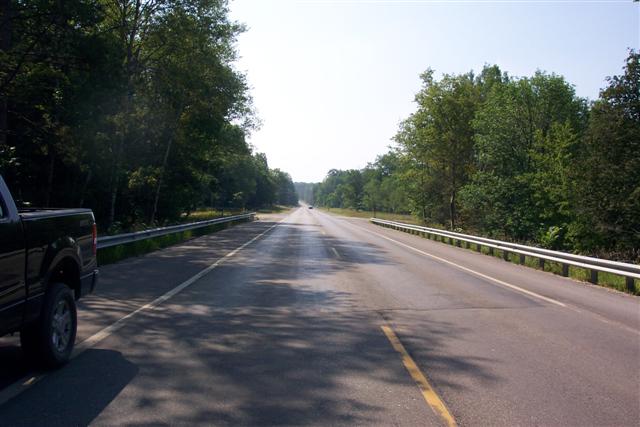

Road Approach - Left

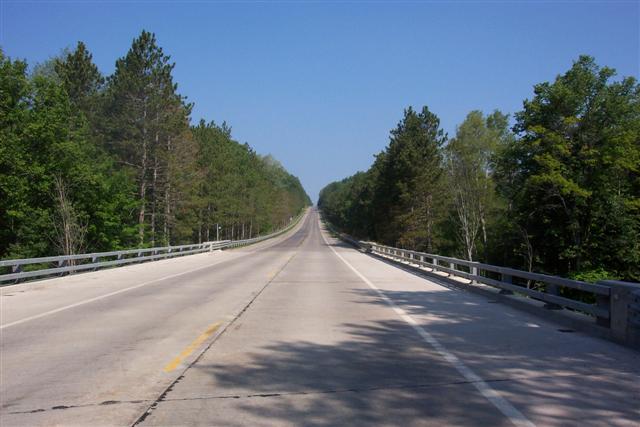

Road Approach - Right
Crossing Information
Road Width at Culvert: 34 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: Bridge
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 3700 ft.
Slope: 6-10%
Vegetation: heavy
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: partial
Culvert Information
Flow: clear
Embankments
Upstream
Fill Depth: 0 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 0 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 60 ft.
Stream Depth: 3 in.
Stream Current: moderate
Stream Substrate: sand
Downstream
Stream Width: 65 ft.
Stream Depth: 3 in.
Stream Current: moderate
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: Concrete on bridge edge crumbling.

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0

Severity:Moderate
This page last updated on 10/16/2014.
