Road Stream Crossing Site B-078

Betsie River Watershed, Cold Creek
Center St
Benzonia Twp, Benzie County
Information collected by:
GPS Coordinates: 44.62948008 , -86.09605221
T26N R15W Sec 26
Severity: Minor
Cost: $0.00
Site Location

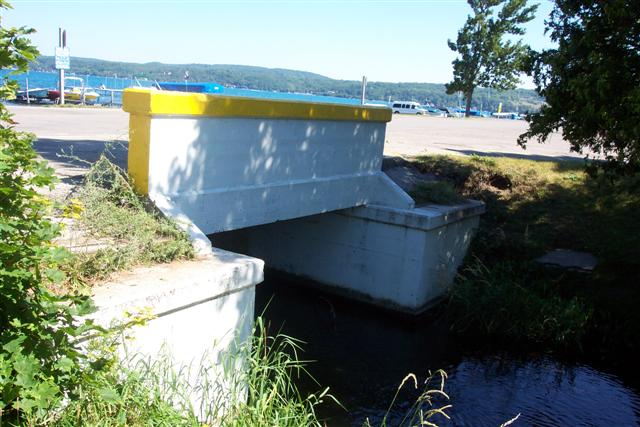

Inlet

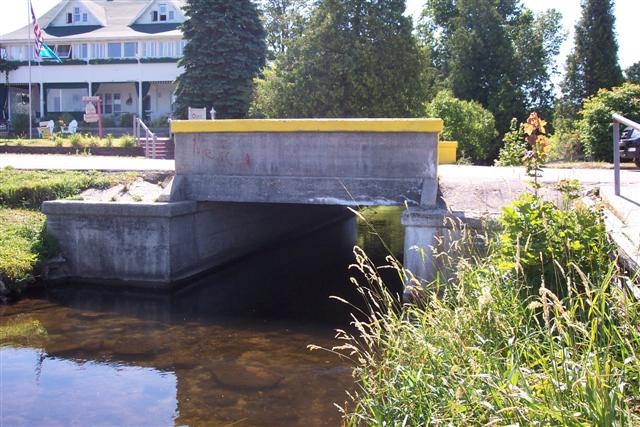

Outlet

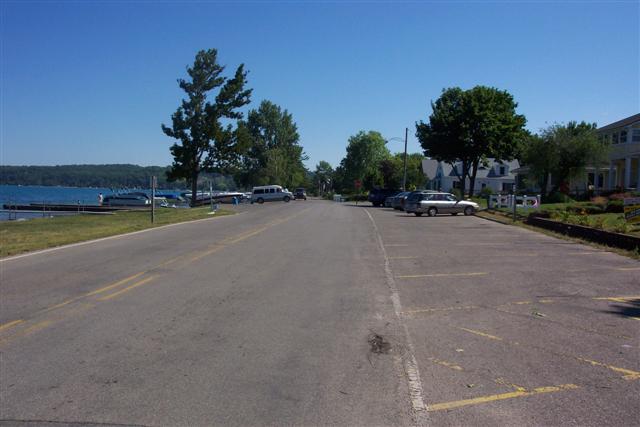

Road Approach - Left
Road Approach - Right
Crossing Information
Road Width at Culvert: 38 ft.
Road Surface: Paved
Maintenance: year around
Low Point: Left Approach
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: Bridge
Is this crossing constricted? no
Are there adjacent wetlands? no
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: partial
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: partial
Culvert Information
Embankments
Upstream
Fill Depth: 0 ft.
Embankment Slope: 2:1
Downstream
Fill Depth: 0 ft.
Embankment Slope: 2:1
Stream Information
Upstream
Stream Width: 10 ft.
Stream Depth: 1 in.
Stream Current: slow
Stream Substrate: sand,gravel
Downstream
Stream Width: 12 ft.
Stream Depth: 1 in.
Stream Current: slow
Stream Substrate: sand,gravel
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0

Severity:Minor
This page last updated on 10/16/2014.
