Road Stream Crossing Site B-095

Betsie River Watershed, Betsie River tributary
Grace Rd
Gilmore Twp, Benzie County
Information collected by:
GPS Coordinates: 44.60465899 , -86.18475302
T25N R16W Sec 1
Severity: Minor
Cost: $100.00
Site Location

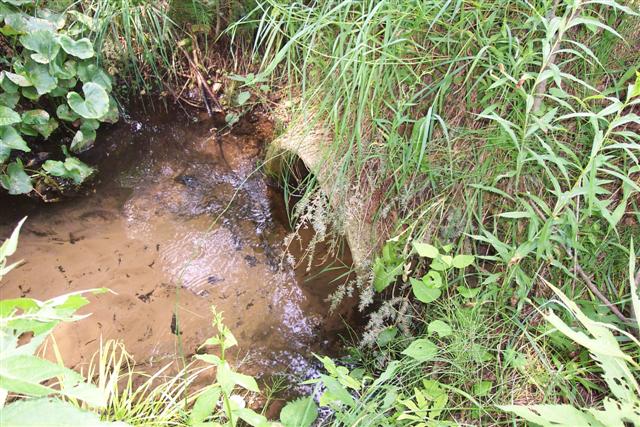

Inlet

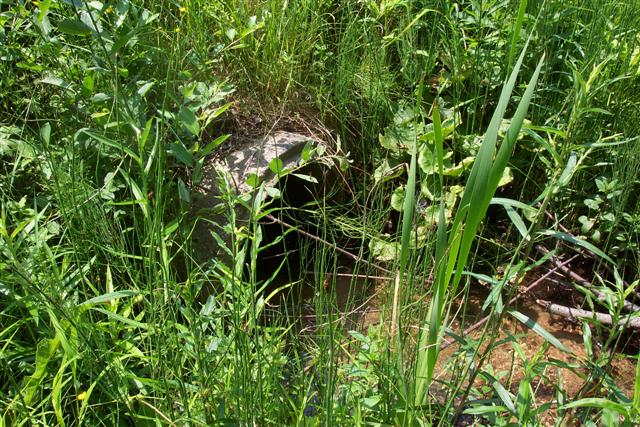

Outlet

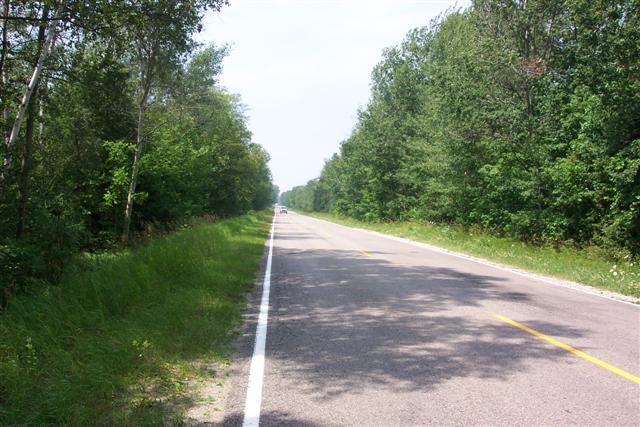

Road Approach - Left

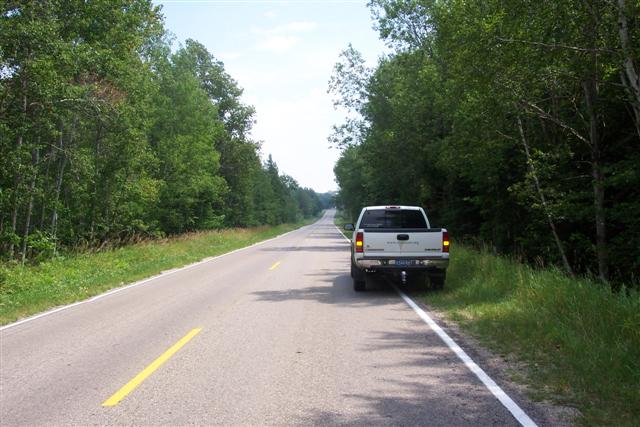

Road Approach - Right
Crossing Information
Road Width at Culvert: 23 ft.
Road Surface: Paved
Maintenance: year around
Low Point: 100 ft. on right approach
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Culvert Information
Length: 40 ft.
Diameter: 28 ft.
Material: concrete
Condition :fair
Flow: clear
Embankments
Upstream
Fill Depth: 8 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 8 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 3 ft.
Stream Depth: 1 in.
Stream Current: moderate
Downstream
Stream Width: 3 ft.
Stream Depth: 0.5 in.
Stream Current: moderate
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: Some debris on-site.

Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: Minimal site clean-up.

Severity:Minor
