Road Stream Crossing Site B-098

Betsie River Watershed, Betsie River/Lake
M-22
Crystal Lake Twp, Benzie County
Information collected by:
GPS Coordinates: 44.62027155 , -86.22160702
T26N R16W Sec 27
Severity: Minor
Cost: $0.00
Site Location

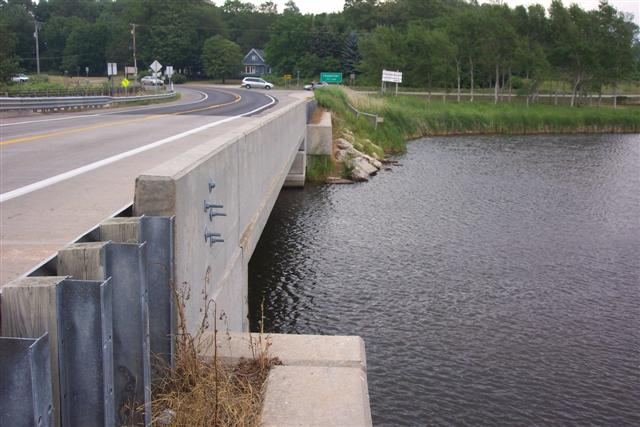

Inlet

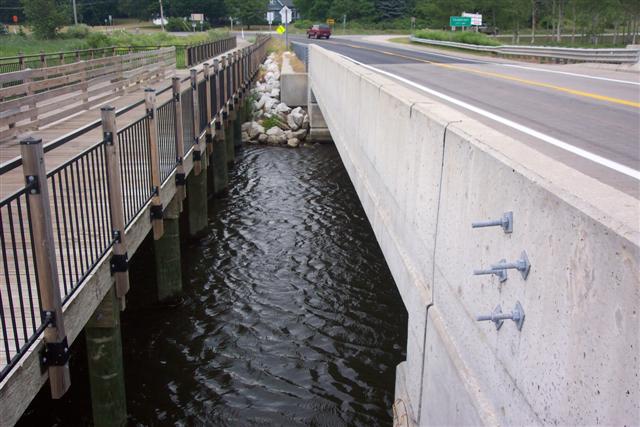

Outlet

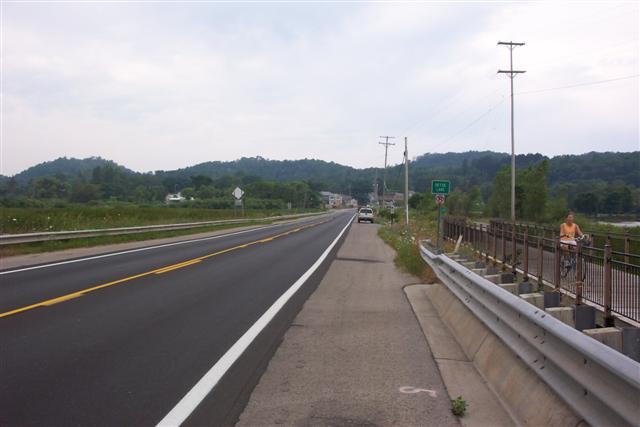

Road Approach - Left

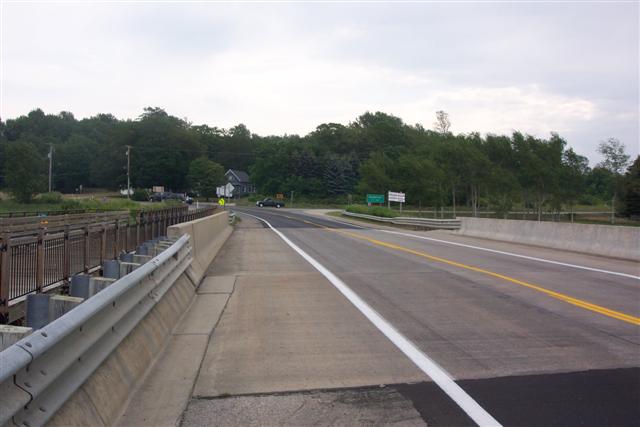

Road Approach - Right
Crossing Information
Road Width at Culvert: 37 ft.
Road Surface: Paved
Maintenance: year around
Low Point: 50 ft. on right approach
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: Bridge
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 250 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Embankments
Upstream
Fill Depth: 0 ft.
Embankment Slope: >2:1
Downstream
Fill Depth: 0 ft.
Embankment Slope: >2:1
Stream Information
Upstream
Stream Width: 1000 ft.
Stream Depth: 3 in.
Stream Current: slow
Downstream
Stream Width: 1000 ft.
Stream Depth: 4 in.
Stream Current: slow
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0

Severity:Minor
This page last updated on 10/16/2014.
