Road Stream Crossing Site G-004

Betsie River Watershed, Hall Creek
Hall Creek Rd
Grant Twp, Grand Traverse County
Information collected by:
GPS Coordinates: 44.57837147 , -85.80308409
T25N R12W Sec 7
Adjacent Land Owned by Private
Severity: Minor
Cost: $0.00
Site Location

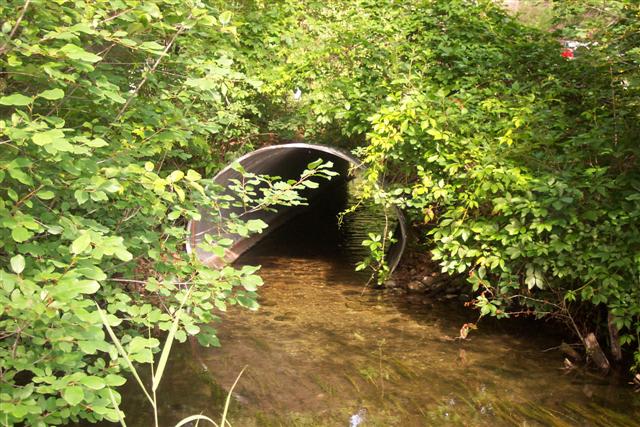

Inlet

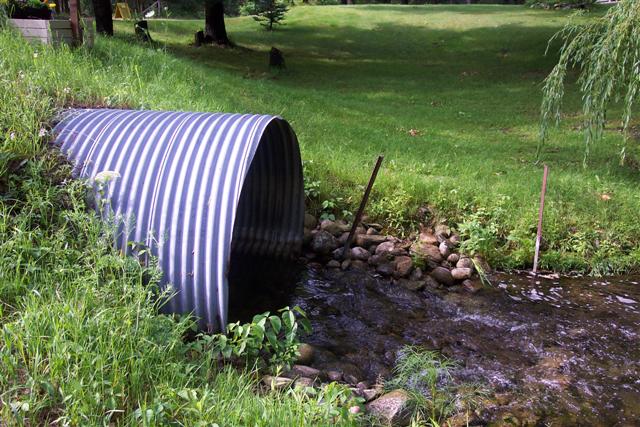

Outlet

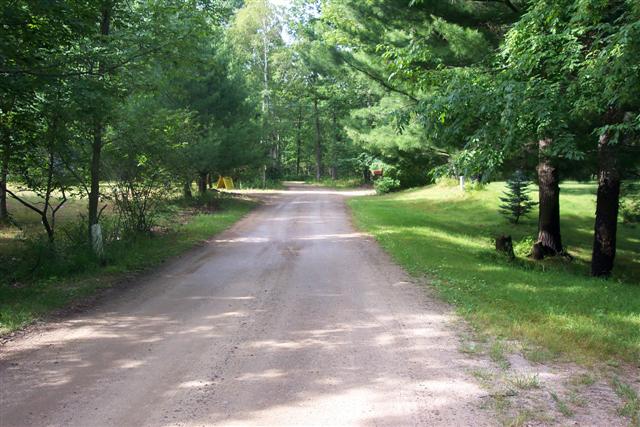

Road Approach - Left

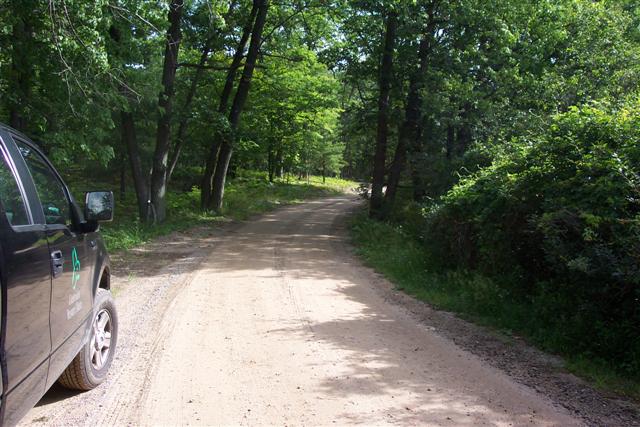

Road Approach - Right
Crossing Information
Road Width at Culvert: 16 ft.
Road Surface: Sand
Maintenance: seasonal
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 160 ft.
Slope: 1-5%
Vegetation: partial
Right Approach
Length: 210 ft.
Slope: 1-5%
Vegetation: partial
Culvert Information
Length: 60 ft.
Diameter: 84 ft.
Material: galvanized
Condition :fair
Flow: obstructed
Embankments
Upstream
Fill Depth: 6 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 6 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 5 ft.
Stream Depth: 1 in.
Stream Current: moderate
Stream Substrate: sand
Downstream
Stream Width: 6 ft.
Stream Depth: 1 in.
Stream Current: moderate
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? yes

Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: Move rock from culvert opening on downstream end.
Comments: The creek flow is partially blocked on the downstream end.

Severity:Minor
This page last updated on 10/16/2014.
