Road Stream Crossing Site M-043

Betsie River Watershed, Betsie River
M-115
Springdale Twp, Manistee County
Information collected by:
GPS Coordinates: 44.5074606 , -85.96838212
T24N R14W Sec 2
Adjacent Land Owned by Private
Severity: Moderate
Cost: $0.00
Site Location

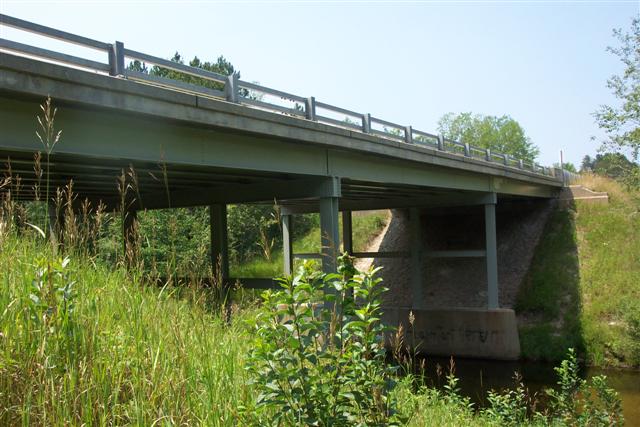

Inlet

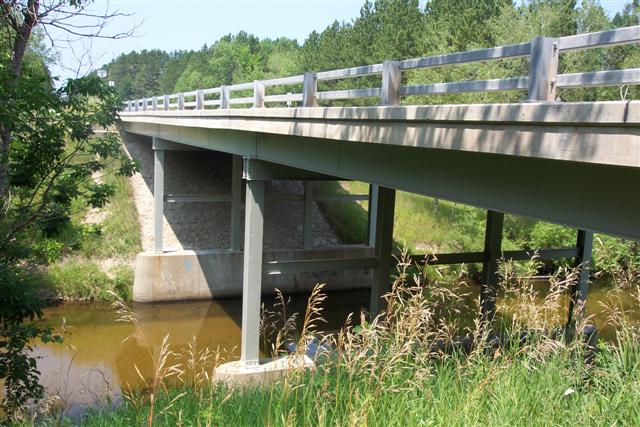

Outlet

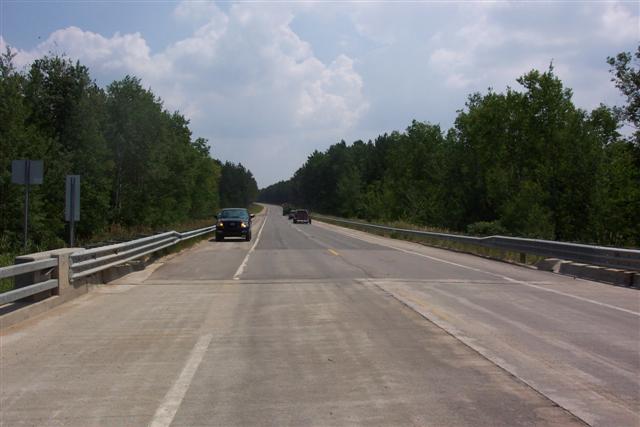

Road Approach - Left

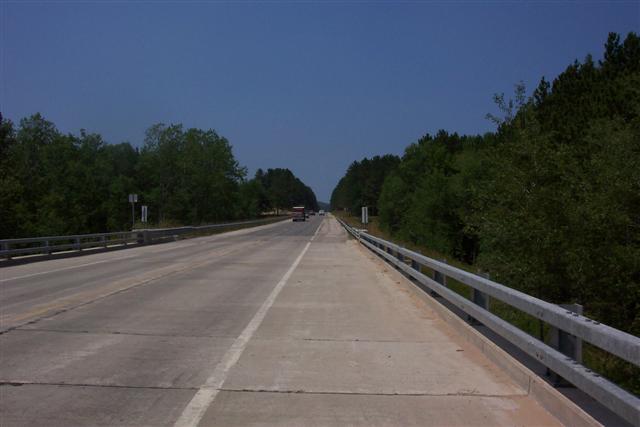

Road Approach - Right
Crossing Information
Road Width at Culvert: 41 ft.
Road Surface: Paved
Maintenance: year around
Low Point: 100 ft. on left approach
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: Bridge
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 800 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Embankments
Upstream
Fill Depth: 0 ft.
Embankment Slope: 2:1
Downstream
Fill Depth: 0 ft.
Embankment Slope: 2:1
Stream Information
Upstream
Stream Width: 50 ft.
Stream Depth: 2.5 in.
Stream Current: slow
Stream Substrate: sand
Downstream
Stream Width: 50 ft.
Stream Depth: 2.5 in.
Stream Current: slow
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: Edges of concrete bridge crumbling.

Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0

Severity:Moderate
This page last updated on 10/16/2014.
