Road Stream Crossing Site M-052

Betsie River Watershed, Betsie River tributary
Psutka Rd
Springdale Twp, Manistee County
Information collected by:
GPS Coordinates: 44.48715273 , -86.02972754
T24N R14W Sec 8
Adjacent Land Owned by Private
Severity: Minor
Cost: $0.00
Site Location

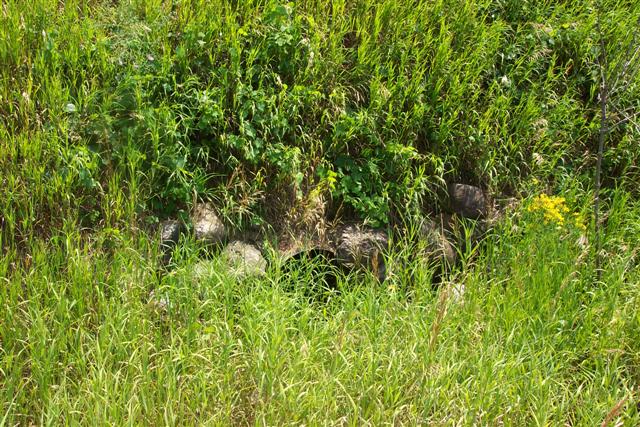

Inlet

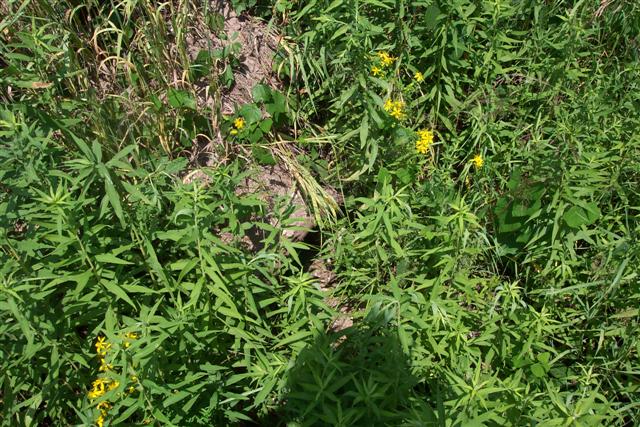

Outlet

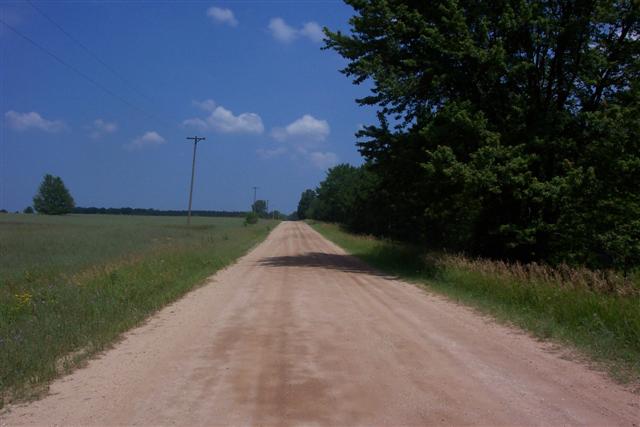

Road Approach - Left

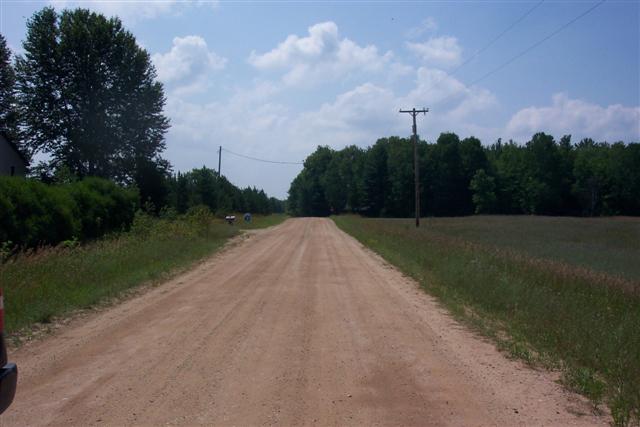

Road Approach - Right
Crossing Information
Road Width at Culvert: 23 ft.
Road Surface: Sand
Gravel
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Comments: Stream is dry.
Approaches
Left Approach
Length: 50 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 50 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 60 ft.
Diameter: 24 ft.
Material: galvanized
Condition :poor
Embankments
Upstream
Fill Depth: 11 ft.
Embankment Slope: 1:1
Downstream
Fill Depth: 11 ft.
Embankment Slope: 1:1
Stream Information
Upstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Downstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: Culvert corroded.

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Comments: Stream has been dry for awhile.

Severity:Minor
This page last updated on 10/16/2014.
