Road Stream Crossing Site E24

Maple River Watershed, Maple River

Woodland Rd

Maple River Twp, Emmet County

GPS Coordinates: 45.52880279 , -84.77340037

T36N R04W Sec 10

Road Width at Culvert: 22 ft.

Road Surface: Paved

Maintenance: year around

Low Point: Other

Existing Drainage Control? no

Any Failings? no

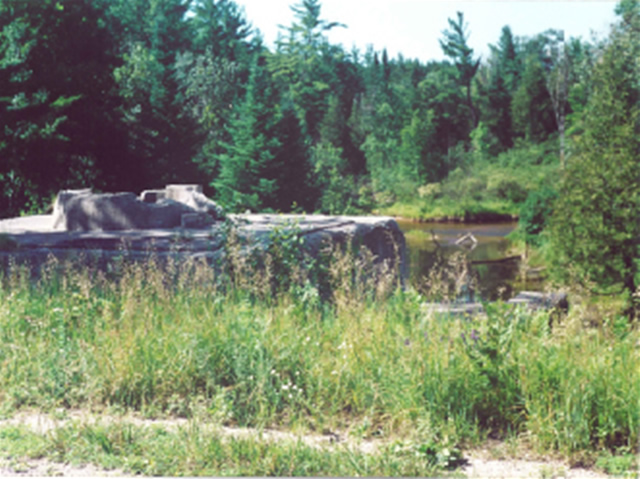

Type of Crossing: Other (old dam)

Is this crossing constricted? no

Are there adjacent wetlands? no

Comments: upstream end is lake

Length: 0 ft.

Slope: 0%

Vegetation: partial

Length: 0 ft.

Slope: 0%

Vegetation: partial

Length: 250 ft.

Material: old dam

Condition :poor

Flow: fish passage problem

Fill Depth: 20 ft.

Embankment Slope: 1:1

Stream Width: 0 ft.

Stream Depth: 0 in.

Stream Current: slow

Stream Substrate: sand

Stream Width: 15 ft.

Stream Depth: 1 in.

Stream Current: slow

Stream Substrate: sand, muck

Is there Streambank erosion beside the crossing? no

Is there embankment erosion? yes

Is there erosion at the culvert outlet? yes

Is there erosion at the shoulder and/or ditch? no

Is there pooling at the outlet? no

Is there sand over the crossing? no

Other Conditions: dam is buried but not completely closed off



Extent of Erosion: moderate

Action Recommended? no

Add pavement? no

Add paved raised edge? no

Number of erosion control structures: 0

Number of sediment basins: 0

Number of diversion outlets: 0

Increase fill? no

Replace culvert(s)? no

Dimensions of replacement: 0

Extend culvert(s)? no

Lineal feet to extend: 0

Other Treatments: seal off old dam inlet and remove dam and debri from river
