Road Stream Crossing Site P012

Pine River Watershed, Tributary to Big Beaver Creek

Old Mackinaw Trail

Leroy Twp, Osceola County

GPS Coordinates: 44.035952 , -85.45397931

T19N R10W Sec 13

Road Width at Culvert: 32 ft.

Road Surface: Paved

Maintenance: year around

Low Point: Other

Existing Drainage Control? no

Any Failings? no

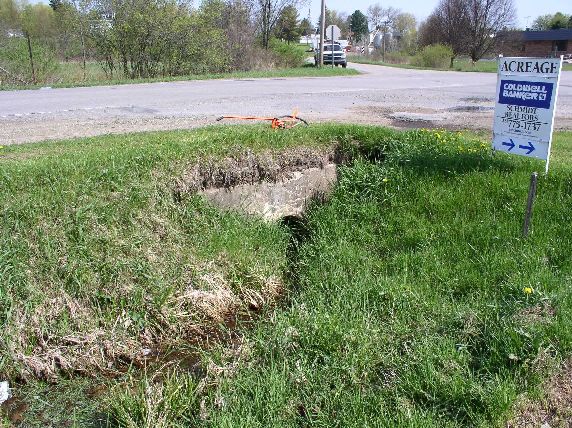

Type of Crossing: culvert(s) (single culvert)

Is this crossing constricted? no

Are there adjacent wetlands? yes

Comments: Lowpoint 100 ft to the north of culvert. Drainage ditch.

Length: 950 ft.

Slope: 1-5%

Vegetation: heavy

Length: 0 ft.

Slope: 0%

Vegetation: heavy

Length: 49 ft.

Diameter: 18 ft.

Material: concrete

Condition :fair

Flow: clear

Fill Depth: 3 ft.

Embankment Slope: 2:1

Fill Depth: 3 ft.

Embankment Slope: 2:1

Stream Width: 1 ft.

Stream Depth: 0.2 in.

Stream Current: slow

Stream Substrate: muck

Stream Width: 1 ft.

Stream Depth: 0.2 in.

Stream Current: slow

Stream Substrate: muck

Is there Streambank erosion beside the crossing? no

Is there embankment erosion? no

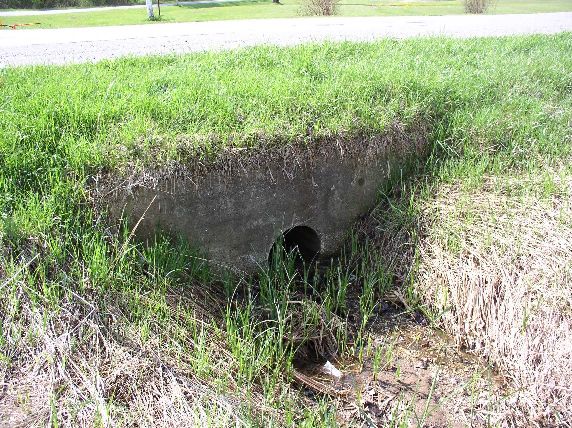

Is there erosion at the culvert outlet? no

Is there erosion at the shoulder and/or ditch? no

Is there pooling at the outlet? no

Is there sand over the crossing? no

Other Conditions: none



Extent of Erosion: minor

Action Recommended? yes

Add pavement? no

Add paved raised edge? no

Number of erosion control structures: 0

Number of sediment basins: 0

Number of diversion outlets: 0

Increase fill? no

Replace culvert(s)? no

Dimensions of replacement: 0

Extend culvert(s)? no

Lineal feet to extend: 0

Comments: no action
