Road Stream Crossing Site P013
Pine River Watershed, Tributary to Big Beaver Creek
15 Mile Rd
Leroy Twp,
Osceola County
Information collected by:
GPS Coordinates: 44.03091869
, -85.45958746
T19N
R10W
Sec 13
Adjacent Land Owned by Private
Severity: Minor
Cost: $0.00
Site Location
Crossing Information
Road Width at Culvert: 22 ft.
Road Surface: Gravel
Maintenance: year around
Low Point: Other
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Comments: Lowpoing 80 ft east.
Approaches

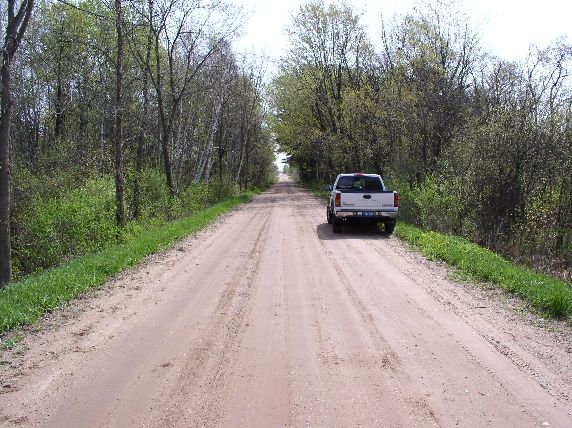

Left Approach
Length: 1000 ft.
Slope: 1-5%
Vegetation: heavy

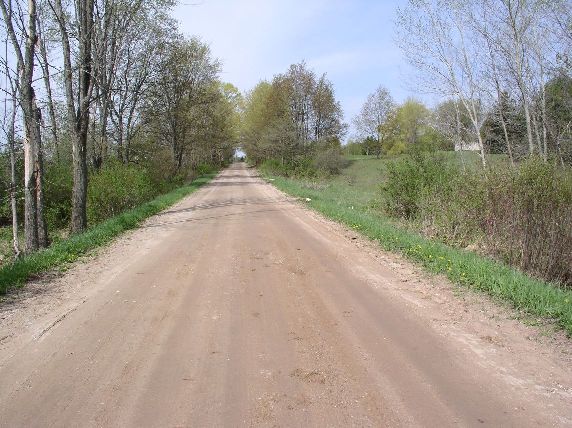

Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy

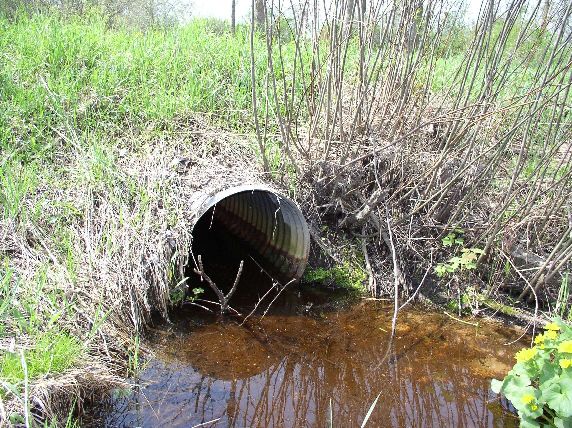

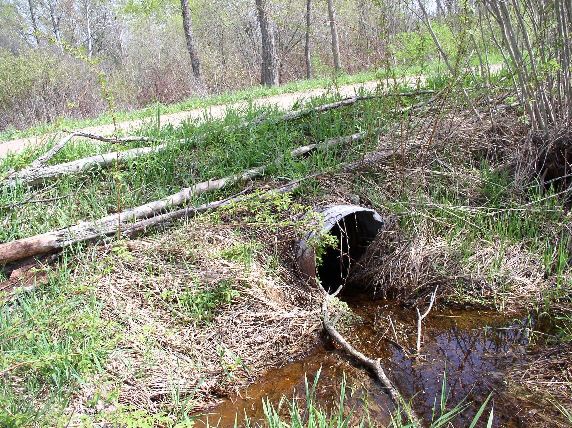

Culvert Information
Length: 40 ft.
Diameter: 24 ft.
Material: galvanized
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 3 ft.
Embankment Slope: 1:1
Downstream
Fill Depth: 3 ft.
Embankment Slope: 1:1
Stream Information
Upstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Downstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Extent of Erosion: minor
Cause of Erosion: road runoff
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Comments: no action
Severity:Minor
This page last updated on 2/9/2022.
