Road Stream Crossing Site P016

Pine River Watershed, Big Beaver Creek
Gilbert St
Leroy Twp, Osceola County
Information collected by:
GPS Coordinates: 44.03816421 , -85.44838473
T19N R10W Sec 13
Adjacent Land Owned by Private
Severity: Minor
Cost: $400.00
Site Location

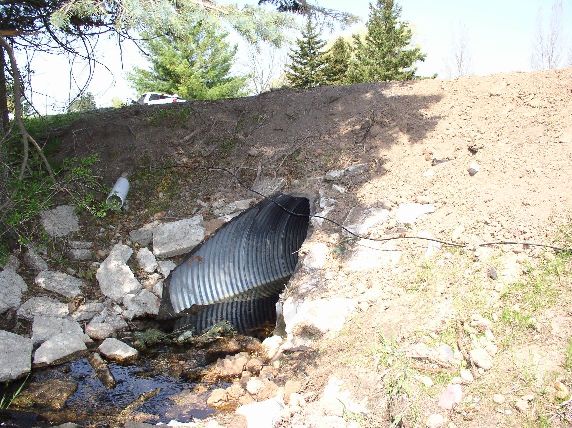

Inlet

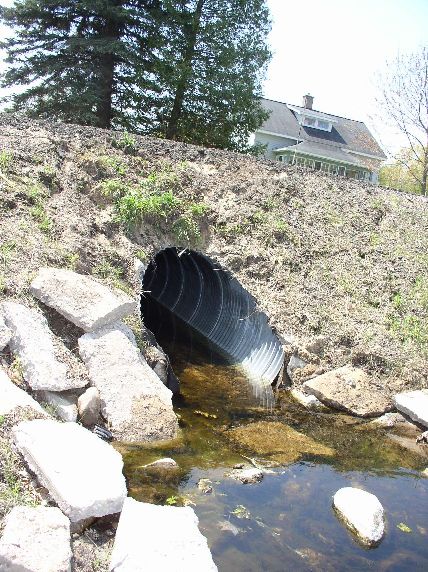

Outlet

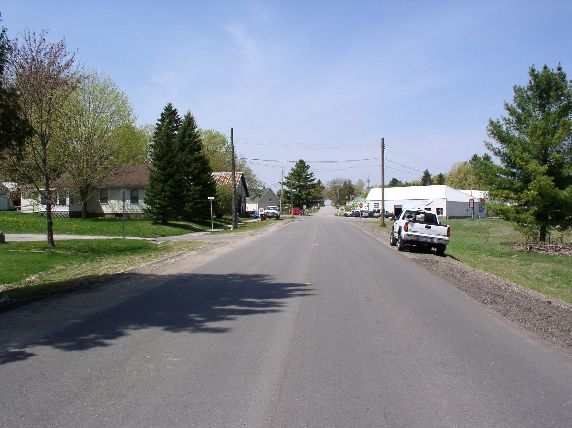

Road Approach - Left

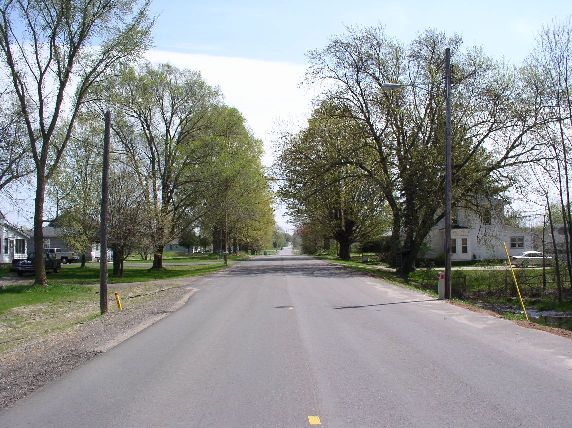

Road Approach - Right
Crossing Information
Road Width at Culvert: 30 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Comments: New culvert and road construction. Curbs and gutters installed.
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Culvert Information
Length: 50 ft.
Diameter: 48 ft.
Material: galvanized
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 6 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 6 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: sand
Downstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: sand
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: none- new culvert and ditch work

Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap, revegetation
Comments: fresh soil. No rock or silt fence

Severity:Minor
This page last updated on 2/9/2022.
