Road Stream Crossing Site P017

Pine River Watershed, Big Beaver Creek
Old Mackinaw Trail
Leroy Twp, Osceola County
Information collected by:
GPS Coordinates: 44.03886587 , -85.44867291
T19N R10W Sec 13
Adjacent Land Owned by Local Government
Severity: Moderate
Cost: $300.00
Site Location

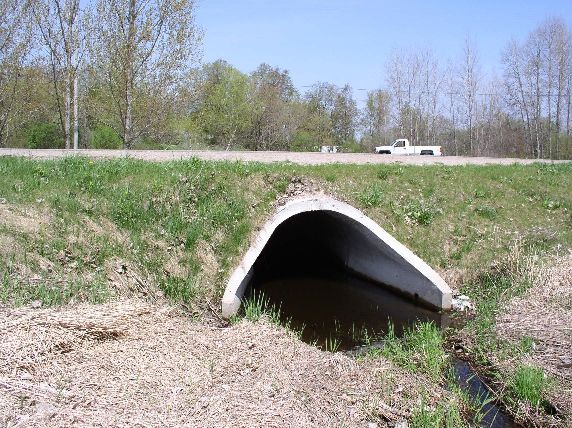

Inlet

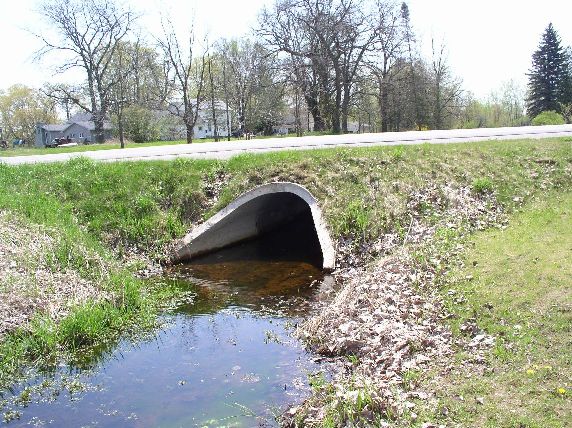

Outlet

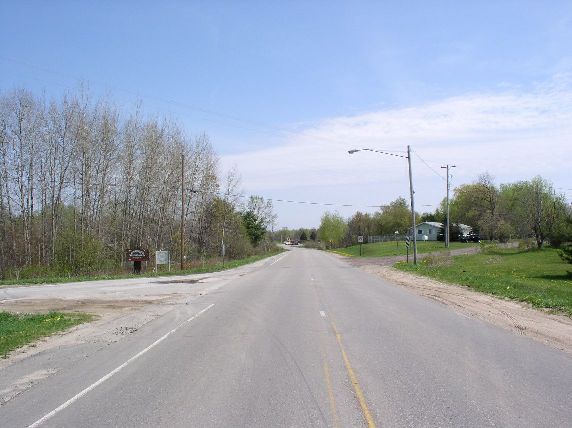

Road Approach - Left

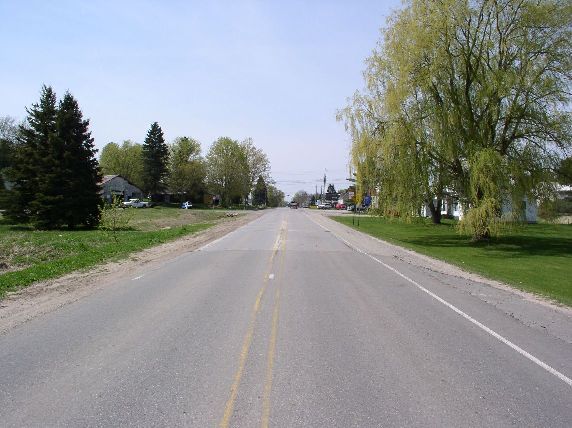

Road Approach - Right
Crossing Information
Road Width at Culvert: 30 ft.
Road Surface: Paved
Maintenance: year around
Low Point: Other
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Comments: Lowpoint south
Approaches
Left Approach
Length: 800 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: partial
Culvert Information
Length: 54 ft.
Diameter: 60 ft.
Material: concrete
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 4 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 4 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: sand,muck
Downstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: sand,muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? yes
Is there sand over the crossing? no

Extent of Erosion: moderate
Cause of Erosion: road runoff
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap
Comments: embankment erosion- washing out

Severity:Moderate
This page last updated on 2/9/2022.
