Road Stream Crossing Site P036
Pine River Watershed, Diamond Lake Outlet
US 131
Burdell Twp,
Osceola County
Information collected by:
GPS Coordinates: 44.08802769
, -85.47838005
T20N
R10W
Sec 26
Adjacent Land Owned by Private
Severity: Moderate
Cost: $0.00
Site Location
Crossing Information
Road Width at Culvert: 60 ft.
Road Surface: Paved
Maintenance: year around
Low Point: Other
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes

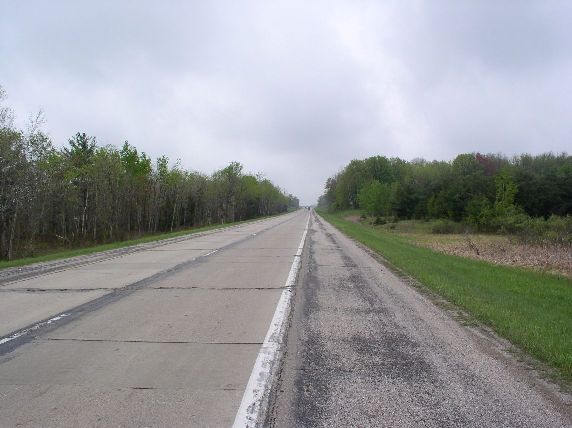

Comments: low point on south approach

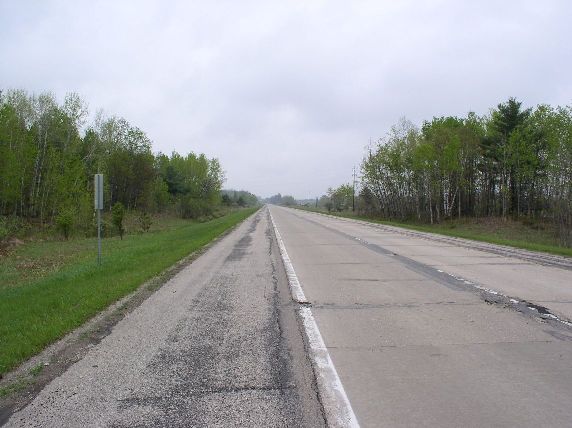

Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 1700 ft.
Slope: 1-5%
Vegetation: heavy

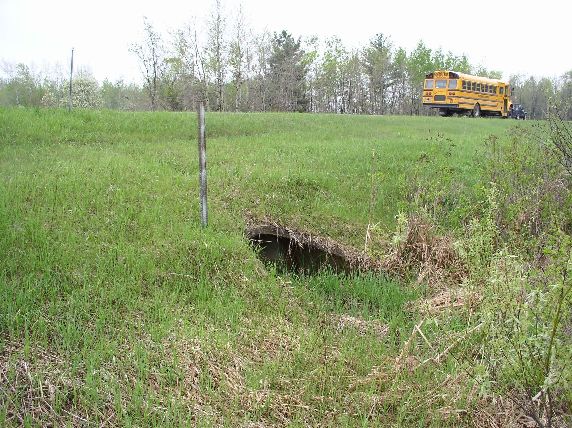

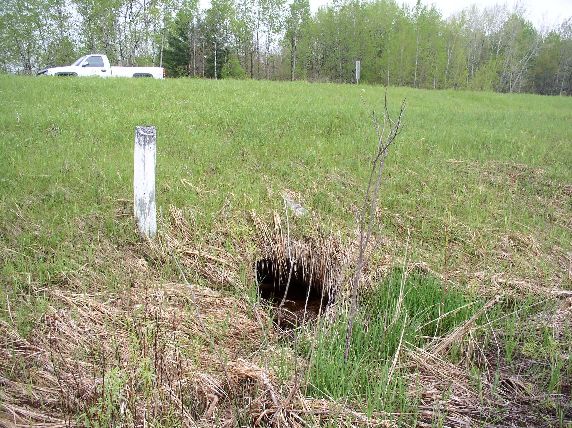

Culvert Information
Length: 60 ft.
Diameter: 40 ft.
Material: concrete
Condition :fair
Flow: clear
Embankments
Upstream
Fill Depth: 4 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 3 ft.
Embankment Slope: 2:1
Stream Information
Upstream
Stream Width: 4 ft.
Stream Depth: 1 in.
Stream Current: slow
Stream Substrate: muck
Downstream
Stream Width: 4 ft.
Stream Depth: 1 in.
Stream Current: slow
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: none
Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Comments: no action
Severity:Moderate
This page last updated on 2/9/2022.
