Road Stream Crossing Site P076
Pine River Watershed, Fairchild Creek
Hibma Rd
Burdell Twp,
Osceola County
Information collected by:
GPS Coordinates: 44.15398858
, -85.51348799
T20N
R10W
Sec 4
Adjacent Land Owned by Private
Severity: Moderate
Cost: $20,600.00
Site Location

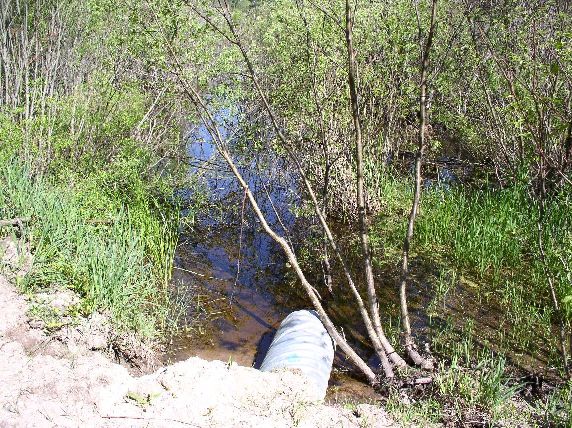

Inlet

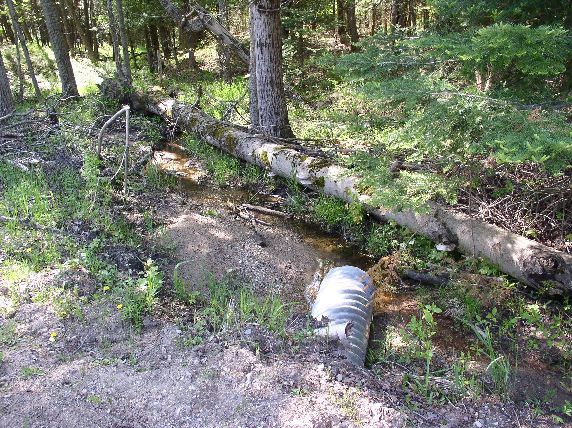

Outlet

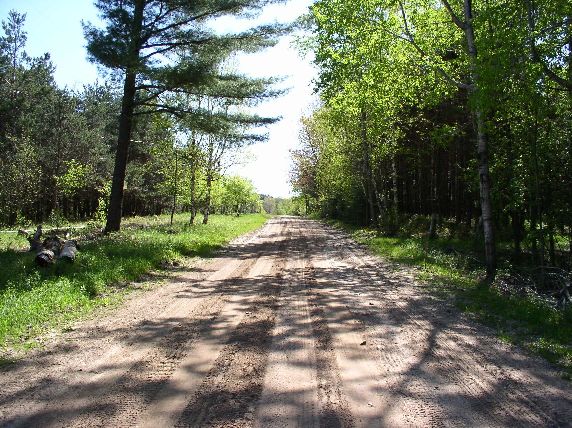

Road Approach - Left

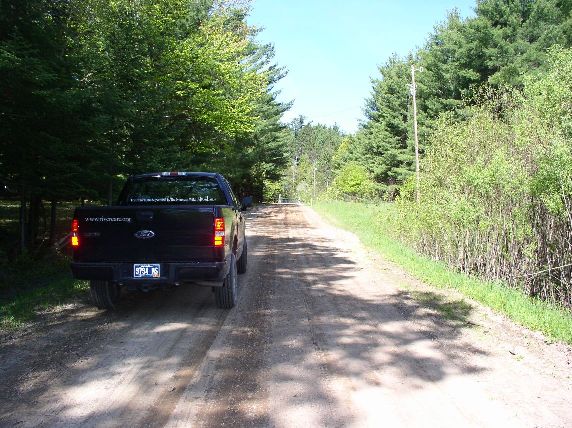

Road Approach - Right
Crossing Information
Road Width at Culvert: 16 ft.
Road Surface: Sand
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 200 ft.
Slope: 1-5%
Vegetation: partial
Right Approach
Length: 350 ft.
Slope: 1-5%
Vegetation: partial
Culvert Information
Length: 35 ft.
Diameter: 16 ft.
Material: galvanized
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 2 ft.
Embankment Slope: >2:1
Downstream
Fill Depth: 2 ft.
Embankment Slope: >2:1
Stream Information
Upstream
Stream Width: 10 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Downstream
Stream Width: 1 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? yes
Extent of Erosion: moderate
Cause of Erosion: road runoff
Recommended Treatments
Action Recommended? no
Add pavement? yes
Add paved raised edge? yes
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 4
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: rock riprap, revegetation
Severity:Moderate
This page last updated on 2/9/2022.
