Road Stream Crossing Site P081

Pine River Watershed, Tributary to Pine River
230th Ave
Burdell Twp, Osceola County
Information collected by:
GPS Coordinates: 44.12104668 , -85.54473406
T20N R10W Sec 18
Adjacent Land Owned by Private
Severity: Moderate
Cost: $17,000.00
Site Location

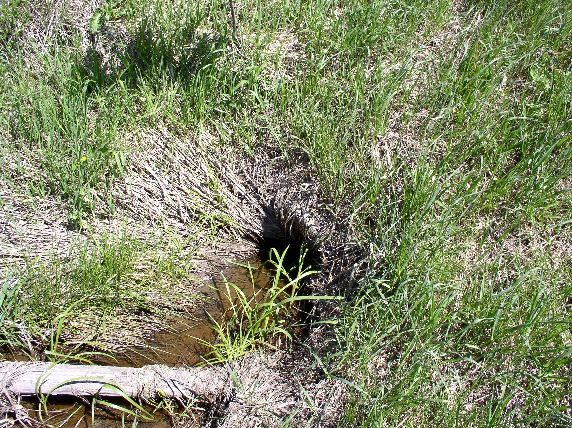

Inlet

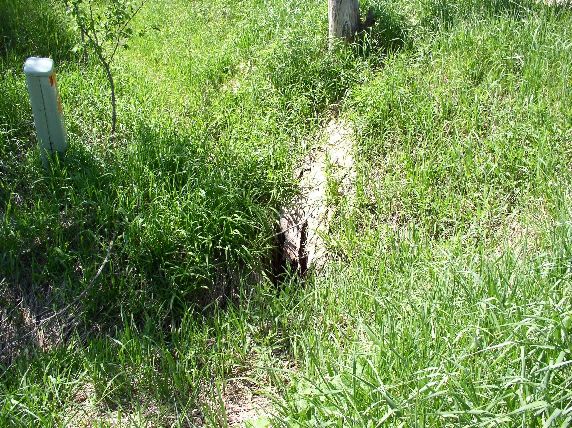

Outlet

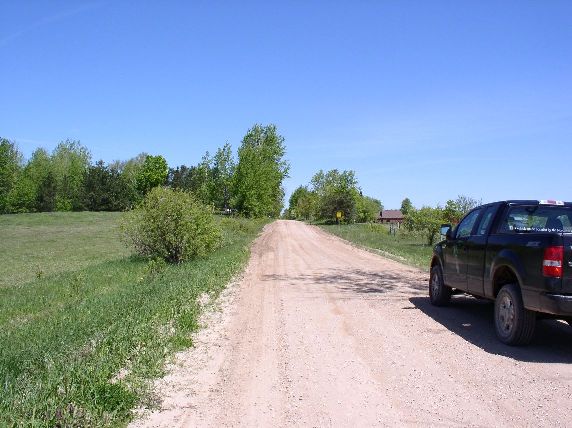

Road Approach - Left

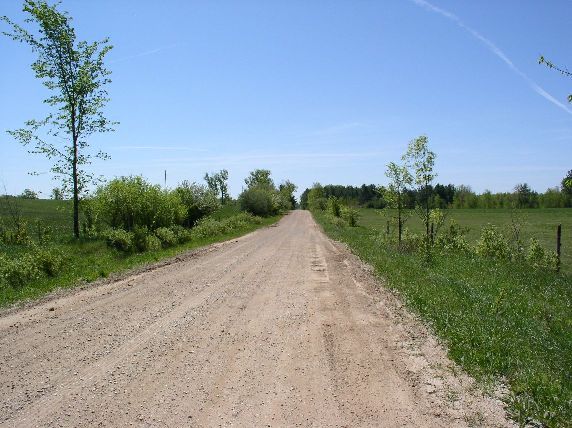

Road Approach - Right
Crossing Information
Road Width at Culvert: 18 ft.
Road Surface: Sand
Gravel
Maintenance: year around
Low Point: Other
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Approaches
Left Approach
Length: 450 ft.
Slope: 1-5%
Vegetation: partial
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: partial
Culvert Information
Length: 35 ft.
Diameter: 12 ft.
Material: galvanized
Condition :fair
Flow: fish passage problem
Embankments
Upstream
Fill Depth: 3 ft.
Embankment Slope: 1:1
Downstream
Fill Depth: 3 ft.
Embankment Slope: 1:1
Stream Information
Upstream
Stream Width: 1 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Downstream
Stream Width: 1 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: moderate
Recommended Treatments
Action Recommended? no
Add pavement? yes
Add paved raised edge? yes
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 1

Severity:Moderate
