Road Stream Crossing Site P101
Pine River Watershed, Pine River
End of 5 Mile Rd
Ellsworth Twp,
Lake County
Information collected by:
GPS Coordinates: 44.06805943
, -85.6103118
T19N
R11W
Sec 3
Adjacent Land Owned by Private
Severity: Severe
Cost: $1,800.00
Site Location

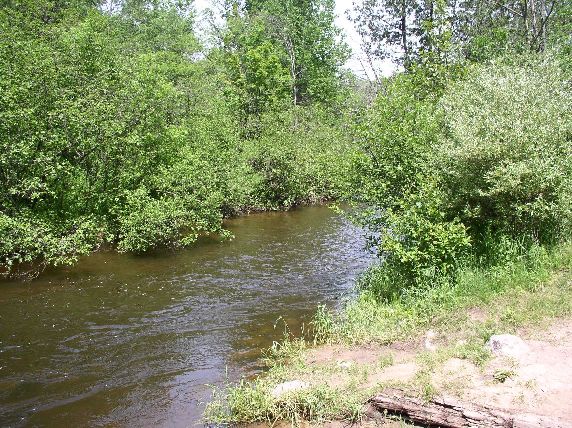

Inlet

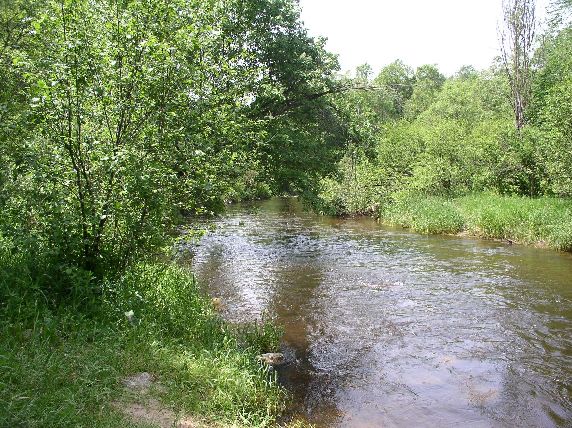

Outlet

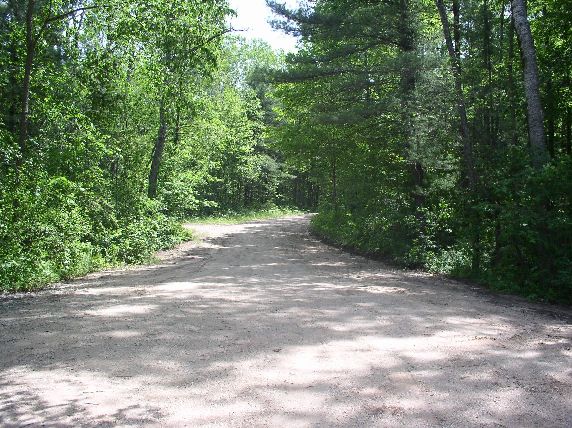

Road Approach - Left

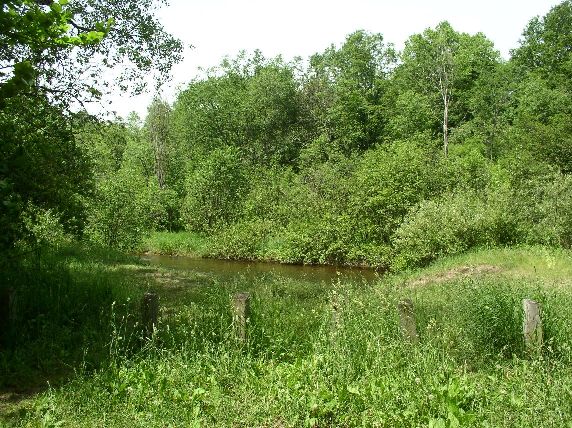

Road Approach - Right
Crossing Information
Road Width at Culvert: 30 ft.
Road Surface: Sand
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: Ford
(road end)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Comments: No right approach--road ends at river
Approaches
Left Approach
Length: 550 ft.
Slope: 1-5%
Vegetation: partial
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: partial
Culvert Information
Length: n/a ft.
Diameter: n/a ft.
Material: n/a
Condition :n/a
Embankments
Upstream
Fill Depth: 0 ft.
Downstream
Fill Depth: 0 ft.
Stream Information
Upstream
Stream Width: 30 ft.
Stream Depth: 3 in.
Stream Current: moderate
Stream Substrate: sand,gravel
Downstream
Stream Width: 30 ft.
Stream Depth: 3 in.
Stream Current: moderate
Stream Substrate: sand,gravel
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? yes
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Extent of Erosion: moderate
Cause of Erosion: foot traffic
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 1
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap, revegetation
Severity:Severe
This page last updated on 2/9/2022.
