Road Stream Crossing Site P110

Pine River Watershed, Tributary to Coe Creek
USFS Rd 5404
Dover Twp, Lake County
Information collected by:
GPS Coordinates: 44.15330345 , -85.58590961
T20N R11W Sec 2
Adjacent Land Owned by Federal
Severity: Moderate
Cost: $14,100.00
Site Location

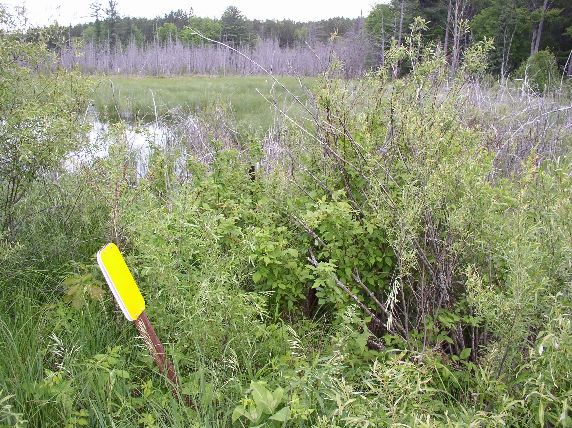

Inlet

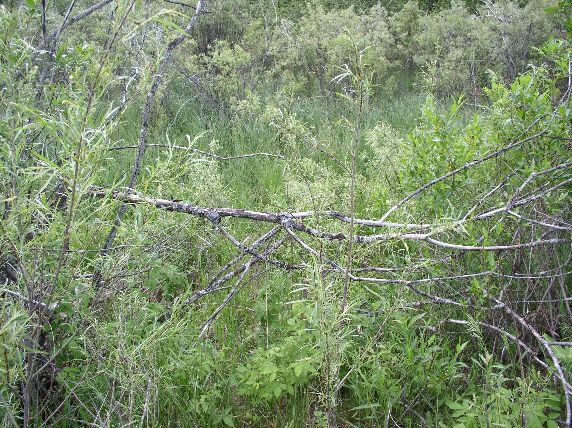

Outlet

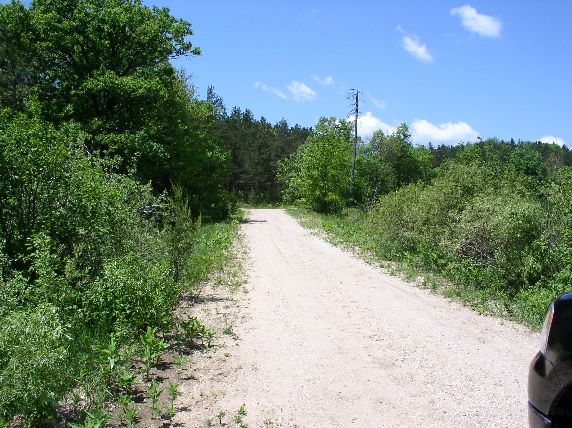

Road Approach - Left

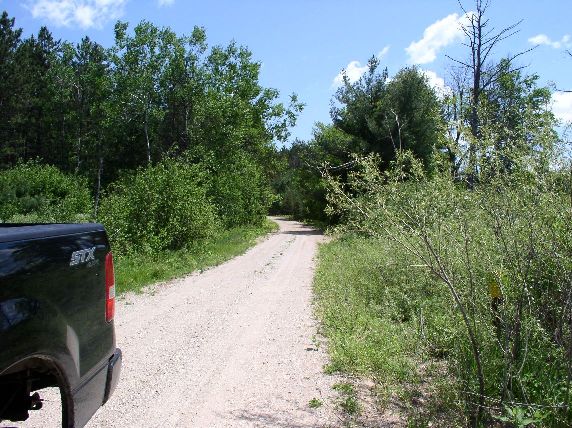

Road Approach - Right
Crossing Information
Road Width at Culvert: 16 ft.
Road Surface: Sand
Gravel
Maintenance: seasonal
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? yes
Are there adjacent wetlands? yes
Comments: Believe this is just a cross-drain, but it does need replacing
Approaches
Left Approach
Length: 400 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 300 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 38 ft.
Diameter: 24 ft.
Material: galvanized
Condition :poor
Flow: fish passage problem
Embankments
Upstream
Fill Depth: 2 ft.
Embankment Slope: >2:1
Downstream
Fill Depth: 2 ft.
Embankment Slope: >2:1
Stream Information
Upstream
Stream Width: 100 ft.
Stream Depth: 2 in.
Stream Current: none
Stream Substrate: muck
Downstream
Stream Width: 100 ft.
Stream Depth: 0.5 in.
Stream Current: none
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Other Conditions: culvert is submerged, possibly blocked

Extent of Erosion: moderate
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 3
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap, revegetation

Severity:Moderate
