Road Stream Crossing Site P112

Pine River Watershed, Tributary to Silver Creek
USFS Rd 5180
Dover Twp, Lake County
Information collected by:
GPS Coordinates: 44.13266918 , -85.65454175
T20N R11W Sec 17
Adjacent Land Owned by Federal
Severity: Moderate
Cost: $5,000.00
Site Location

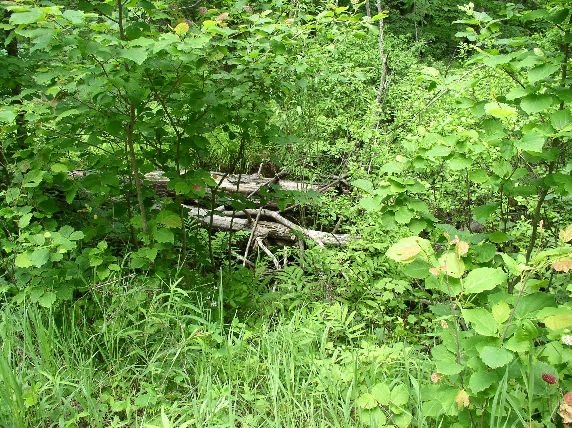

Inlet

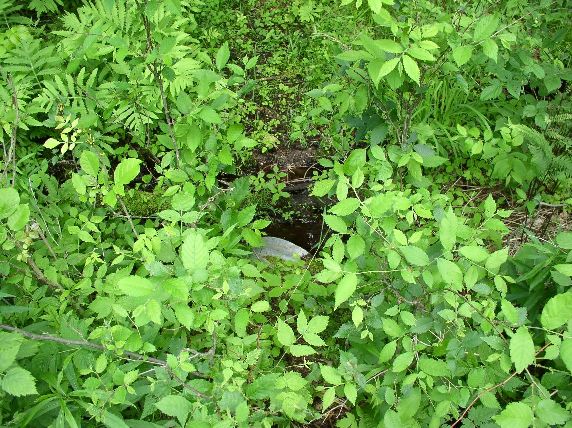

Outlet

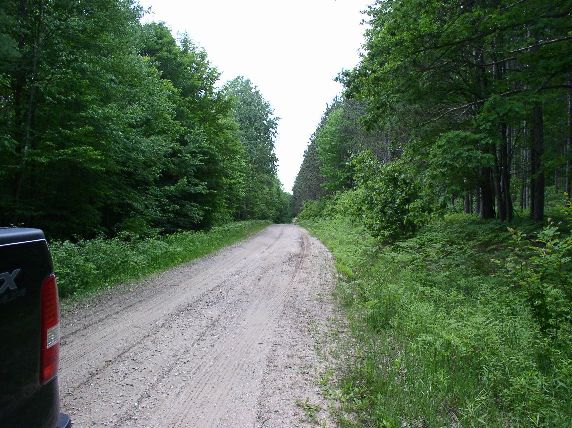

Road Approach - Left

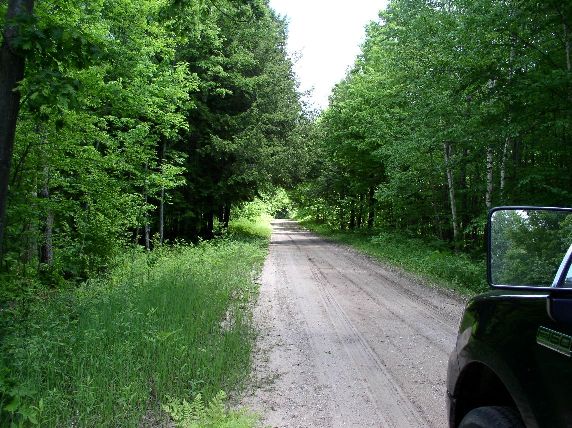

Road Approach - Right
Crossing Information
Road Width at Culvert: 12 ft.
Road Surface: Sand
Gravel
Maintenance: seasonal
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 350 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 300 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 30 ft.
Diameter: 12 ft.
Material: galvanized
Condition :fair
Flow: fish passage problem
Embankments
Upstream
Fill Depth: 3 ft.
Embankment Slope: 2:1
Downstream
Fill Depth: 3 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 100 ft.
Stream Depth: 1 in.
Stream Current: none
Stream Substrate: muck
Downstream
Stream Width: 1 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 1
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: remove beaver dam if flooding is a problem

Severity:Moderate
This page last updated on 2/9/2022.
