Road Stream Crossing Site P144
Pine River Watershed, Tributary to Pine River
No 48 1/2 Rd
Cherry Grove Twp,
Wexford County
Information collected by:
GPS Coordinates: 44.18685573
, -85.47864382
T21N
R10W
Sec 26
Adjacent Land Owned by Private
Severity: Moderate
Cost: $800.00
Site Location
Inlet

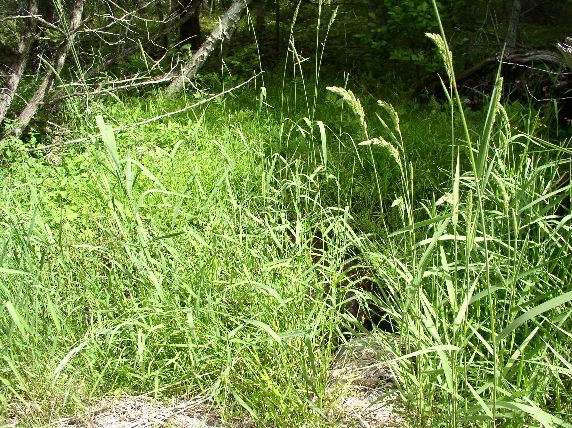

Outlet

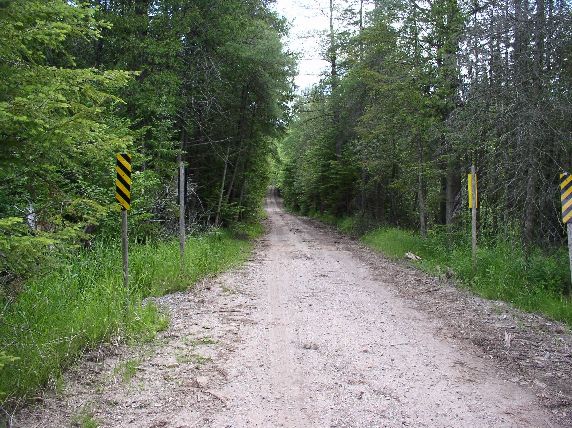

Road Approach - Left

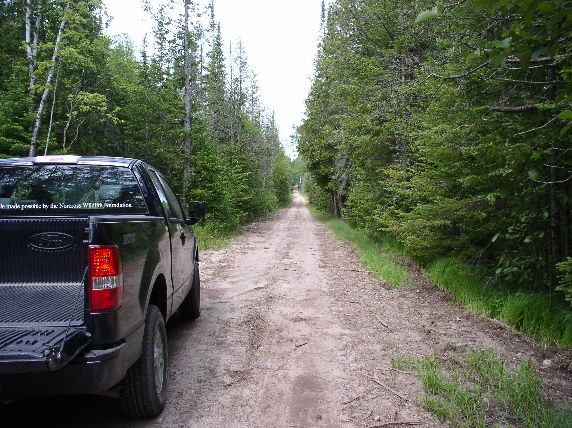

Road Approach - Right
Crossing Information
Road Width at Culvert: 12 ft.
Road Surface: Sand
Maintenance: seasonal
Low Point: Other
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Comments: upstream is mainly groundwater seeps
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 700 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 26 ft.
Diameter: 16 ft.
Material: galvanized
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 2.5 ft.
Embankment Slope: 1.5:1
Downstream
Fill Depth: 2.5 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 0.5 ft.
Stream Depth: 0.5 in.
Stream Current: moderate
Stream Substrate: muck
Downstream
Stream Width: 0.5 ft.
Stream Depth: 0.5 in.
Stream Current: moderate
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no
Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap
Severity:Moderate
This page last updated on 2/9/2022.
