Road Stream Crossing Site P149

Pine River Watershed, Tributary to Spaulding Creek

No 33 Rd

Cherry Grove Twp, Wexford County

GPS Coordinates: 44.1666875 , -85.49641618

T21N R10W Sec 34

Road Width at Culvert: 28 ft.

Road Surface: Paved

Maintenance: year around

Low Point: Other

Existing Drainage Control? no

Any Failings? no

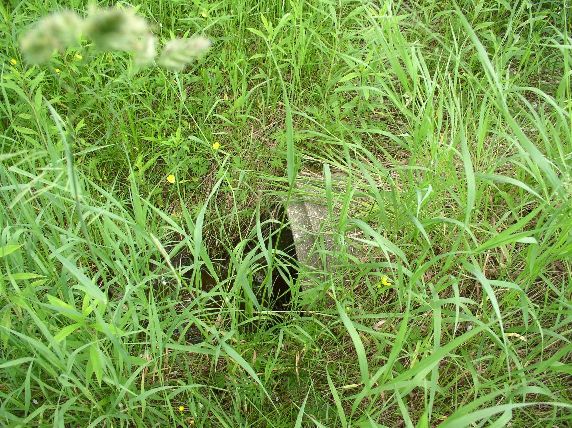

Type of Crossing: culvert(s) (single culvert)

Is this crossing constricted? no

Are there adjacent wetlands? no

Length: 0 ft.

Slope: 0%

Vegetation: heavy

Length: 100 ft.

Slope: 1-5%

Vegetation: heavy

Length: 65 ft.

Diameter: 12 ft.

Material: concrete

Condition :fair

Flow: clear

Fill Depth: 5 ft.

Embankment Slope: 2:1

Fill Depth: 5 ft.

Embankment Slope: 2:1

Stream Width: 0.5 ft.

Stream Depth: 0.5 in.

Stream Current: none

Stream Substrate: muck

Stream Width: 0.5 ft.

Stream Depth: 0.5 in.

Stream Current: none

Stream Substrate: sand

Is there Streambank erosion beside the crossing? no

Is there embankment erosion? no

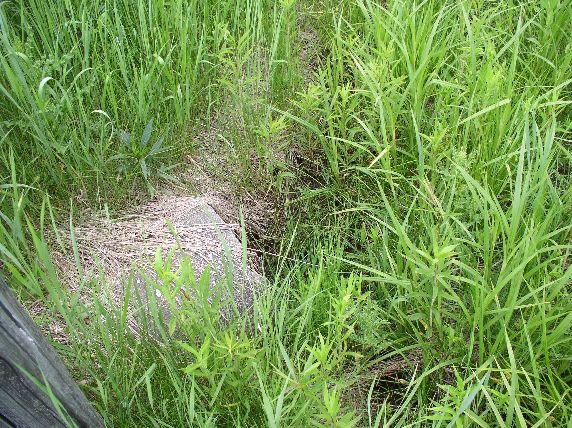

Is there erosion at the culvert outlet? no

Is there erosion at the shoulder and/or ditch? no

Is there pooling at the outlet? no

Is there sand over the crossing? yes



Extent of Erosion: minor

Action Recommended? yes

Add pavement? no

Add paved raised edge? no

Number of erosion control structures: 0

Number of sediment basins: 0

Number of diversion outlets: 0

Increase fill? no

Replace culvert(s)? no

Dimensions of replacement: 0

Extend culvert(s)? no

Lineal feet to extend: 0
