Road Stream Crossing Site P161

Pine River Watershed, Tributary to Dowling Creek
No 17 Rd
Henderson Twp, Wexford County
Information collected by:
GPS Coordinates: 44.18913241 , -85.65824408
T21N R11W Sec 28
Adjacent Land Owned by Private
Federal
Severity: Moderate
Cost: $44,800.00
Site Location

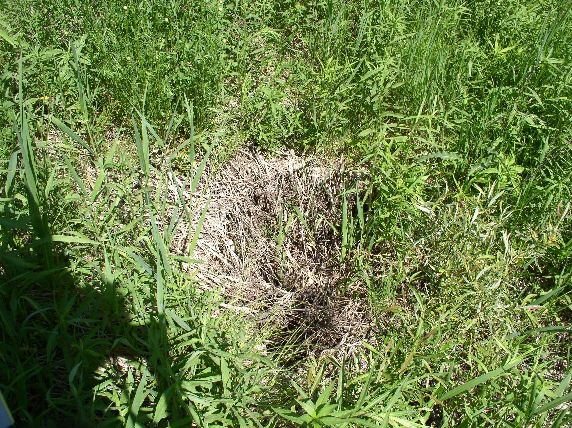

Inlet

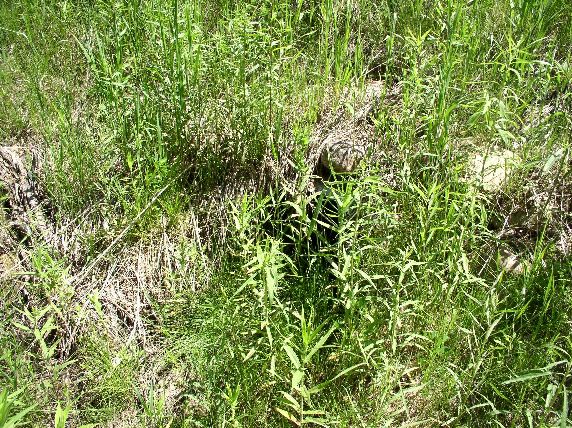

Outlet

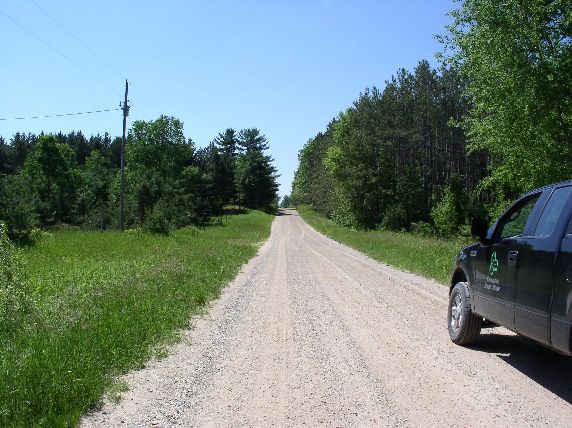

Road Approach - Left

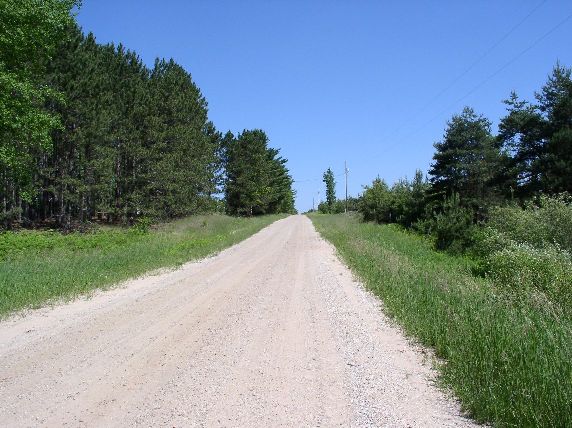

Road Approach - Right
Crossing Information
Road Width at Culvert: 18 ft.
Road Surface: Sand
Gravel
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Approaches
Left Approach
Length: 600 ft.
Slope: 6-10%
Vegetation: heavy
Right Approach
Length: 650 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 50 ft.
Diameter: 24 ft.
Material: galvanized
Condition :fair
Flow: fish passage problem
Embankments
Upstream
Fill Depth: 4 ft.
Embankment Slope: 2:1
Downstream
Fill Depth: 4 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Stream Substrate: muck
Downstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? yes

Extent of Erosion: moderate
Recommended Treatments
Action Recommended? no
Add pavement? yes
Add paved raised edge? yes
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 1
Extend culvert(s)? no
Lineal feet to extend: 0

Severity:Moderate
This page last updated on 2/9/2022.
