Road Stream Crossing Site P177
Pine River Watershed, Pine River
M-37
Crossing: Peterson Bridge
South Branch Twp,
Wexford County
Information collected by:
GPS Coordinates: 44.20421408
, -85.80111063
T21N
R12W
Sec 19
Adjacent Land Owned by Federal
Severity: Moderate
Cost: $4,000.00
Site Location

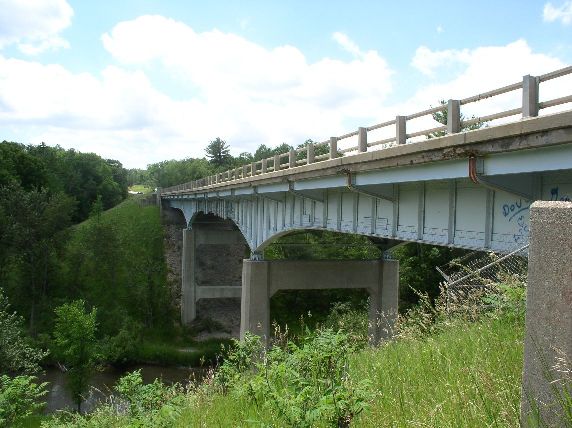

Inlet

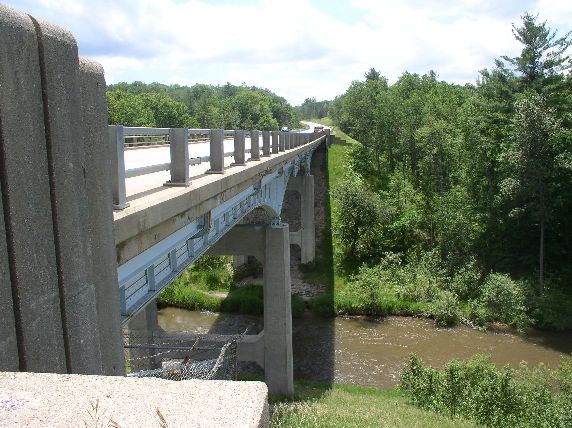

Outlet

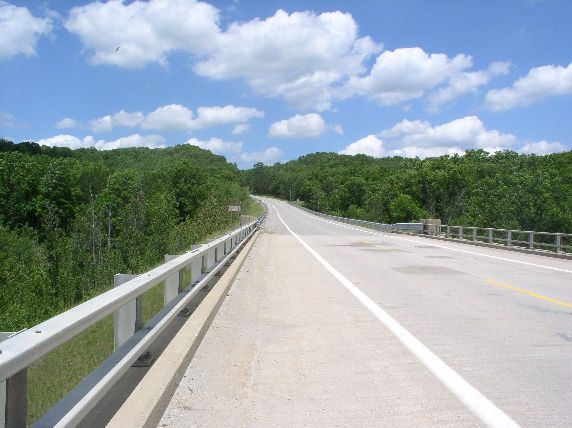

Road Approach - Left

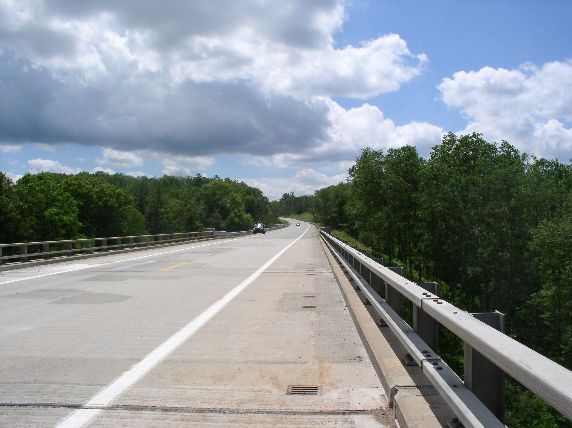

Road Approach - Right
Crossing Information
Road Width at Culvert: 37 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: Bridge
Is this crossing constricted? no
Are there adjacent wetlands? no
Approaches
Left Approach
Length: 2700 ft.
Slope: 6-10%
Vegetation: partial
Right Approach
Length: 2700 ft.
Slope: 6-10%
Vegetation: partial
Culvert Information
Length: n/a ft.
Diameter: n/a ft.
Material: n/a
Condition :n/a
Embankments
Upstream
Fill Depth: 0 ft.
Downstream
Fill Depth: 0 ft.
Stream Information
Upstream
Stream Width: 58 ft.
Stream Depth: 5 in.
Stream Current: fast
Stream Substrate: sand,gravel
Downstream
Stream Width: 60 ft.
Stream Depth: 4 in.
Stream Current: fast
Stream Substrate: sand,gravel
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? yes
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? yes
Extent of Erosion: moderate
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap, revegetation
Severity:Moderate
This page last updated on 2/9/2022.
