Road Stream Crossing Site P129
Pine River Watershed, Tributary to Pine River
3 Mile Rd
Ellsworth Twp,
Osceola County
Information collected by:
GPS Coordinates: 44.0312306
, -85.601743
T19N
R11W
Sec 25
Adjacent Land Owned by Private
Severity: Moderate
Cost: $6,200.00
Site Location

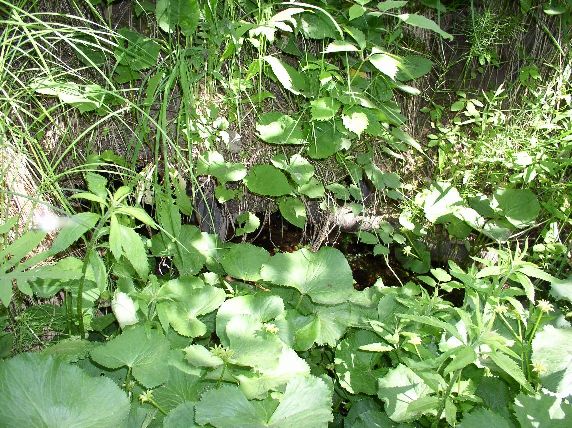

Inlet

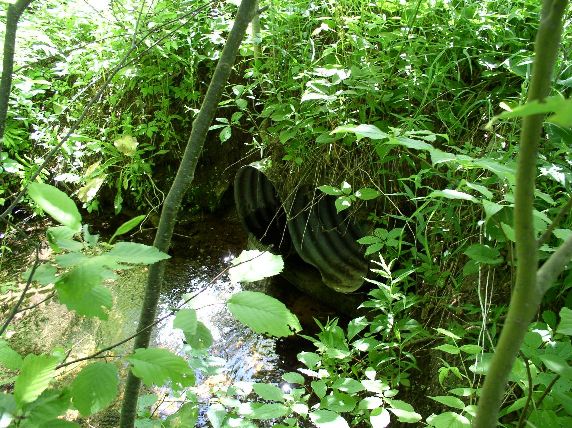

Outlet

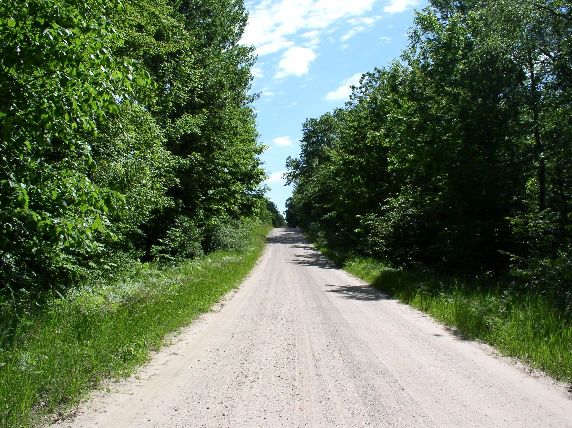

Road Approach - Left

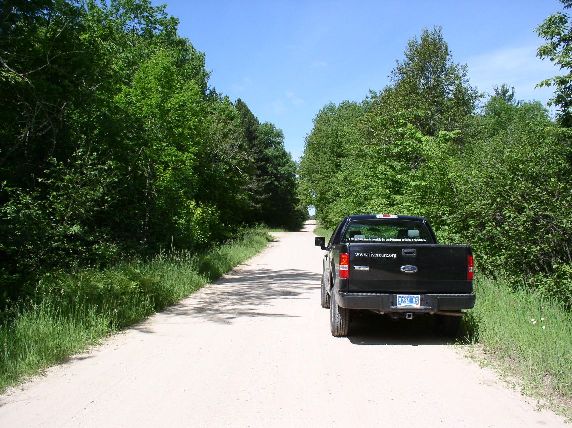

Road Approach - Right
Crossing Information
Road Width at Culvert: 16 ft.
Road Surface: Sand
Gravel
Gravel
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(twin culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Approaches
Left Approach
Length: 800 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 450 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 26 ft.
Diameter: 30 ft.
Material: galvanized
Condition :fair
Flow: fish passage problem
Embankments
Upstream
Fill Depth: 3 ft.
Embankment Slope: vertical
Downstream
Fill Depth: 3 ft.
Embankment Slope: vertical
Stream Information
Upstream
Stream Width: 2 ft.
Stream Depth: 0.5 in.
Stream Current: moderate
Stream Substrate: sand,gravel
Downstream
Stream Width: 3 ft.
Stream Depth: 0.5 in.
Stream Current: moderate
Stream Substrate: sand,gravel
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? yes
Is there sand over the crossing? no
Extent of Erosion: moderate
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 1
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap
Severity:Moderate
