Road Stream Crossing Site P130

Pine River Watershed, Tributary to Pine River
State Rd
Dover Twp, Lake County
Information collected by:
GPS Coordinates: 44.20853016 , -85.43452657
T20N R10W Sec 7
Adjacent Land Owned by Private
Severity: Moderate
Cost: $21,900.00
Site Location

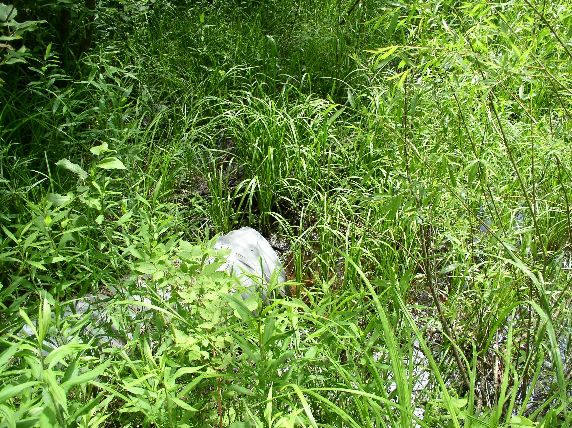

Inlet

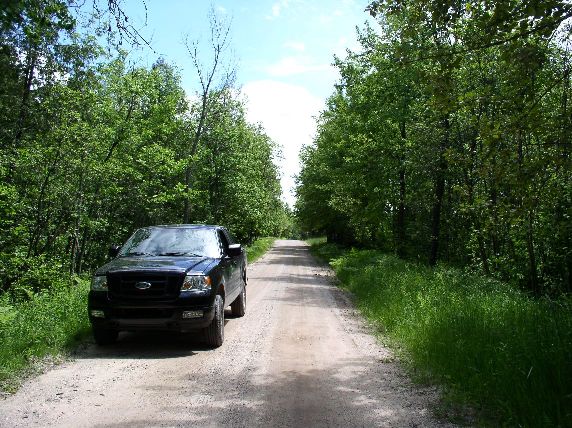

Road Approach - Left

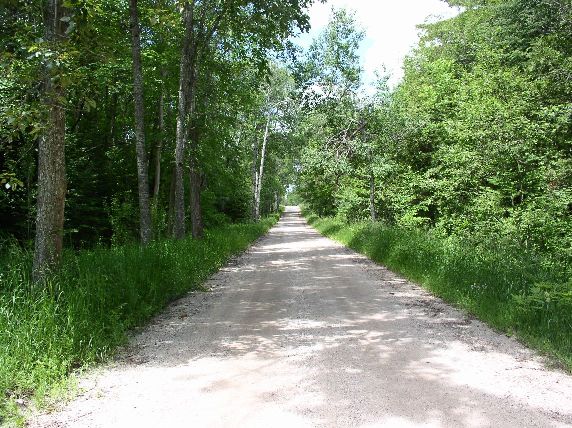

Road Approach - Right
Crossing Information
Road Width at Culvert: 22 ft.
Road Surface: Paved
Maintenance: year around
Low Point: Other
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Right Approach
Length: 500 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 55 ft.
Diameter: 24 ft.
Material: galvanized
Condition :poor
Flow: obstructed
Embankments
Upstream
Fill Depth: 4 ft.
Embankment Slope: 2:1
Downstream
Fill Depth: 4 ft.
Embankment Slope: 1.5:1
Stream Information
Upstream
Stream Width: 1 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Downstream
Stream Width: 1 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: extreme
Cause of Erosion: water flowing around culvert and under road
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 1
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: place rock riprap, revegetation

Severity:Moderate
