Road Stream Crossing Site P137

Pine River Watershed, pond outlet to Pine River
No 37 Rd
Cherry Grove Twp, Wexford County
Information collected by:
GPS Coordinates: 44.20830889 , -85.45652261
T21N R09W Sec 18
Adjacent Land Owned by Private
Severity: Minor
Cost: $0.00
Site Location

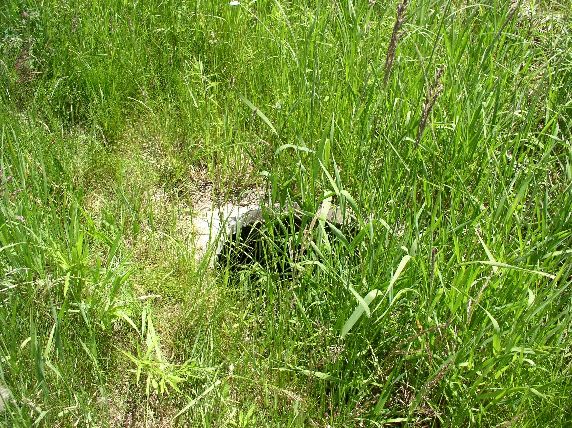

Inlet

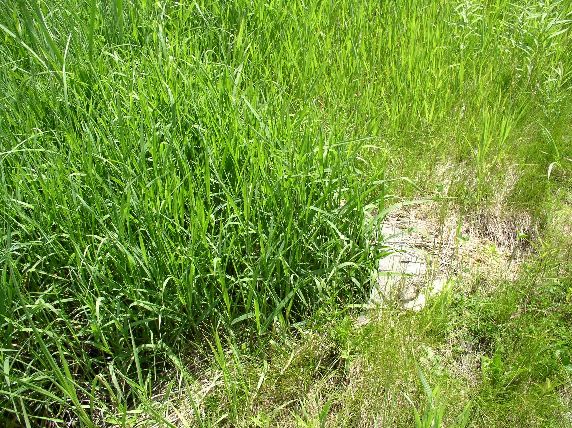

Outlet

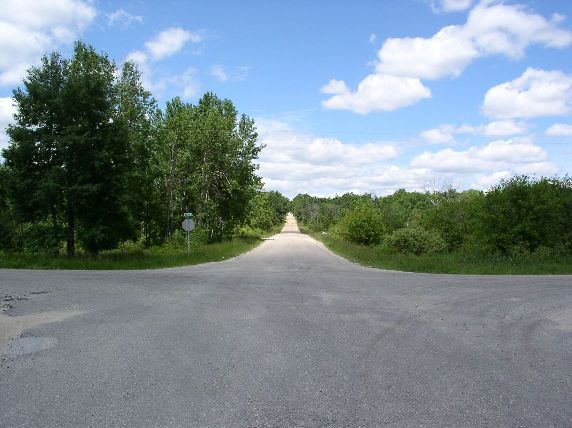

Road Approach - Left

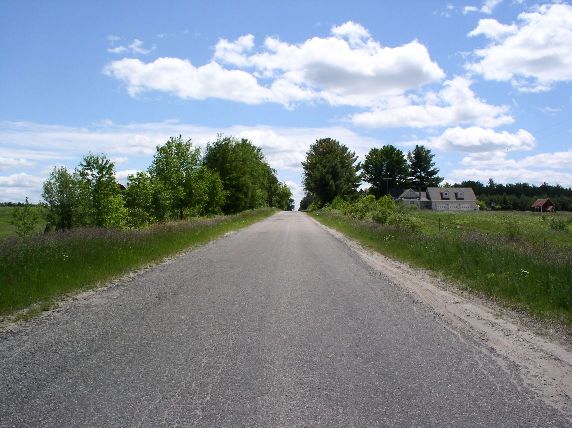

Road Approach - Right
Crossing Information
Road Width at Culvert: 24 ft.
Road Surface: Paved
Maintenance: year around
Low Point: Other
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Comments: stream bed is dry
Approaches
Left Approach
Length: 450 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 0 ft.
Slope: 0%
Vegetation: heavy
Culvert Information
Length: 65 ft.
Diameter: 36x24" ft.
Material: concrete
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 3.5 ft.
Embankment Slope: 2:1
Downstream
Fill Depth: 3 ft.
Embankment Slope: >2:1
Stream Information
Upstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Stream Substrate: muck
Downstream
Stream Width: 0 ft.
Stream Depth: 0 in.
Stream Current: none
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0

Severity:Minor
This page last updated on 2/9/2022.
