Road Stream Crossing Site P138

Pine River Watershed, pond outlet to Pine River
No 46 Rd
Cherry Grove Twp, Wexford County
Information collected by:
GPS Coordinates: 44.20859724 , -85.45611953
T21N R09W Sec 19
Adjacent Land Owned by Private
Severity: Minor
Cost: $0.00
Site Location

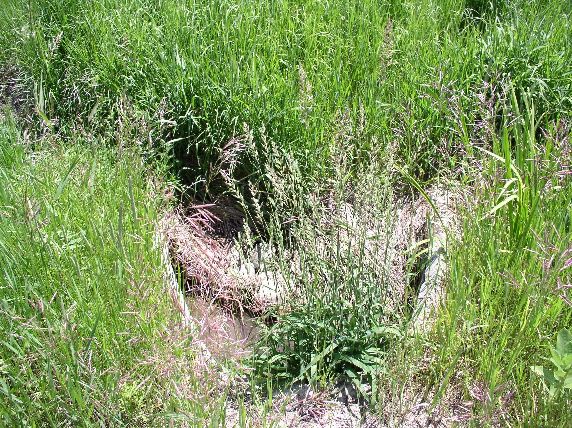

Inlet

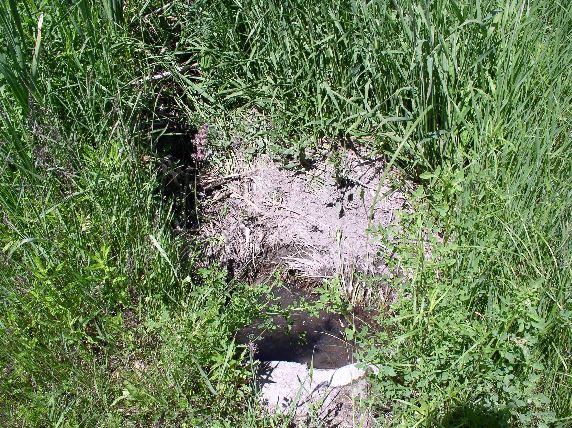

Outlet

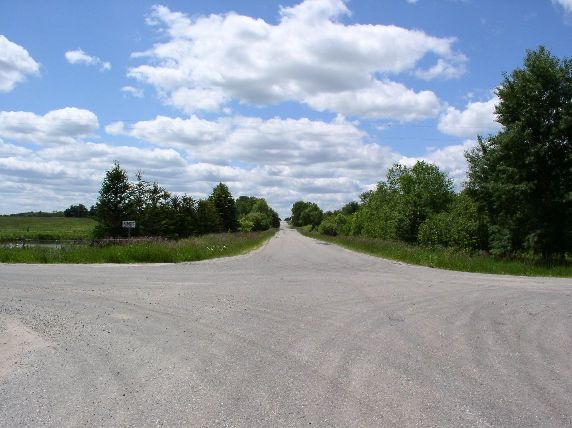

Road Approach - Left

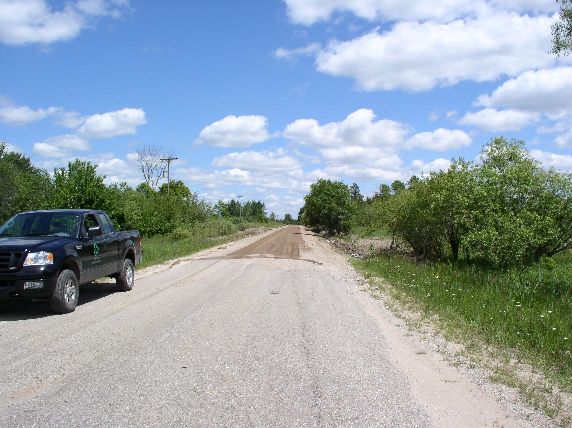

Road Approach - Right
Crossing Information
Road Width at Culvert: 24 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? yes
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Length: 250 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 650 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 65 ft.
Diameter: 36x30" ft.
Material: concrete
Condition :good
Flow: clear
Embankments
Upstream
Fill Depth: 3 ft.
Embankment Slope: >2:1
Downstream
Fill Depth: 4 ft.
Embankment Slope: >2:1
Stream Information
Upstream
Stream Width: 0.5 ft.
Stream Depth: 0 in.
Stream Current: slow
Stream Substrate: muck
Downstream
Stream Width: 0.5 ft.
Stream Depth: 0 in.
Stream Current: none
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? yes

Extent of Erosion: minor
Recommended Treatments
Action Recommended? yes
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 0
Extend culvert(s)? no
Lineal feet to extend: 0

Severity:Minor
