Road Stream Crossing Site P139
Pine River Watershed, pond outlet to Pine River
No 46 Rd
Cherry Grove Twp,
Wexford County
Information collected by:
GPS Coordinates: 44.20860391
, -85.45786787
T21N
R10W
Sec 13
Adjacent Land Owned by Private
Severity: Moderate
Cost: $5,500.00
Site Location

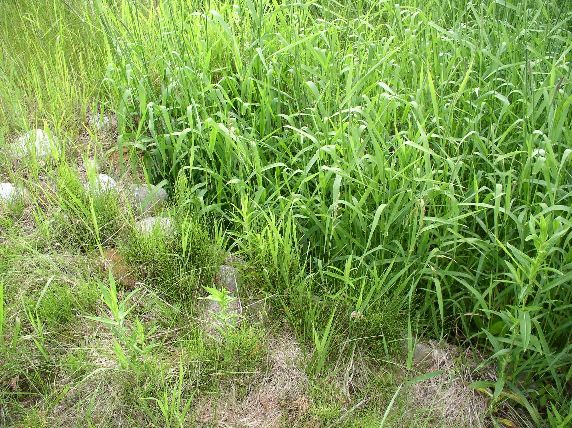

Inlet

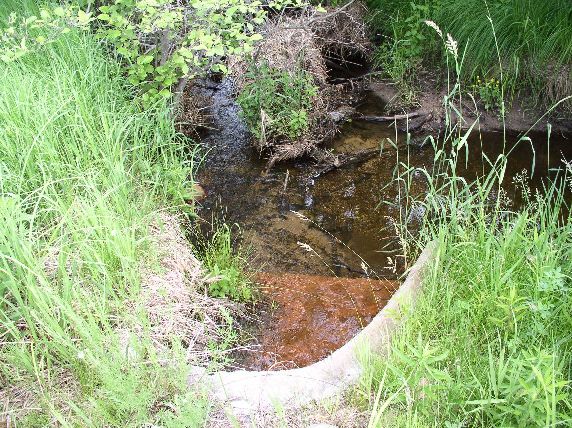

Outlet

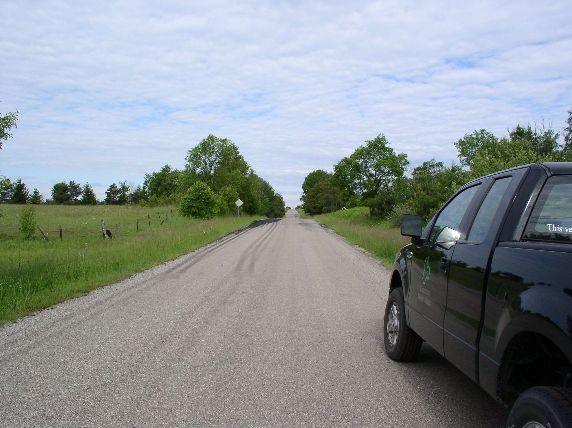

Road Approach - Left

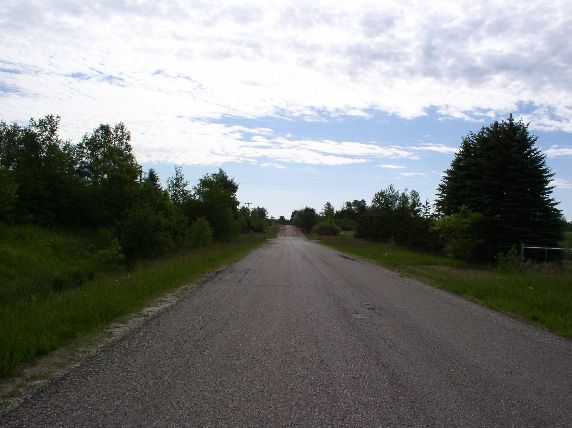

Road Approach - Right
Crossing Information
Road Width at Culvert: 22 ft.
Road Surface: Paved
Maintenance: year around
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? no
Approaches
Left Approach
Length: 350 ft.
Slope: 1-5%
Vegetation: heavy
Right Approach
Length: 800 ft.
Slope: 1-5%
Vegetation: heavy
Culvert Information
Length: 55 ft.
Diameter: 36 ft.
Material: concrete
Condition :good
Flow: fish passage problem
Embankments
Upstream
Fill Depth: 5 ft.
Embankment Slope: 2:1
Downstream
Fill Depth: 5 ft.
Embankment Slope: 2:1
Stream Information
Upstream
Stream Width: 1 ft.
Stream Depth: 0.5 in.
Stream Current: slow
Stream Substrate: muck
Downstream
Stream Width: 6 ft.
Stream Depth: 1 in.
Stream Current: moderate
Stream Substrate: sand,gravel
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? yes
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no
Extent of Erosion: minor
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Number of erosion control structures: 0
Number of sediment basins: 0
Number of diversion outlets: 0
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 1
Extend culvert(s)? no
Lineal feet to extend: 0
Other Treatments: replace or lower existing culvert
Comments: perched culvert outlet
Severity:Moderate
