Road Stream Crossing Site S454
Boardman River Watershed, Jaxon Creek
Blair Townhall Rd
Crossing: Blair Townhall Road / Jaxon Creek
Paradise Twp,
Grand Traverse County
Information collected by:
GPS Coordinates: 44.62806
, -85.56837
T26N
R10W
Sec 19, 30
Adjacent Land Owned by Private
State
State
Severity: Severe
Site Location
Crossing Information

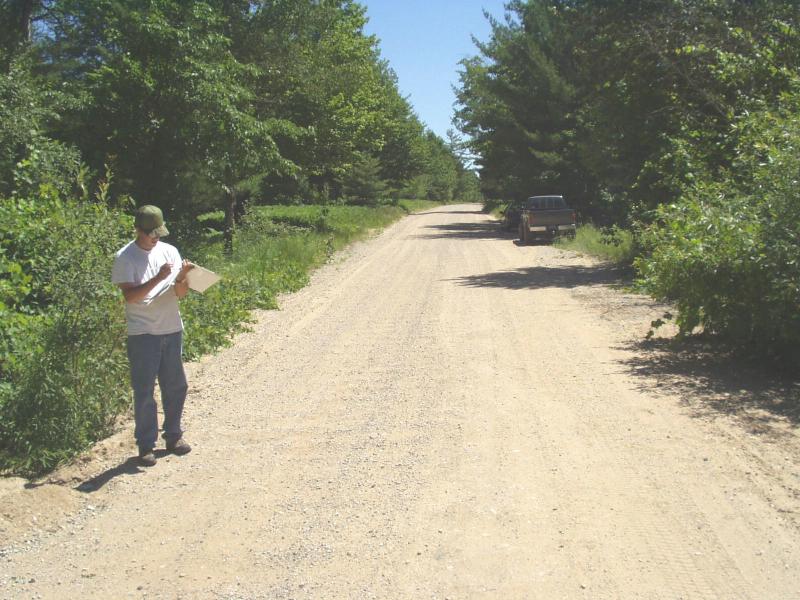

Road Width at Culvert: 15 ft.
Road Surface: Gravel
Maintenance: seasonal
Low Point: At Stream
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s)
(single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes

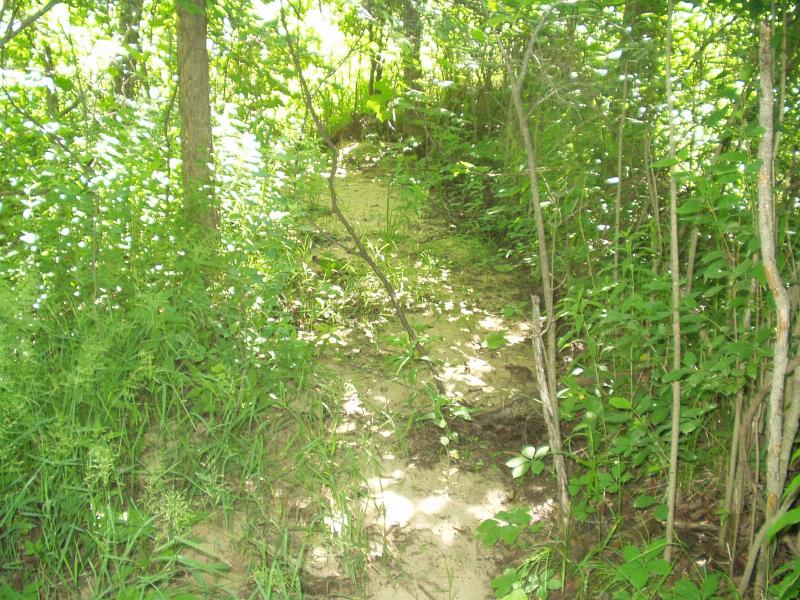

Comments: Outlet is buried under washout, streambed is dry due to upstream beaver activity.
Approaches
Left Approach
Slope: 0%
Vegetation: heavy
Right Approach
Slope: 0%
Vegetation: heavy

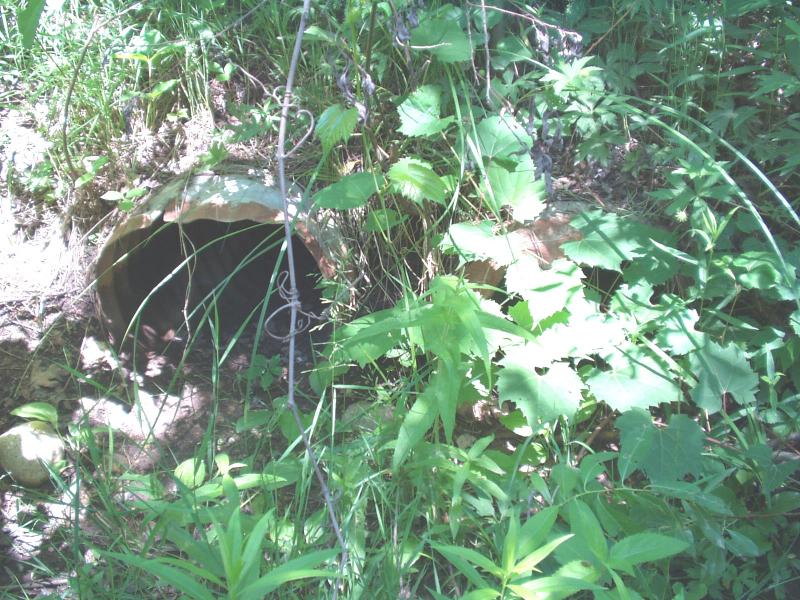

Culvert Information
Shape: round
Diameter: 1.5 ft diameter ft.
Material: galvanized
Condition :poor
Flow: obstructed
Embankments
Upstream
Fill Depth: 1 ft.
Embankment Slope: >2:1 slope
Downstream
Stream Information
Upstream
Stream Current: none
Stream Substrate: muck
Downstream
Stream Current: none
Stream Substrate: sand,gravel
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no

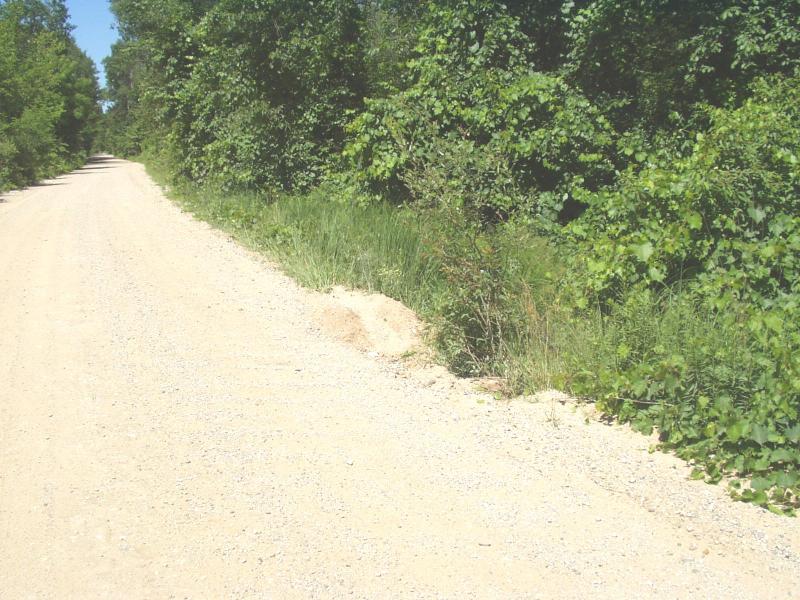

Is there embankment erosion? yes
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? yes
Is there pooling at the outlet? no
Is there sand over the crossing? no
Extent of Erosion: severe
Recommended Treatments
Action Recommended? yes
Add pavement? yes
Pave Left Approach: 50 Lineal Feet
Pave Right Approach: 50 Lineal Feet
Add paved raised edge? yes
Increase fill? no
Replace culvert(s)? no
Dimensions of replacement: 3 ft diameter, 24 feet long, round, galvanized
Extend culvert(s)? no
Other Treatments: Revegetation
Comments: Beaver activity upstream has diverted the flow of Jaxon Creek away from this site. Further investigations will take place in this matter. Currently this is an intermittent stream with evidence of recent flows (spring). Sand is storing in the channel fr
Severity:Severe
This page last updated on 2/9/2022.
