Road Stream Crossing Site S361

Boardman River Watershed, Shannon Creek
Railroad
Boardman Twp, Kalkaska County
Information collected by:
Grand Travese Conservation District
GPS Coordinates: 44.64591 , -85.27513
T26N R08W Sec 16
Adjacent Land Owned by Private
Severity: Restored
Site Location

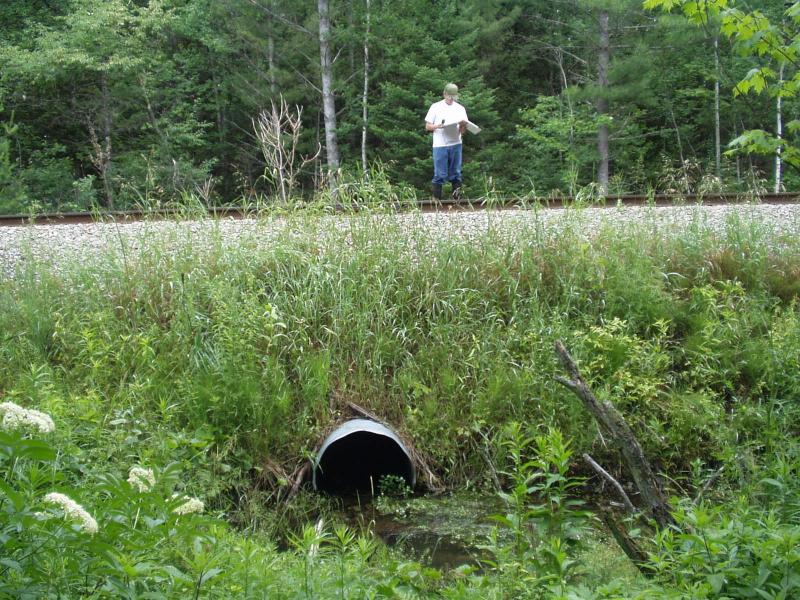

Inlet

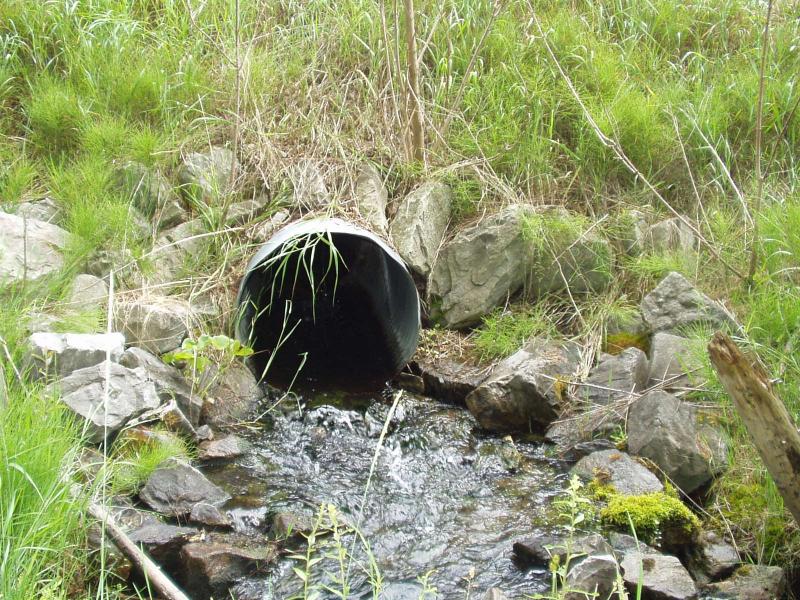

Outlet
Crossing Information
Existing Drainage Control? no
Any Failings? no
Type of Crossing: culvert(s) (single culvert)
Is this crossing constricted? no
Are there adjacent wetlands? yes
Approaches
Left Approach
Right Approach
Culvert Information
Shape: round
Diameter: 2.5 ft diameter ft.
Material: galvanized
Embankments
Upstream
Downstream
Stream Information
Upstream
Stream Substrate: muck
Downstream
Stream Substrate: muck
Erosion Information
Conditions
Is there Streambank erosion beside the crossing? no
Is there embankment erosion? no
Is there erosion at the culvert outlet? no
Is there erosion at the shoulder and/or ditch? no
Is there pooling at the outlet? no
Is there sand over the crossing? no

Extent of Erosion: none
Recommended Treatments
Action Recommended? no
Add pavement? no
Add paved raised edge? no
Increase fill? no
Replace culvert(s)? no
Extend culvert(s)? no
Comments: Site looks good. Railroad placed large rock on downstream side to lift grade. Periodic checkup for prevention of perched condition.

Severity:Restored
This page last updated on 2/9/2022.
