Road Stream Crossing Site S750

Boardman River Watershed, Jackson Creek

Gleaner Hall Rd

Crossing: Gleaner Hall Road / Jackson Creek

Paradise Twp, Grand Traverse County

GPS Coordinates: 44.55563 , -85.47504

T25N R10W Sec 13, 24

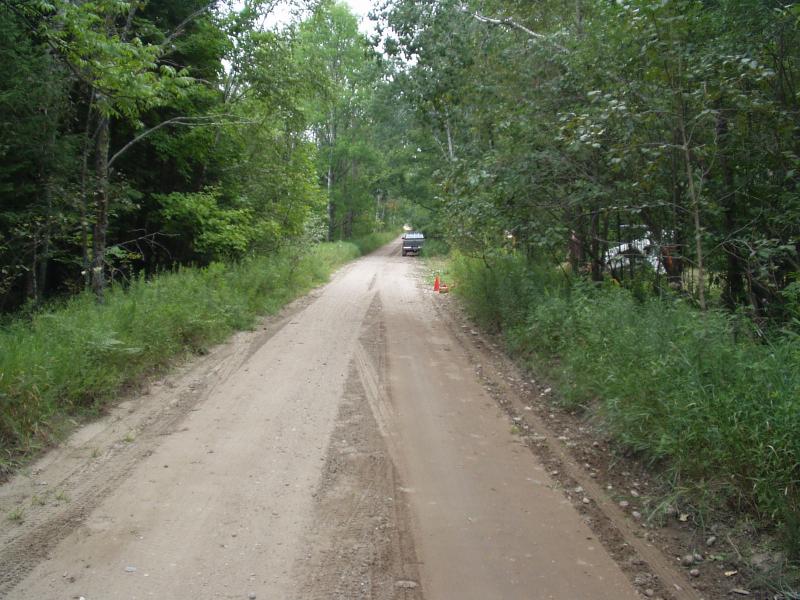

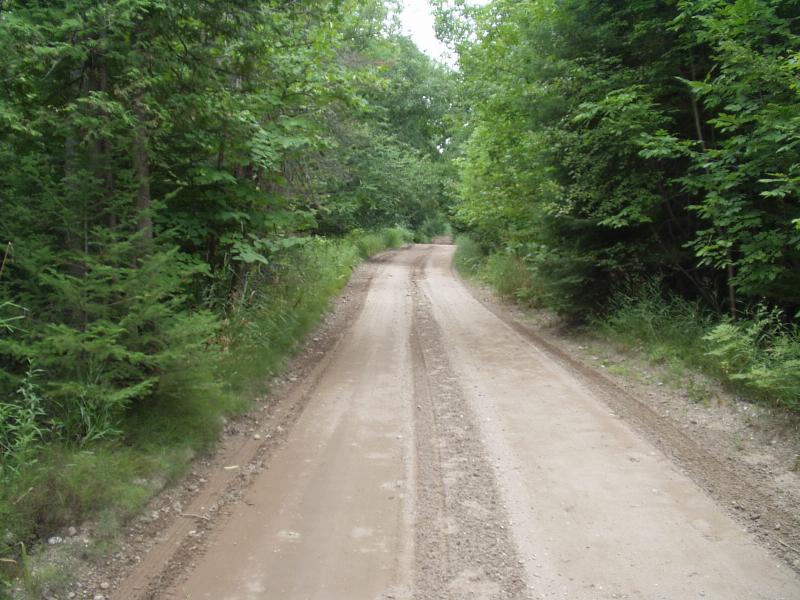

Road Width at Culvert: 17 ft.

Road Surface: Sand
Gravel

Maintenance: seasonal

Existing Drainage Control? no

Any Failings? no

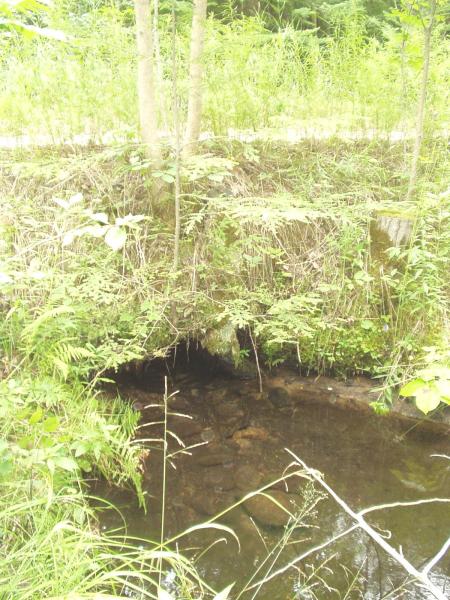

Type of Crossing: culvert(s) (single culvert)

Is this crossing constricted? yes

Are there adjacent wetlands? yes

Slope: 1-5%

Vegetation: heavy

Slope: 1-5%

Vegetation: heavy

Shape: round

Length: 26 ft.

Diameter: 1.5 ft diameter ft.

Material: galvanized

Condition :poor

Flow: clear

Fill Depth: 2.5 ft.

Embankment Slope: 1:1 slope

Fill Depth: 2.5 ft.

Embankment Slope: vertical

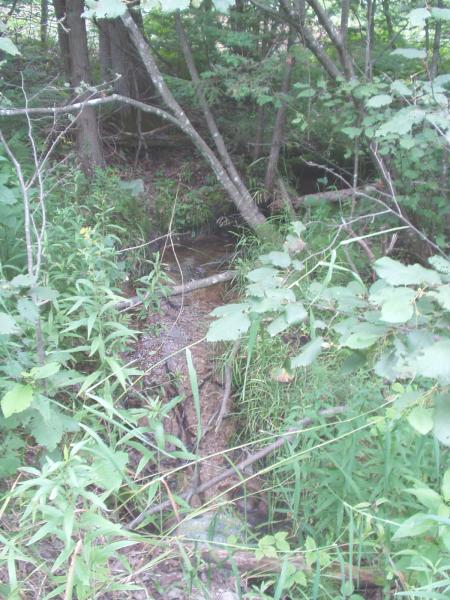

Stream Width: 2 ft.

Stream Depth: 2 in.

Stream Current: moderate

Stream Substrate: gravel

Stream Width: 2 ft.

Stream Depth: 2 in.

Stream Current: moderate

Stream Substrate: gravel

Is there Streambank erosion beside the crossing? no

Is there embankment erosion? yes

Is there erosion at the culvert outlet? no

Is there erosion at the shoulder and/or ditch? yes

Is there pooling at the outlet? yes

Is there sand over the crossing? no



Extent of Erosion: severe

Cause of Erosion: undersized culvert, storm runoff

Action Recommended? yes

Add pavement? no

Add paved raised edge? no

Increase fill? no

Replace culvert(s)? no

Dimensions of replacement: 3 ft diameter, 40 feet long, round, galvanized

Extend culvert(s)? no

Other Treatments: Rock rip rap, revegetation, bank sloping

Comments: Culvert not visible at outlet.
