Road Stream Crossing Site S846

Boardman River Watershed, Kids Creek Tributary AA

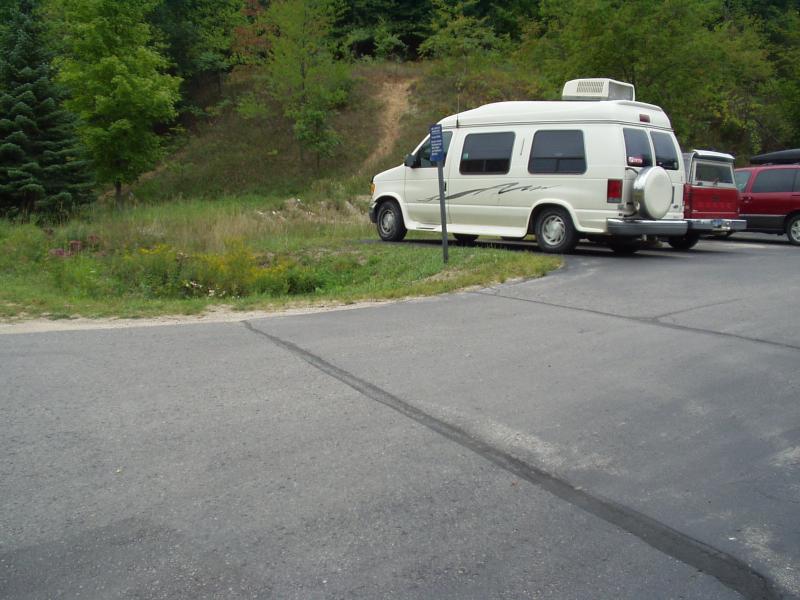

Parking Lot K

Traverse City, Grand Traverse County

GPS Coordinates: 44.75735 , -85.64494

T27N R11W Sec 9

Road Width at Culvert: 18 ft.

Road Surface: Paved

Maintenance: year around

Low Point: At Red Drive

Existing Drainage Control? no

Any Failings? no

Type of Crossing: culvert(s) (single culvert)

Is this crossing constricted? yes

Are there adjacent wetlands? yes

Comments: Causes upstream flooding

Vegetation: partial

Vegetation: partial

Shape: round

Length: 40 ft.

Diameter: 2 ft diameter ft.

Material: galvanized

Condition :fair

Flow: obstructed

Fill Depth: 2 ft.

Embankment Slope: >2:1 slope

Fill Depth: 2 ft.

Embankment Slope: >2:1 slope

Stream Width: 1.5 ft.

Stream Depth: 6 in.

Stream Current: fast

Stream Substrate: gravel

Stream Width: 1.5 ft.

Stream Depth: 6 in.

Stream Current: fast

Stream Substrate: sand,gravel

Is there Streambank erosion beside the crossing? no

Is there embankment erosion? yes

Is there erosion at the culvert outlet? no

Is there erosion at the shoulder and/or ditch? yes

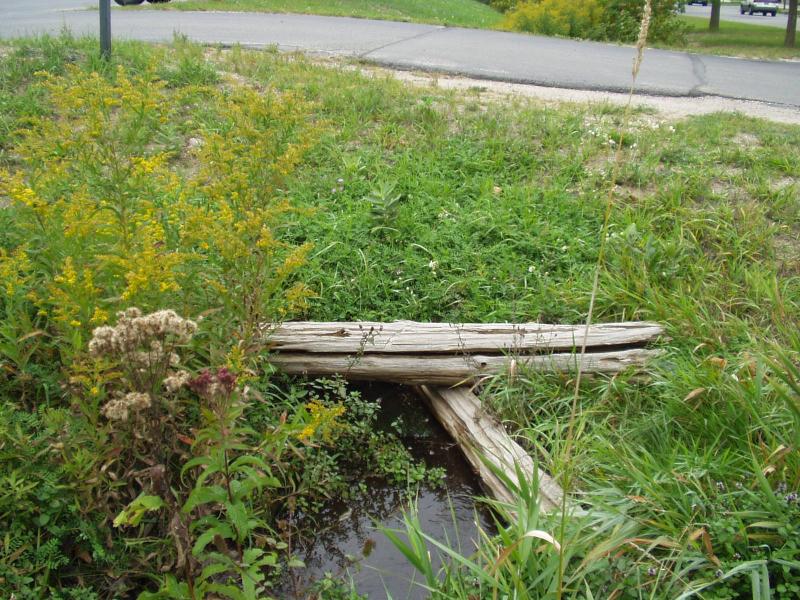

Is there pooling at the outlet? yes

Is there sand over the crossing? no



Extent of Erosion: minor

Cause of Erosion: flooding, snow removal

Action Recommended? yes

Add pavement? no

Add paved raised edge? no

Increase fill? no

Replace culvert(s)? no

Dimensions of replacement: round, galvanized, 4 ft diameter, 40 feet long

Extend culvert(s)? no

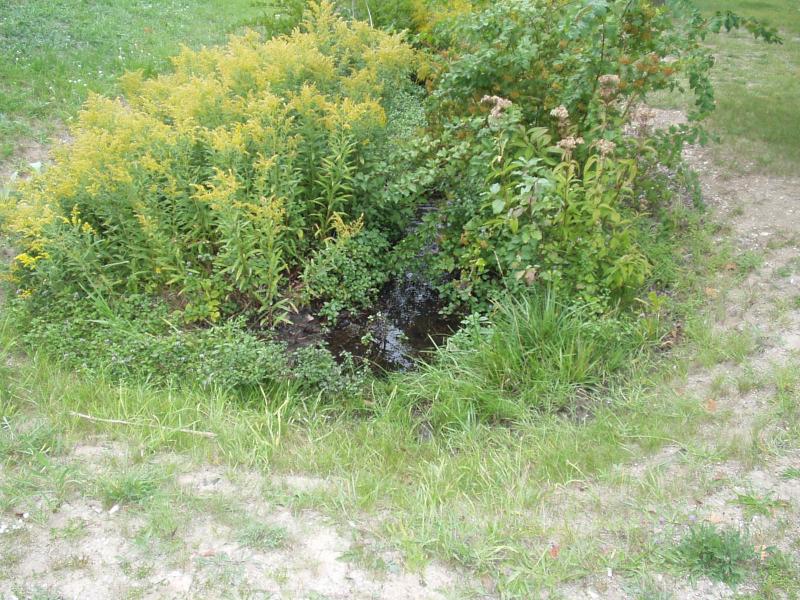

Comments: Culvert is completely buried.

Parking Lot K is behind G.T. Pavilions off of Red Drive.
